    Multi functional Small Size Stainless Steel Industrial Single Inflated Pillow Plate For Immersed Cooling

    Ask Lasest Price
    Brand Name : Peony
    Model Number : 316l Pillow Plate
    Certification : CE/ISO etc.
    Price : USD100-3000/m2 FOB SHANGHAI
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 sets/month
    Delivery Time : 45-60 working days after down payment
    • Product Details
    • Company Profile

    Multi functional Small Size Stainless Steel Industrial Single Inflated Pillow Plate For Immersed Cooling

    Product Description
    Multi functional Small Size Stainless Steel Industrial Single Inflated Pillow Plate For Immersed Cooling
    Support for customized pillow plate
    Pillow plate, also known as extruded plate or jacketed plate, is a heat exchange device consisting of two layers of sheet metal. The spaces between such plates are usually filled or injected with fluid for heat transfer.
    1. Because of its unique massive surface area design, it is able to transfer heat efficiently, which reduces production costs.
    2. Pillow plate adopts a compact structure and occupies less space back, which enables it to realize a larger heat transfer area in a limited space and improve the efficiency of the equipment.
    3.Pillow plate can be customized according to the application requirements, with a wide range of applications, including food processing, chemical, pharmaceutical and other fields.
    4. The material is high-quality metal, good corrosion resistance and pressure resistance, long service life, low maintenance and replacement costs.
    Overall, the economic benefits of the Pillow plate are mainly reflected in its efficient heat transfer, compact design,
    flexibility, durability and easy cleaning and maintenance. These advantages reduce production costs, improve productivity and increase the reliability and service life of the equipment.
    Multi functional Small Size Stainless Steel Industrial Single Inflated Pillow Plate For Immersed Cooling
    Pillow plate design is always customized, we can according to customer requirements, cooling or heating process, we define the
    laser machine solder joint pattern and internal channel height according to different variables of pillow plate heat exchangers,
    such as:
    Sheet metal materials for substrate (such as DCO1, DCO4, 304, 304L, 316L, 316Ti, 318LN, 904L, 254 SMO, etc.) Wall thickness of the
    substrate (e.g. 0.4mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm, etc.) Maximum allowable substrate pressure Maximum permissible substrate
    temperature Fluid inside the pillow plate heat exchanger Fluid outside the pillow plate heat exchanger Flow through the pillow
    plate heat exchanger Maximum allowable pressure drop of pillow plate heat exchanger
    Multi functional Small Size Stainless Steel Industrial Single Inflated Pillow Plate For Immersed Cooling

    Technology

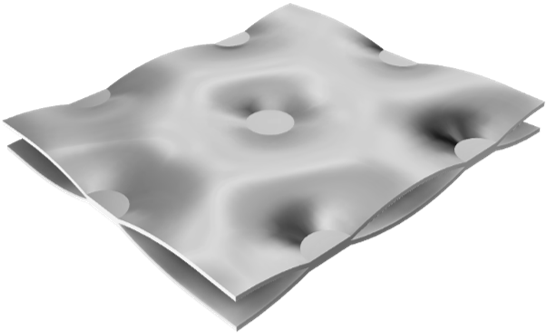

    Two sheets of steel are overlapped and welded by laser. Laser ring welding is used in the middle of the sheet and two laser welding seals are used around the edge.Injecting high-pressure liquid between plates makes the plates expand and deform under pressure, forming a hollow plate heat exchanger with uneven surface.
    Parametric
    The working pressure of the pillow plates varies from -0.5 bar to 250 bar in different applications.
    Double Embossed Pillow Plate
    Single Embossed Pillow Plate
    Pillowplate 0.8mm+0.8mm
    Pillowplate 0.8mm+2.0mm
    Pillowplate 1.0mm+1.0mm
    Pillowplate 1.0mm+2.5mm
    Pillowplate 1.2mm+1.2mm
    Pillowplate 1.2mm+4.0mm to 15mm
    Pillowplate 1.5mm+1.5mm
    Pillowplate 1.5mm+4.0mm to 15mm
    Pillowplate 2.0mm+2.0mm
    Pillowplate 2.0mm+5.0mm to 15mm
    Characteristics
    High pressure capacity (≥40MPa)
    Cost-effective due to low welding costs
    Thinner materials can be used, saving you on material costs
    Can be designed into any shape
    Pillow Plates' welding pattern guarantees high turbulence and therefore creates high overall heat transfer coefficients
    Due to the low volume in the plate, little cooling / heating fluid needs to be circulated. As a result, less pump capacity is required
    Maximum size of single piece: 2000*12000mm
    Easy to clean
    Application
    The applications of pillow plates in cooling and heating are endless. If there is a need, you can contact us directly to customize
    Multi functional Small Size Stainless Steel Industrial Single Inflated Pillow Plate For Immersed Cooling

    Single Embossed
    Cooling / heating of beer tanks Cooling / heating of wine tanks Cooling / heating of milk tanks Cooling / heating process tanks Cooling / heating of conveyors Cooling / heating of all required flat heat transfer surfaces
    Multi functional Small Size Stainless Steel Industrial Single Inflated Pillow Plate For Immersed Cooling

    Double Embossed
    Falling Film Chillers Immersion Chillers Ice banks Ice machines Clamp-on jackets Cooling and heating panels
    Heat recovery banks Immersion plates Plate banks
    Multi functional Small Size Stainless Steel Industrial Single Inflated Pillow Plate For Immersed Cooling
    Processing
    Multi functional Small Size Stainless Steel Industrial Single Inflated Pillow Plate For Immersed Cooling
    Company Introduction
    We are a professional enterprise engaged in the treatment of industrial waste water and gas,as well as evaporating crystallization, drying, filtration, and heat transfer in the field of multi-process production,together with the research and development and manufacturing of technical equipment, covering an area of 532800 square meters. Currently,there are 1580 employees, including 568 engineering technical personnel and professional technicians. We have fixed assets of 2 billion yuan and annual sales of 2.8 billion yuan.
    The main products of the group include MVR evaporators, multi effect evaporators, centrifuges, reaction kettles, crystallizers, heat exchangers, PILLOW PLATES, Roots compressors, with various supporting fluid equipment.The enterprise has got ISO9001/2015 system certification, CE certification, ISO14001:2004 environmental management system certification, possesses A1 and A2 pressure vessel manufacturing qualifications, A2 pressure vessel design qualifications, and owns over 100 invention patents and utility model patent technologies. Also,we possess the right to self operate import and export trade.
    The company's product quality, advanced technology, and comprehensive after-sales service have been widely recognized around the world, with a high market share. Various series of centrifuges account for 60% of the Chinese market and are exported to more than 50 countries and regions, including Germany, the United Kingdom, Italy, Denmark, Switzerland, the United States, Canada, Australia, Mexico, Brazil, Argentina, Chile, Colombia, Russia, Ukraine, Romania, India, Indonesia, Vietnam, Thailand, South Africa, Egypt, Cameroon, etc.
    With the goal of "innovating products through technology, pursuing excellence in quality, serving customers with integrity and perfection", the company manufactures high-tech, highly automated, safe, and energy-saving equipment to become a first-classmanufacturer of evaporation and fluid equipment in China.
