Description

1.Separation of methyl ester and glycerine / catalyst / soap / methanol
2.Washing of methyl ester
3.Separation of fatty acids from glycerine

The PBDSD30 incorporate the very latest developments in centrifuge construction. The centrifuge is specially designed for use in the production of biodiesel and is particularly suitable in separating of glycerol from methylesters after esterification and transesterification reactions. The design conforms to a number of GB JB/T8103 (national standards) directives, and machine is made in accordance with the general directives formachinery.

Process flow diagram

Specification

1. Actual capacity depends on feed material and separation demands

2. In compliance to GB10897, GB10898, JB/T7231-94

Working principle

Fig. 1 shows disc separator.

The product flows through feed pipe (1) into the bowl and is separated into light and heavy liquid phases in the disc stack (11). The light liquid phase flows to the centre of the bowl from where it is discharged by centripetal pump (6). The heavy liquid phase is conveyed under pressure to centripetal pump (7).

The separated solids are collected in the sediment holding space (8) from where they are instantly ejected at periodic intervals through ports (10) by means of the hydraulically operated sliding piston (9), whereby the closing liquid is feed through valve. The ejection cycles are initiated via the control unit.

Installation drawing

Shipping data (approximate)

Guarantee:

Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.We are committed to reward you with a better quality in return for our interest in and faith toward.We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.

Basic Information

Zhangjiagang City Peony Machinery Co., Ltd., founded as a special producing enterprise of separating equipment in 2008, is the well-known manufacturer and service provider of separation and filtration in China. Peony dedicated to solving the solid-liquid, liquid-liquid separation problems for clients all over the world and providing separating and filtering mechanical products with convenient operation, high efficiency, reliable quality, and excellent service worldwide. Being a group corporation, Peony has 3 producing bases in China - Zhangjiagang, Nanjing, and Hangzhou city.

Products

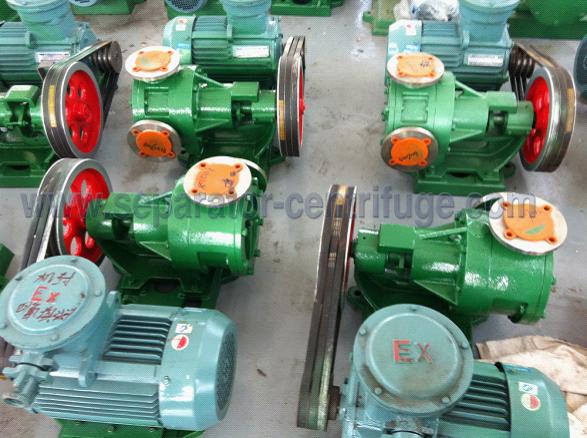

As the professional supplier of separating and filtering equipment, we produce basket centrifuges, decanters, and disc separators starch product line, and sell the auxiliary equipment such as clarify equipment, filters, pumps, etc. These 25 series of more than 150 products are self-development of Peony and have attained national patent. Those products and relevant auxiliary equipment are widely used in chemical, petroleum, pharmacy, mining, food, beverage industry, and environmental protection.

We own various kinds of inspection and testing facilities with a value over USD10million, now,16 testing tables,6920 gear testing center, X-ray detecting machine, high-speed dynamic balancing machine, ultrasonic flaw detection machines, etc, we are equipped with complete testing, inspection, analysis control system, advanced testing machines and simulative working condition test table and automatic control testing system, which guarantees our new product research, processing validation, and quality.

We have strongly equipped the robust and precise processing machines from Germany, Italy, England, and our domestic famous brand, here, I'd like to list several of them for your reference.
200 Numerical Control Boring and Milling Machine TK6920
160 Numerical Control Boring and Milling Machine TK6916
Italian PAMA Numerical Control Boring and Milling Machine
80T CNC Lathe
40 T CNC Lathe
2.5m Merry Go Round Machine C525E
Z100 Radial Drill
Numerical Controlled Vertical Milling Machine
Underwater Plasma Cutting Center
CNC Machining Center


We harvested great achievement these years, and turnover reaches to 380million RMB in
the year 2013, and we expect to carry out 500million RMB in 2015.

Welcome all who are engaged in the separation and filtration to work with us, and we are also looking for qualified world wide agents to provide better service and deep marketing.

Worldwide Network

Our products have spread all over the world and are applied over 35 countries and regions, for example, America, Germany, Italy, Sweden, Canada, Singapore, Australia, Brazil, Russia, India, Middle East, and Southeast Asia, etc. To provide flexible and qualified technical service to resolve any maintenance issue in the shortest time possible, now we have established agents in many countries such as Brazil, Colombia, Latin America, Bangladesh, Southeast Asia, etc.

Society Reward

Peony is devoting into the charity activity, we are subsidizing some poor students to finish the school and are trying to set up some primary to feedback the society, hereby, we appeal to all people to enter into the charity activity, technical innovation changes the world, love embraces the world!
