    CE certificated 1500RPM Horizontal Solid Liquid Decanter Centrifuge Separator

    Ask Lasest Price
    Brand Name : Peony
    Model Number : LW
    Certification : ISO,CE, ISO
    Price : please contact me
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100sets per month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    CE certificated 1500RPM Horizontal Solid Liquid Decanter Centrifuge Separator


    CE certificated 1500RPM Horizontal Solid Liquid Decanter Centrifuge Separator​


    Working Principle
    Material enters the centrifuge from the inlet pipe and enters the high-speed rotating drum under the action of the screw accelerator. Material begins to stratify in the settling area of the drum. The solid phase with a specific gravity is thrown onto the drum wall. The solid that settles on the drum wall is pushed to the slag outlet by the screw conveyor. Outside the machine, the liquid phase with a lighter specific gravity overflows through the overflow hole at the large end of the drum. Differential is a device which ensures the stability of differential speed and produces larger torque. In addition, dual motor dual frequency conversion device with common DC bus can realize stepless adjustability of drum speed and differential speed, which can adapt to the change of flow and concentration, and ensure good and stable separation effect.

    Technical parameters
    Model
    LW-250*1000
    LW-350*1460
    LW-450*1800
    LW-520*2130
    LW-650*2275
    LW-720*2665
    LW-900*2700
    LW-1000*2500
    Max speed(r/min)
    4000
    4000
    3600
    2800
    2500
    2000
    1500
    1500
    Processing capability(m³/h)
    0.5-3
    3-12
    6-20
    12-30
    25-35
    45-100
    50-110
    50-120
    Main motor power(kw)
    11
    22
    30-45
    45-75
    75-110
    110-160
    160-220
    280

    Main Characteristics
    1.Continuous working,spiral discharging,high capacity.
    2.Controlled by two motors,rovolving drum can be adjustable two stage separately.
    3.Wide applicability for chemical,oil,foodstuff,pharmacy industries and green industry in which solid-liquid separation is required.
    4.Suitable for various products,capable for separating wide ranging solid phase grains(0.002-2mm),especially when separating solid phase has different size grains.


    Special Allocation
    Following allocation can be possible to meet customer's demand
    1.Frequency conversion plus PLC controlling system
    2. Protection system for vibration and temperature rising
    3.Feeding speed control
    4.Gas-liquid separation device on liquid outlet
    5.Three kinds of structure selection of cycloid gear,planetary gear and hydraulic differential. They are used to be transfered the different solid phase by pushing the torque.

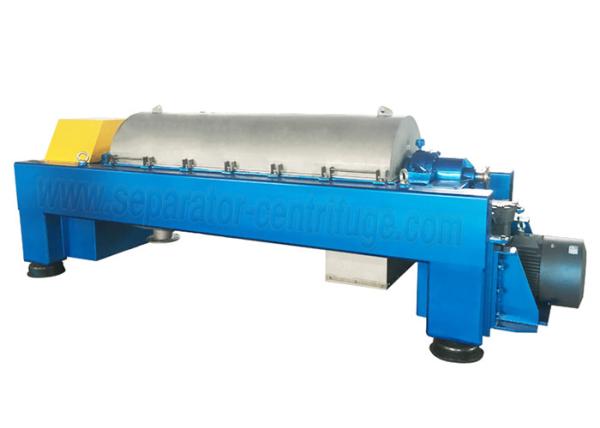

    Detailed Images


    CE certificated 1500RPM Horizontal Solid Liquid Decanter Centrifuge Separator

    CE certificated 1500RPM Horizontal Solid Liquid Decanter Centrifuge Separator


    Our Service


    1. 12 months guarantee period from machine arriving date.
    2. Abundant spare parts in stock are available to provide.
    3. Our technicians could be dispatched for overseas service.
    4. 7*24 hours technical consultation.
    5. Your workers could get trained both in our factory and yours.
    6. Routine tracing till the machine work properly will be done timely.
    7. We will remind you to do the normal maintenance.
    8. Your suggestions or any comments & reflection would be treated in priority.
    9. Marketing team will visit you during our visit in your country if you require.
