Chemistry Pharmacy 1000mm Basket Batch Type Centrifugal Machine

    Buy cheap Chemistry Pharmacy 1000mm Basket Batch Type Centrifugal Machine from wholesalers

    Buy cheap Chemistry Pharmacy 1000mm Basket Batch Type Centrifugal Machine from wholesalers
    • Buy cheap Chemistry Pharmacy 1000mm Basket Batch Type Centrifugal Machine from wholesalers
    • Buy cheap Chemistry Pharmacy 1000mm Basket Batch Type Centrifugal Machine from wholesalers
    • Buy cheap Chemistry Pharmacy 1000mm Basket Batch Type Centrifugal Machine from wholesalers

    Chemistry Pharmacy 1000mm Basket Batch Type Centrifugal Machine

    Ask Lasest Price
    Brand Name : Peony
    Model Number : PPSBD
    Certification : ISO, CE
    Price : FOB+USD
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 40 working days
    • Product Details
    • Company Profile

    Chemistry Pharmacy 1000mm Basket Batch Type Centrifugal Machine

    Scraper Bottom Discharge Automatic Batch Type Centrifuge


    Product Description

    The PPSBD Batch Type Centrifuge is a kind of filtering equipment adopting scraper bottom-unloading and interval operation. It is widely used in chemical, pharmaceutical, food, light industry and other trades, most commonly used for gypsum, ferric sulfate, nickel sulphate, copper sulphate, potassium chloride, acetate, borax, soda, rubber additives, dye, plastic raw material, soap, grease, resin, salt, gourmet powder, food additives, vitamins, herbicides, insecticides and dewatering of copper, zinc, aluminum and other mineral powders.


    Features of Batch type Centrifuge
    1) PPSBD series batch type centrifuge is a kind of filtering equipment adopting scraper bottom-unloading and interval operation.
    2) The material enters the rotary basket from the upper.
    3) Under the function of centrifugal force, the liquid passes through the filtering medium and discharges out of the machine and the solid is left in the rotary basket.
    4) When the rotary speed reduces, the scraper scrapes the solid material and the material is discharged from the bottom of the machine.
    5) Advantages: steady operation, convenient operation.
    6) It could set operation program according to demands, auto finishes feeding material, separating, dewatering, unloading and other processes.
    7) Can carry out long-distance operation.
    8) High automation level, large handing capacity and good separation result.
    9) No base installation.


    Technical Parameters Of Batch Type Centrifuge

    ModelBasket Diameter(mm)Basket Volume(L)Loading Capacity(Kg)Motor Power(Kw)Size(including shock absorber)(mm)Machine Weight(KG)
    PPSBD60S60045605.51700*1200*17001500
    PPSBD135S8001001357.51700*1400*19602000
    PPSBD180S1000140180151968*1500*20603500
    PPSBD250S1000190250151968*1200*24003800
    PPSBD320S120026032018.52280*1800*23504350
    PPSBD400/520S1250310/400400/52018.52280*1800*25005000/5600
    PPSBD650S1250505650222280*1800*29006000
    PPSBD630S1320490630302420*1900*29006500
    PPSBD780S1350600780302420*1900*29007000
    PPSBD700S1400540700372700*2000*35008500
    PPSBD820S1500610820302600*2140*280010800
    PPSBD1000S16008001000373000*2400*325012500
    PPSBD1200S180010001200553260*2300*310014450

    Detailed Pictures of Industrial Basket Centrifuge


    Company Guarantee

    Our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning pOrocessing center, etc.

    The company's main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment.

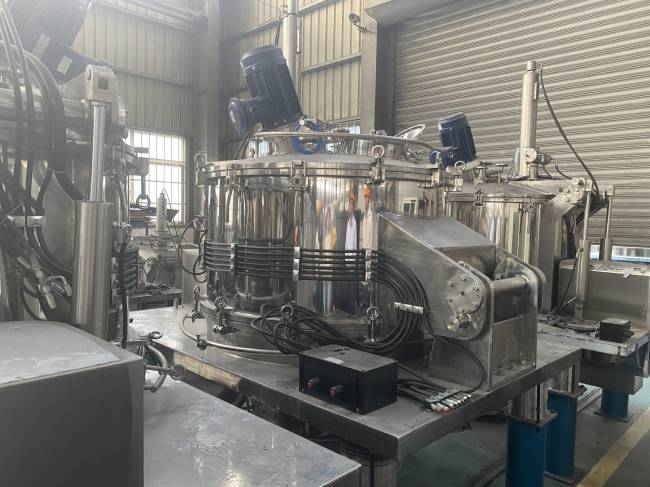

    Site Pictures of Batch Type Centrifuge

    Chemistry Pharmacy 1000mm Basket Batch Type Centrifugal Machine


    After Sales Service

    *12 months guarantee period from machine arriving date.
    *Abundant spare parts in stock are availble to provide.
    *Our technicians could be dispatched for overseas service.
    *7*24 hours technical consultation.
    *Your workers could get trained both in our factory and yours.
    *Routine tracing till the machine work properly will be done timely.
    *We will remind you to do the normal maintenance.
    *Your suggestions or any comments & reflection would be treated in priority.
    *Marketing team will visit you during our visit to your country if you require.


    Certificaton

    Chemistry Pharmacy 1000mm Basket Batch Type Centrifugal Machine
