50Lbs Stainless Steel UL listed electric component ethanol centrifuge for THC

Brief introduction:

BB series centrifuge is top discharging, hermetic closure type equipment, for plant material extraction from ethanol.
The dry material is put into the bag, and dip in ethanol, flood and do bi-direction wash, and then spin. The working temperature can be as low as -80 ℃, to prevent the ethanol from volatilization.
Model BB flat-plate centrifuge has got rid of traditional hanging type of leg support and instead it adopts flat-plate
counterweight and high-viscosity damping vibration reducer for absorbing vibration. The installation requires no foundation.

Technical parameters:

Working Steps:

1. System loading: A pre-loaded closed filter bag is placed into the basket2. Program Menu: The 'Spray Wash' or 'Agitation Wash' program is selected on the HMI where the RPM and cycle times are set to the operator’s specifications.

3. Fill: Alcohol is connected from source tank into the centrifuge.

4. The Wash cycle: The plant material undergoes an agitated wash with a set number of bi-directional agitations

5. System Draining: When the wash cycle is complete, the outlet valve is manually opened and theliquid drained. The alcohol wash is pumped to a properly rated storage reservoir for further processing.

6. Spin Dry Cycle: The 'Spin Dry' menu is selected on the HMI and the drying cycle is started. The wet plant solids are spun dry of the remaining alcohol mixture within.

7. System Unloading: Upon completion of the 'Dry cycle', centrifuge is unloaded by taking the filter bag outfrom the basket.

8. Repeat Process.

Standard features:

· 304 and 316L Sanitary Stainless Steel Construction

· Low temperature rating: -40c

· Reinforced Sight Glass

· Bi-Directional Agitation

· Auto/Manual Controls

· Digital HMI Interface

· Variable Speed Control

· Easy Material Loading/ Unloading

· Heavy-Duty Spin Drying

· No foundation required

Collection:

1. Ex proof motor

2. PTFE Seals

3. Touch screen panel with PLC program

4. Inverter control box

5. On spot ex button

6. Closed type filter bags

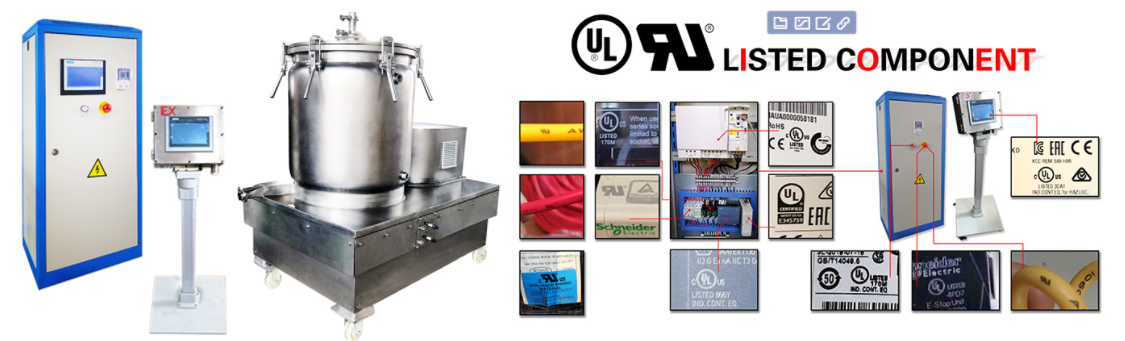

Picture:

Our service:

1. 12 months guarantee period from machine arriving date.

2. Abundant spare parts in stock are available to provide.

3. Our technicians could be dispatched for overseas service.

4. 7*24 hours technical consultation.

5. Your workers could get trained both in our factory and yours.

6. Routine tracing till the machine work properly will be done timely.

7. We will remind you to do the normal maintenance.

8. Your suggestions or any comments & reflection would be treated in priority.

9. Marketing team will visit you during our visit in your country if you require.
