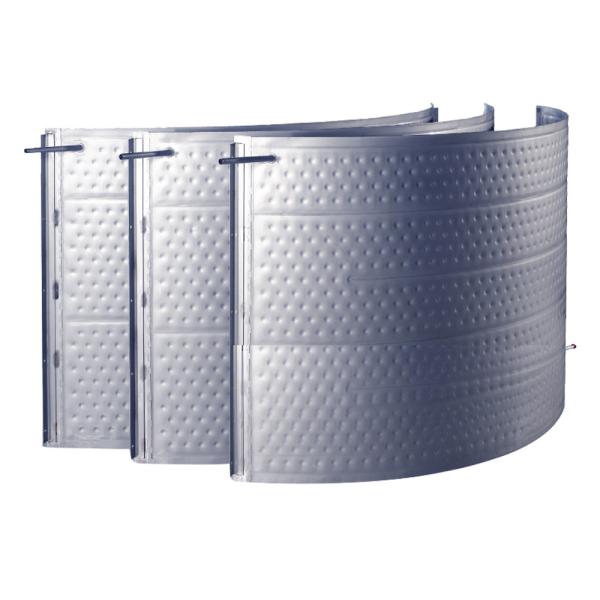

    Laser welding 2-12m single/double inflated 304/316L stainless steel pillow plate

    Ask Lasest Price
    Brand Name : Peony
    Model Number : 12*2m
    Certification : ISO
    Price : USD100/M2
    Payment Terms : TT,.LC, Western Union
    Supply Ability : 600000m2 per month
    Delivery Time : 30 days after down payment
    • Product Details
    • Company Profile

    Laser welding 2-12m single/double inflated 304/316L stainless steel pillow plate

    Laser welding 2-12m single/double inflated 304/316L stainless steel pillow plate

    Competitive Advantages of stainless steel pillow plate

    • Less chance of leaks due to high quality welding.
    • Higher heat transfer coefficients at lower flow rates.
    • High efficiency in energy transfer/ dimple patterns enable better flows resulting in high-energy efficiency.
    • Pillow Plate is integrated in the structure, giving it extra strength.
    • According to the application any design is possible.

    Advantage of stainless steel pillow plate

    1. Faster production with less material.

    2. Very strong, reliable, constant high-quality welds.

    3. Convenient for the welding of stainless steel, carbon steel, duplex, titanium and numerous other alloys.

    4. Less deformation during welding, because of relatively low heat-input by the laser beam.

    5. Inside of the tank is not affected, no rework needed,, even the protective film can stay on during welding.

    6. Unlimited under-plate thickness, as the laser beam only penetrates from one side.

    7. As any shape can be designed and welded, tailored solutions can be created.

    8. Fully automated welding-process with low cost of labour and high-quality end product.


    Specification of stainless steel pillow plate


    Double Embossed Pillow PlateSingle Embossed Pillow Plate
    Pillow Plate 1.0mm +1.0mmPillow Plate 1.0mm+2.5mm
    Pillow Plate 1.2mm+1.2mmPillow Plate 1.2mm+4.0-10mm
    Pillow Plate 1.5mm+1.5mmPillow Plate 1.5mm+4.0-10mm

    Laser welding 2-12m single/double inflated 304/316L stainless steel pillow plate


    Description of stainless steel pillow plate


    Pillow plate is in 2types: single and double embossed, welded with fiber laser.

    Pillow plate can have working pressure from -0.5bar to 250 bar in different applications., It is widely used in heating / cooling / evaporation / condensation field which are necessary adapted in heat exchangers, tanks as milk, beer, wine, storage, fermentation, falling film chillers, jacket vessels, evaporator plates, building roof, ice room etc.


    Overview of stainless steel pillow plate

    Laser welding 2-12m single/double inflated 304/316L stainless steel pillow plate


    Guarantee


    Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.We are committed to reward you with a better quality in return for our interest in and faith toward.We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.


    Our services


    1. 12 months guarantee period from machine arriving date.

    2. Our technicians could be dispatched for overseas service.

    3. 7*24 hours technical consultation.

    4. Your workers could get trained both in our factory and yours.

    5. Routine tracing till the machine work properly will be done timely.

    6. Your suggestions or any comments & reflection would be treated in priority.

    7. Marketing team will visit you during our visit in your country if you require.
