    Skid Mounted Separator Centrifuge Disc Stack Centrifuge Lube Oil Separator

    Ask Lasest Price
    Brand Name : Peony
    Model Number : PDSD
    Certification : CCS
    Price : USD20000-68000/SET
    Payment Terms : TT,.LC
    Supply Ability : 30 sets per month
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    Skid Mounted Separator Centrifuge Disc Stack Centrifuge Lube Oil Separator

    Skid mounted separator - centrifuge disc fuel oil handling unit


    Description


    Model PDSD disc fuel oil handling separator is mainly used to remove water and mechanical impurities from diesel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machine, and prolong engine life. The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.


    Skid Mounted Separator Centrifuge Disc Stack Centrifuge Lube Oil Separator


    The machine is one kind of rotary machine with high speed. After accurate dynamic balancing, it can run for long time with low vibration, safety and security.


    The design, product and acceptance are conformed to the standard of GB/T5745 “Marine Disc Separator”.


    Condition for separation and actual capacity (refer to the chart)


    Oil typesLight diesel oilLubrication oil
    SAE30,40Detergence oilSteam turbine oil

    Kinematical viscosity

    (mm2/s)

    1320.536.280100-20061.2-74.8
    50C40C40C
    Density (kg/m3) (20C)<900900-991880-900<900
    Separating temp. (C)40608080-95

    Recommended capacity

    (L/h)

    900-5000300-4500

    Oil typesFuel oil
    Diesel oilHeavy fuel oil

    Kinematical viscosity

    (mm2/s)

    1.9-5.55.5-24120180380
    40C50C
    Density (kg/m3) (20C)<900900-991
    Separating temp. (C)Normal temperature, 40-60C best90-8

    Recommended capacity

    (L/h)

    From 650L/h to 5000L/h depends on different oil and working temperature.

    Advantages


    1. High efficiency

    2. Low oil consumption

    3. Convenient operation

    4. Economic maintenance cost


    Skid Mounted Separator Centrifuge Disc Stack Centrifuge Lube Oil Separator

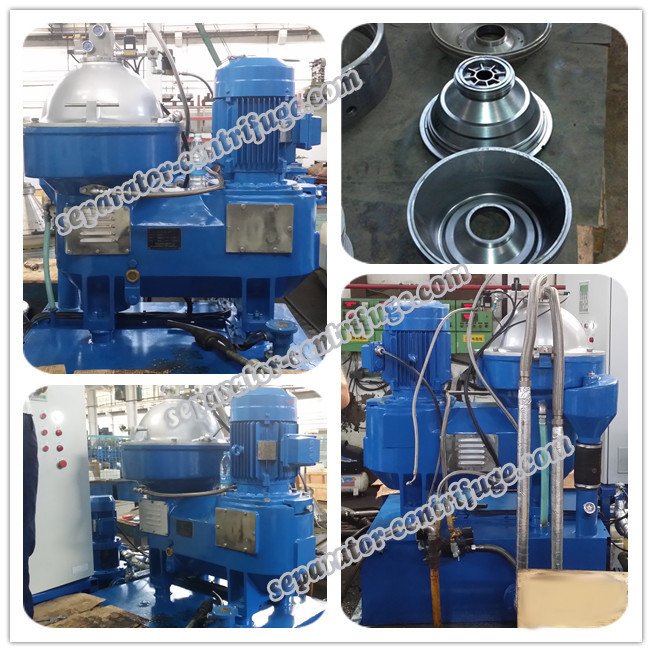

    The whole unit consists of:


    1. Separator
    2. Electric control box
    3. Oil feed pump
    4. Oil filter

    5. Heater (optional, steam / conduction oil / electric type available)
    6. Instruments
    7. Sludge pump
    8. Skid


    Skid Mounted Separator Centrifuge Disc Stack Centrifuge Lube Oil Separator

    Skid Mounted Separator Centrifuge Disc Stack Centrifuge Lube Oil Separator


    Value Analysis


    1. According to the requirements of each classification society, all modules are equipped with oil leak alarm and high temperature alarm.
    2. Oil.hydraulic,pneumatic control part adopts the Brand Baode (Germany).

    3. Heater adopts brand SWEP (Germany).

    4. Pressure control adopts Korean products or products

    5. Screw pump is used instead of gear pump.

    6. All equipped with automatic temperature control device (Made by the RTK production in Germany or made in China)
    7. The main electrical components of standard electrical control box are produced by Schneider company while PLC is produced by Siemens or Mitsubishi.
    8. The complete sets referred above are all Peony's production of automatic Standard Controls and we certainly can modify the configuration list according to customers’ specified requirements.


    Skid Mounted Separator Centrifuge Disc Stack Centrifuge Lube Oil Separator


    Guarantee


    Peony has advantages in price, service and quality. We have Military Product Quality System Certification, CE certificate, Quality System Certification, many professional equipments and advanced designs.
