    brew tank Laser Welded 316L Pillow Plate double embossed

    Ask Lasest Price
    Brand Name : Peony
    Model Number : 12*2m
    Certification : ISO
    Price : USD100/M2
    Payment Terms : TT,.LC, Western Union
    Supply Ability : 600000m2 per month
    Delivery Time : 30 days after down payment
    • Product Details
    • Company Profile

    brew tank Laser Welded 316L Pillow Plate double embossed

    High quality different sizes laser welded 316L pillow plate for MVR evaporator

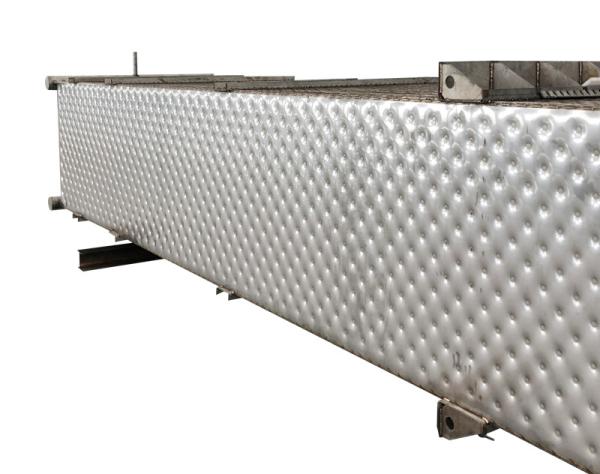

    Description of 316L pillow plate


    The Pillow Plate consists of two stainless steel sheets that are laser welded together by welding a custom circle weld pattern. The outside perimeter of the Pillow Plate is fully laser welded to create a pressure boundary. At the edges of the Pillow Plate, a contour is welded to create a pressure-tight part.


    brew tank Laser Welded 316L Pillow Plate double embossed


    Manufacturing process

    1. The two steel plates are superposed together, and laser welding is carried out. Laser ring welding is used in the middle of the plates, and two laser welding edges are done around the plates.
    2. High pressure liquid is injected between the plates to make the plates expand and deform under pressure, forming a hollow plate-like heat exchange element with uneven surface.

    brew tank Laser Welded 316L Pillow Plate double embossed


    Specifications


    Double Embossed Pillow PlateSingle Embossed Pillow Plate
    Pillow Plate 1.0mm +1.0mmPillow Plate 1.0mm+2.5mm
    Pillow Plate 1.2mm+1.2mmPillow Plate 1.2mm+4.0-10mm
    Pillow Plate 1.5mm+1.5mmPillow Plate 1.5mm+4.0-10mm


    Competitive Advantages


    1. Faster production with less material.

    2. Very strong, reliable, constant high-quality welds.

    3. Convenient for the welding of stainless steel, carbon steel, duplex, titanium and numerous other alloys.

    4. Less deformation during welding, because of relatively low heat-input by the laser beam.

    5. Inside of the tank is not affected, no rework needed,, even the protective film can stay on during welding.

    6. Unlimited under-plate thickness, as the laser beam only penetrates from one side.

    7. As any shape can be designed and welded, tailored solutions can be created.

    8. Fully automated welding-process with low cost of labour and high-quality end product.


    Overview

    brew tank Laser Welded 316L Pillow Plate double embossed


    Application of 316L Pillow plate


    Pillow Plates are heat exchanger plates that can be used in many ways for the industrial cooling or heating of your products. As the manufacturer of the laser welding machine for these Pillow Plates,
    Laser welded pillow plates have endless applications in different industries. Omega Pillow Plates are used for vessels, for example for cooling milk, soft drinks, beer . But also various other sectors use our plates. For example, the meat processing industry, the chemical industry and the pharmaceutical industry.


    brew tank Laser Welded 316L Pillow Plate double embossed


    Our services


    1. 12 months guarantee period from machine arriving date.

    2. Our technicians could be dispatched for overseas service.

    3. 7*24 hours technical consultation.

    4. Your workers could get trained both in our factory and yours.

    5. Routine tracing till the machine work properly will be done timely.

    6. Your suggestions or any comments & reflection would be treated in priority.

    7. Marketing team will visit you during our visit in your country if you require.


    Contact us


    Zhangjiagang City Peony Machinery Co., Ltd
    Add: Leyu Developing Zone, Zhangjiagang City, Jiangsu Pro, China.
    Web: www.peonyfns.com, www.peonycentrifuge.com, www.separator-centrifuge.com

    Email: sale01@peonyfns.com
    Mobile: 0086 19951199980 (WhatsApp/Wechat)

    Skype: lucialcy


    Tag: 316L pillow plate, laser welded plate
