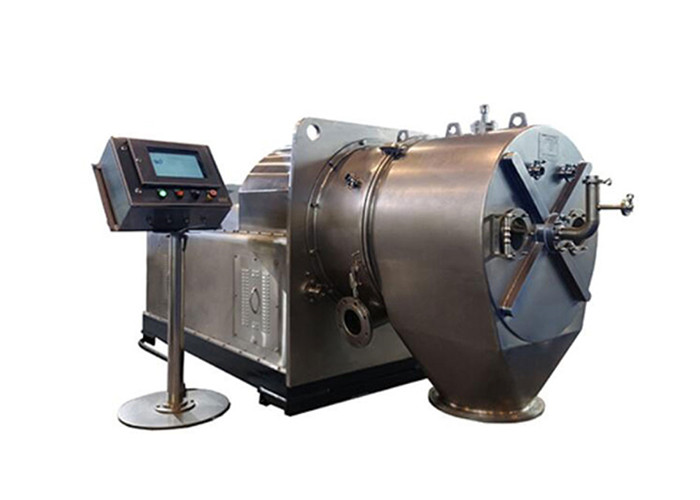

    SS304 Inverting Horizontal Dehydration Pharmaceutical Centrifuge


    Self Cleaning Dehydration Pharmaceutical Centrifuge Inverting Horizontal Centrifuge


    Working Principle


    This bag inverting centrifuge is mainly composed of a rotating mechanism, a discharging mechanism, a machine base, a bearing combination, a rotating drum, a pusher, a screen, a casing, and an electric control part.
    Under high-speed operation, the suspension enters the drum through the feeding tube. Under the action of centrifugal force, the suspension is evenly distributed in the filter cloth inside the drum. The liquid phase passes through the pores of the filter cloth and the gap of the screen. And the drum filter hole is drained from the mother liquor nozzle, and the solid phase is trapped on the filter screen to form an annular filter residue layer. When unloading, the main engine first slows down to the unloading speed, starts the unloading motor, and pushes the pusher from the drum. Because both ends of the filter cloth are fixed on the pusher and the drum, the filter cloth is turned inside and outside. The trapped material is turned over to the outside of the filter cloth. Also under the action of the centrifugal force field, the material is removed from the filter cloth and discharged from the discharge port.
    SS304 Inverting Horizontal Dehydration Pharmaceutical Centrifuge

    Technical Parameters


    Model
    FW-630
    FW-800
    FW-1000
    FW-1300
    Drum diameter(mm)
    630
    800
    1000
    1300
    Drum volume(L)
    70
    120
    200
    350
    Filter area(m2)
    0.56
    0.85
    1.26
    2
    High speed(r/min)
    1940
    1600
    1270
    1000
    Maximum separation factor
    1325
    1144
    901
    726
    Weight(kg)
    3600
    4200
    5500
    6500
    Overall dimensions(mm)
    2970*1040*1650
    3980*1450*1890
    4990*1650*2560
    5900*2050*3250

    Working process diagram

    Applications

    1. Chemical and pharmaceutical synthesis products

    2. Brittle crystals

    3. Toxic and/or inflammable products

    4. Products whose cake can be very compressed

    5. Possibility to handle very thin cakes (recovery of the residual product)

    6. High reduction of the residual moisture with the HCS system


    SS304 Inverting Horizontal Dehydration Pharmaceutical Centrifuge


    Features

    1.Fully sealed structure design, reliable sealing, no pollution to materials.

    2.The shell can be completely turned over for easy cleaning and inspection.

    3.Discharge without scraper mechanical parts, no damage to gain crystal;

    4.There is no material residue in the filter cloth, which facilitates the separation of materials in the next batch.

    5.Damping shock absorber, no foundation installation;

    6.Unmanned operation, automatic detection, and operation;


    SS304 Inverting Horizontal Dehydration Pharmaceutical Centrifuge
