    Batch Operation 70L Pharmaceutical Centrifuge Machine Rotating Mechanism

    Ask Lasest Price
    Brand Name : Peony
    Model Number : FW
    Certification : ISO
    Price : USD160000-450000/set FOB Shanghai
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 50 sets/month
    Delivery Time : Regular 45-60 working days after deposit is received
    • Product Details
    • Company Profile

    Batch Operation 70L Pharmaceutical Centrifuge Machine Rotating Mechanism


    70L Pharmaceutical Continuous PLC Pharmacy Bag Inverting Centrifuge

    Introduction


    This bag inverting centrifuge is mainly composed of a rotating mechanism, a discharging mechanism, a machine base, a bearing combination, a rotating drum, a pusher, a screen, a casing, and an electric control part.
    Under high-speed operation, the suspension enters the drum through the feeding tube. Under the action of centrifugal force, the suspension is evenly distributed in the filter cloth inside the drum. The liquid phase passes through the pores of the filter cloth and the gap of the screen. And the drum filter hole is drained from the mother liquor nozzle, and the solid phase is trapped on the filter screen to form an annular filter residue layer. When unloading, the main engine first slows down to the unloading speed, starts the unloading motor, and pushes the pusher from the drum. Because both ends of the filter cloth are fixed on the pusher and the drum, the filter cloth is turned inside and outside. The trapped material is turned over to the outside of the filter cloth. Also under the action of the centrifugal force field, the material is removed from the filter cloth and discharged from the discharge port.
    Working process diagram


    Technical Parameters


    Model
    FW-630
    FW-800
    FW-1000
    FW-1300
    Drum diameter(mm)
    630
    800
    1000
    1300
    Drum volume(L)
    70
    120
    200
    350
    Filter area(m2)
    0.56
    0.85

    1.26
    2
    High speed(r/min)

    1940
    1600
    1270
    1000
    Maximum separation factor
    1325
    1144
    901
    726
    Weight(kg)
    3600
    4200
    5500
    6500
    Overall dimensions(mm)
    2970*1040*1650
    3980*1450*1890
    4990*1650*2560
    5900*2050*3250


    Applications

    1. Chemical and pharmaceutical synthesis products

    2. Brittle crystals

    3. Toxic and/or inflammable products

    4. Products whose cake can be very compressed

    5. Possibility to handle very thin cakes (recovery of the residual product)

    6. High reduction of the residual moisture with the HCS system



    Features

    1.Fully sealed structure design, reliable sealing, no pollution to materials.

    2.The shell can be completely turned over for easy cleaning and inspection.

    3.Discharge without scraper mechanical parts, no damage to gain crystal;

    4.There is no material residue in the filter cloth, which facilitates the separation of materials in the next batch.

    5.Damping shock absorber, no foundation installation;

    6.Unmanned operation, automatic detection, and operation;

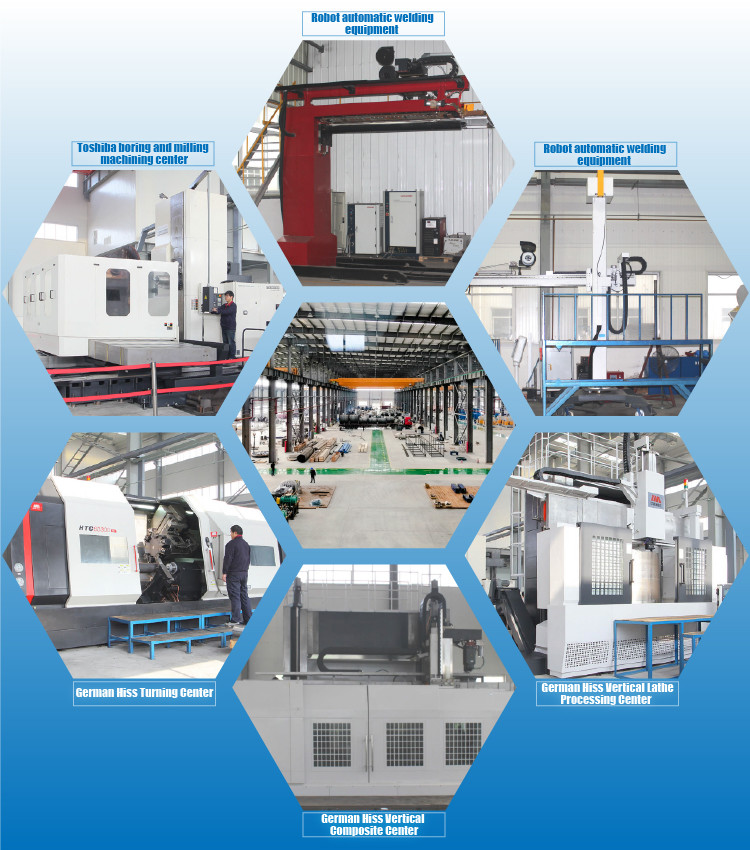

    Processing Equipment


    Batch Operation 70L Pharmaceutical Centrifuge Machine Rotating Mechanism


    Guarantee


    Peony Centrifuge has been dedicated to producing machinery and types of equipment and carrying out facility construction, pursuing the best quality, and producing the best product at the same time.


    We are committed to rewarding you with better quality in return for our interest in and faith. We will do our utmost for one more stepping forward, based on our infinite services and trust in customers.
