    11kw Horizontal Explosion Proof Decanter Separator Cbd Oil Extraction

    Ask Lasest Price
    Brand Name : Peony
    Model Number : LWF
    Certification : ISO,CE, ISO
    Price : please contact me
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100sets per month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    11kw Horizontal Explosion Proof Decanter Separator Cbd Oil Extraction


    Professional Grade Horizontal Explosion-Proof CBD Oil Extraction Decanter Centrifuge​


    Product Description

    LWF Sedimentation Centrifuge is a horizontal, continuously working and continuously spiral discharging sedimentation centrifuge. It is used in a variety or industries for separating all kinds of solid liquid suspension, defecating liquid phase with graded grains, and dehydrating sludge such as: polyoxyethylene, sulfurous acid tansuanbei, strontium sulfate, lidefen, titanium pigment, ore porcelain, clay, kaoline, diatomite, amylum, soyabean protein earthnut protein, syrup, beverage, vegetable oil, citric acid scavenge oil purification, cleansing water purification, lees, tallow, blood powder, sludge from power plants, sludge from printing and dyeing, sludge from paper making, sludge from desulfurizing natural gas, calcium carbide sludge, activated sludge ammonia sludge, sludge from washing cars, alum sludge, drilling mud, coal flotation waste, cryolite flotation liquid.
    Technical parameters
    Model
    LW-250*1000
    LW-350*1460
    LW-450*1800
    LW-520*2130
    LW-650*2275
    LW-720*2665
    LW-900*2700
    LW-1000*2500
    Max speed(r/min)
    4000
    4000
    3600
    2800
    2500
    2000
    1500
    1500
    Processing capability(m³/h)
    0.5-3
    3-12
    6-20
    12-30
    25-35
    45-100
    50-110
    50-120
    Main motor power(kw)
    11
    22
    30-45
    45-75
    75-110
    110-160
    160-220
    280

    Main Characteristics
    1.Continuous working,spiral discharging,high capacity.
    2.Controlled by two motors,rovolving drum can be adjustable two stage separately.
    3.Wide applicability for chemical,oil,foodstuff,pharmacy industries and green industry in which solid-liquid separation is required.
    4.Suitable for various products,capable for separating wide ranging solid phase grains(0.002-2mm),especially when separating solid phase has different size grains.


    Material Choice
    According to users' requirement,the product contact parts can be made of austenite stainless steel(321,316L...904L,C2205),Haynes
    alloy titanic alloy or other anti-erosion materials.
    Structure Choice
    1. Methods of lubrication:
    A.Grease lubrication
    B.Circular forced lubrication
    2. Number of helical blade head is selectable within single head helix,double head helix or multiple head helix
    3. Helix surface is coated with high hardness alloy
    Special Allocation
    Following allocation can be possible to meet customer's demand
    1.Frequency conversion plus PLC controlling system
    2. Protection system for vibration and temperature rising
    3.Feeding speed control
    4.Gas-liquid separation device on liquid outlet
    5.Three kinds of structure selection of cycloid gear,planetary gear and hydraulic differential. They are used to be transfered the different solid phase by pushing the torque.
    Working Principle
    Material enters the centrifuge from the inlet pipe and enters the high-speed rotating drum under the action of the screw accelerator. Material begins to stratify in the settling area of the drum. The solid phase with a specific gravity is thrown onto the drum wall. The solid that settles on the drum wall is pushed to the slag outlet by the screw conveyor. Outside the machine, the liquid phase with a lighter specific gravity overflows through the overflow hole at the large end of the drum. Differential is a device which ensures the stability of differential speed and produces larger torque. In addition, dual motor dual frequency conversion device with common DC bus can realize stepless adjustability of drum speed and differential speed, which can adapt to the change of flow and concentration, and ensure good and stable separation effect.

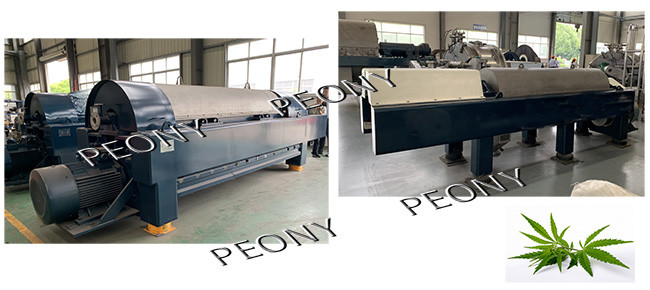

    Detailed Images


    11kw Horizontal Explosion Proof Decanter Separator Cbd Oil Extraction


    11kw Horizontal Explosion Proof Decanter Separator Cbd Oil Extraction



    Our Service


    1. 12 months guarantee period from machine arriving date.
    2. Abundant spare parts in stock are available to provide.
    3. Our technicians could be dispatched for overseas service.
    4. 7*24 hours technical consultation.
    5. Your workers could get trained both in our factory and yours.
    6. Routine tracing till the machine work properly will be done timely.
    7. We will remind you to do the normal maintenance.
    8. Your suggestions or any comments & reflection would be treated in priority.
    9. Marketing team will visit you during our visit in your country if you require.


    FAQ


    1. How can we visit your factory?
    * If you come from aborad,air to shanghai or nanjing airport,or if you arrive shanghai,you can take bullet trian
    * If you come from domestic city,air or train directly to Nanjing Nan or WUXI east,we will pick you up both from airport or railway station
    2. Can we visit your end user or contact them?
    * Yes,we will provide you the name list,and arrange the visit after their approval.
    3. How do you protect the quality?
    * As state owned enterprise with more than 100years history,we have strict operation policy,advanced processing machines to guarantee the precision ,workers with operation license,related components are from world famous brand,Series of test and inspection are done in the whole producing stage.
    4. Will you dispatch technicians for installation and commissioning?
    * Yes,we will upon required.
    5. What is your advantage compared with your competitors?
    * Quality and experience,We are top centrifuge supplier in China,our designs and structures
    are analogous to world leader brands.
    6. Is your price competitive?
    * My price is not the lowest in China ,but we promise,for the same quality and collocation,my price is the
    most favorable,for the same price,my quality is definately superior to other brands
    7. Do you have OEM service? do you sppply the parts?
    * Yes,we do,as long as you provide us your drawing and detailed requirements
    8. Do you supply second hand equipments?
    * No,we don't.
    9. Do you have agents or service centre abroad?
    * We have some partership in several countries as Indonesia,Brail,USA.
    10. What payment mode you accept?
    * TT and LC at sight
    11. Will you help to go to our site for commissioning and training?
    * Yes,we can
