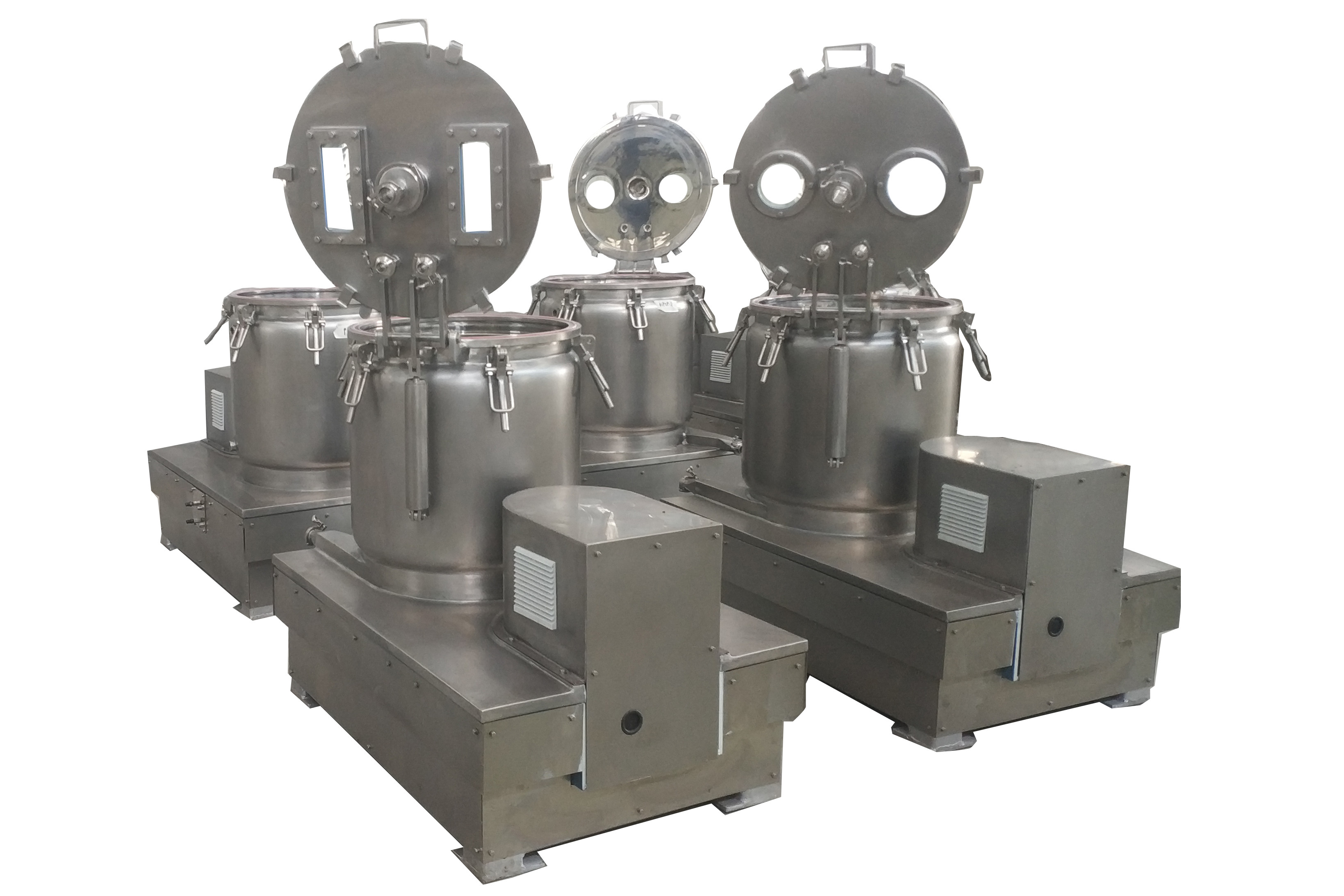

    CBD Oil Centrifuge Ethanol Solvent Extraction Machine 100L Volume

    Ask Lasest Price
    Brand Name : Peony
    Model Number : PPTD-135
    Certification : ISO9001&ISO14001,CE
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 30 sets/month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    CBD Oil Centrifuge Ethanol Solvent Extraction Machine 100L Volume


    CBD Oil Centrifuge Ethanol Solvent Extraction Machine 100L Volume


    Application:

    1.Plant oil extraction

    2. oil extraction

    3.Trim extraction

    4.Any dry biomass extraction


    Features


    ·304 and 316L Sanitary Stainless Steel Construction

    ·Low temperature rating: -40c

    ·Reinforced Sight Glass

    ·Bi-Directional Agitation

    ·Auto/Manual Controls

    ·Digital HMI Interface

    ·Variable Speed Control

    ·Easy Material Loading/ Unloading

    ·Heavy-Duty Spin Drying

    ·No foundation required


    Working steps

    1. System loading: A pre-loaded closed filter bag is placed into the basket.

    2. Program Menu: The 'Spray Wash' or 'Agitation Wash' program is selected on the HMI where the RPM and cycle times are set to the operator’s specifications.

    3. Fill: Alcohol is connected from source tank into the centrifuge.

    4. The Wash cycle: The plant material undergoes an agitated wash with a set number of bi-directional agitations

    5. System Draining: When the wash cycle is complete, the outlet valve is manually opened and theliquid drained. The alcohol wash is pumped to a properly rated storage reservoir for further processing.

    6. Spin Dry Cycle: The 'Spin Dry' menu is selected on the HMI and the drying cycle is started. The wet plant solids are spun dry of the remaining alcohol mixture within.

    7. System Unloading: Upon completion of the 'Dry cycle', centrifuge is unloaded by taking the filter bag out from the basket.

    8. Repeat Process.


    Specification

    Type

    Drum

    Power

    (kw)

    Weight

    (kg)

    Overall size

    (L × W × H)

    (mm)

    Diameter

    (mm)

    Volume

    (L)

    Capacity

    (kg)

    Speed

    (rpm)

    G-force

    PPTD-25

    450

    20

    25

    1900

    910

    1.5

    250

    980 × 650 × 870

    PPTD-50

    600

    40

    50

    1500

    756

    3

    800

    1300 × 880 × 900

    PPTD-135

    800

    100

    135

    1200

    645

    5.5

    1300

    1800 × 1200 × 1140

    PPTD-135-NA

    800

    100

    135

    1500

    1008

    7.5

    1300

    1800 × 1200 × 1140

    PPTD-200

    1000

    150

    200

    1000

    560

    7.5

    2000

    2050 × 1500 × 1220

    PPTD-200-NA

    1000

    150

    200

    1200

    706

    11

    2000

    2050 × 1500 × 1220

    PPTD-300

    1200

    250

    300

    800

    431

    11

    2500

    2350 × 1650 × 1370
