Industrial Disc Centrifuge Separator For Milk Purify And Clarify
Process Overview
Our disc separators is applicable in milk industries, there are two types for separation,our 2 phase dics separator mainly used in clarify milk,it can also handle the fruit juice, traditional Chinese medicine and clarification of beer.Our 3 phase dics separator could purify milk and handle VCO as well.

Industrial Continuous Disc Centrifuge Separator For Milk Purify,the machine adopts automatic control, it has the advantages of high efficiency, low oil consumption, convenient operation and economic maintenance cost.
The marine algae are pumped out by centripetal pump, the sludge is discharged automatically and partly.
The machine is one kind of rotary machine with high speed, After accurate dynamic balancing, it can run for long time with low vibration, safety and security.

Technical Parameter
Type selection requirements
Algae species and sources (seawater, fresh water)
Processing capacity (L / HR)
Seaweed content: (< 1% v / V) ring valve type
(~ 30% v / V) nozzle type
Solid particle size (micron)
Can it settle
Requirements after separation: ring valve type (60-70% w / W of water after separation)
Nozzle type (concentration ratio is 2-3 times, which is related to sedimentation)

Range of Application
It has the traits as high rotating speed, operating stability, completely sealed up of the inlet and outlet system, lower noise and fine separating affection. Centripetal pump system designed by our professional designer has the trails as stability outlet pressure, large regulating sphere and operating easily, Also this series separator has professional automatic domination case with safety protection device, advanced automatic vibrating testing instrument can view vibrating number at any time,We can make separating and discharging to the best affection from regulate separating parameter directly at the screen.

For milk separation,through our equipment,the solid content of milk from farm within 0.5%, through the separator, the solid content could be less than 1ppm.
Then through the 3 phase dics separator,the oil could reach 0.5%-3.5%,adjustable.
Normally,the fresh milk fat content: 3.2±0.3%, separation temperature 50±5℃.
After separation by separator, the fat content of skim milk is less than 0.1%, and the fat content of dilute cream is more than 40%.
Our strengths are that we can meet national standards and the fat content of skim milk can be controlled and adjusted according to client’s requirements.So milk standardization can be achieved through our equipment.

Product Features
There is a group of disc-shaped parts - discs which are nested and stacked with each other in the drum. There is a small gap between discs. The suspension (or emulsion) is added to the drum through the feed pipe located in the center of the drum. When the suspension (or emulsion) flows through the gap between the discs, solid particles (or droplets) settle on the discs under the action of a centrifuge to form a sediment (or liquid layer). The sediment slides along the surface of the disc and separates from the disc and accumulates at the position with the largest inner diameter of the drum. The separated liquid is discharged from the outlet of the drum. The function of the disc is to shorten the settling distance of solid particles (or droplets) and expand the settling area of the drum. Due to the installation of the disc in the drum, the production capacity of the separator is greatly improved.

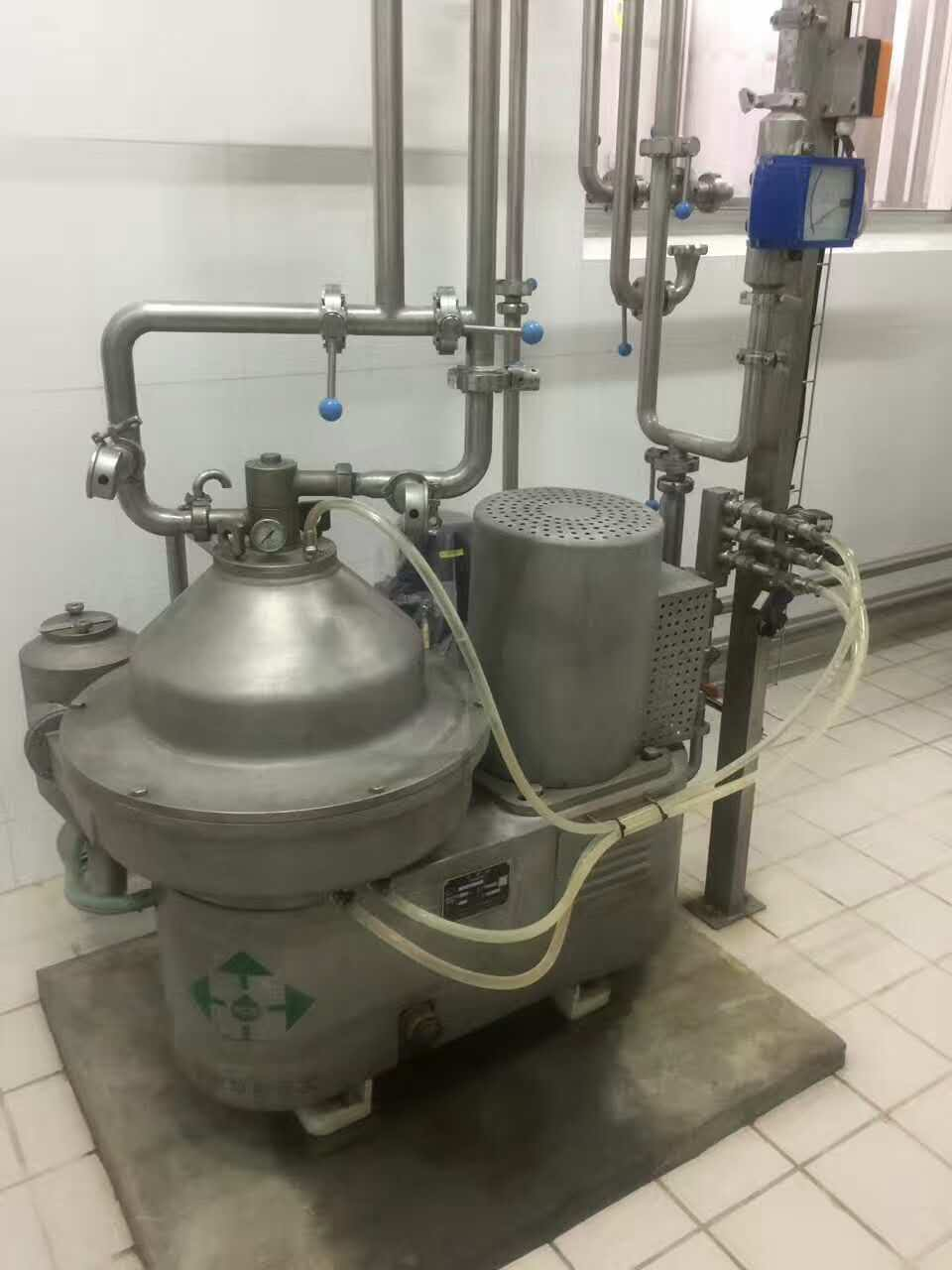

Customer Site

Certification

Guarantee

Peony Centrifuge has been dedicated to producing machinery and types of equipment and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to rewarding you with better quality in return for our interest in and faith.
We will do our utmost for one more stepping forward, based on our infinite services and trust in customers.

Our service
1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated as a priority.
9. Marketing team will visit you during our visit to your country if you require.
