Tank Reactor CSTR For MVR Evaporator Continuous Salt Line falling film vacuum

Composition
The whole reaction equipment can be equipped with condenser, condensate receiver, circulation pump, pipes, etc, accodring to customer's requirement and technology product processing.

The tank body can be equipped with the CIP automatic rotary spray cleaning ball, thermometer, manhole, pressure gauge,
explosion-proof inspection light, sight glass, quick open type feeding inlet and etc, ensuring convenient operation and complying with the GMP standard.

Features

- Unique three-dimensional surface runner:

- High heat transfer coefficient

- It is not easy to scale.

- Not easily blocked

- Compact structure

- High temperature and high-pressure resistance

- Fully welded structure

- Floating Head Design

- Easy to clean

- Lower flow resistance

Advantages of pillow plates / dimple

· Less chance of leaks due to high quality welding.

· Higher heat transfer coefficients at lower flow rates.

· High efficiency in energy transfer/ dimple patterns enable better flows resulting in high-energy efficiency.

· Pillowplate is integrated in the structure, giving it extra strength.

According to the application any design is possible.

Application

1.Wide-channel plate-shell heat exchanger:
Combining the advantages of the shell-and-tube heat exchanger and plate heat exchanger, it is easy for scaling materials to move
between boards and clean materials to move inside boards.
Usually floating head structure design is adopted. When cleaning, the whole group of plate bundles can be pulled out.
2.Wide-channel plate-shell heat exchanger:
Specially designed for working conditions with larger particles or higher viscosity, the medium can fully flow in the runner
without blockage under the above working conditions. Generally, the solid medium goes between the plates without contacts and the
clean medium goes through the plate cavity with contacts:
Flow resistance is small and scaling is not easy.
High heat transfer coefficient.
Easy to clean.
3.Surface Condenser:
Condensation of steam
The condenser of the evaporation station
Condenser/Air Cooling Island of Power Station
Condensation of Organic Steam
Condenser for Distillation/Distillation System
Condenser/Evaporative Condenser for Refrigeration System
4.Plate heat recovery unit:
It is a special case of plate and shell heat exchanger, which is used to recover various waste streams and waste heat.

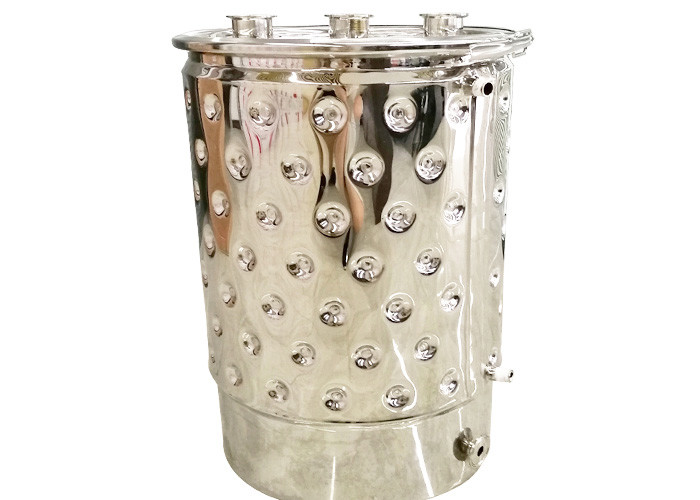

5.Dimple Jacket:
It has a high bearing capacity and can reach up to 5 MPa by special design.
Fermentation tank
Jacket Reactor
Other Heat Exchange Jacket Tanks
6.Chill System:
Used as an evaporator in the refrigeration system
Falling film ice water machine
Large Slip Ice Maker
7.Dehumidifier:
The dehumidifier is mainly composed of a cooler, separator, etc.
8.Customized:
We can design and fabricate heat transfer elements of various materials and arbitrary shapes to meet your special requirements

More pictures

It is available to design as customized as long as you give us enough info as:

1. Working pressure

2. Fluid name in cavity and out space

3. Flow ability per hour

4. Working temperature

5. Material required

6. Qty required

7. Etc,The more you provide,the better we can consider for design

You can also give us your drawings,we can make it upon all dimensions you provided.
