    PP Horizontal Double-Stage Pusher Centrifuge/Salt Filtration Centrifuge/Filter Centrifuge

    Ask Lasest Price
    Brand Name : Peony
    Model Number : PP
    Certification : CE,ISO
    Price : FOB,USD
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 50 working days
    • Product Details
    • Company Profile

    PP Horizontal Double-Stage Pusher Centrifuge/Salt Filtration Centrifuge/Filter Centrifuge

    Description of Salt Centrifuge Machine


    Process
    Pusher centrifuge utilize continuous filtration for the separation of suspended, fast draining, crystalline, granular or fibrous solids from the liquid phase.the solids can be washed as they are transported through the basket.


    Design concepts
    1. complete separation of mechanical unit from the process area.
    2. long and short baskets.

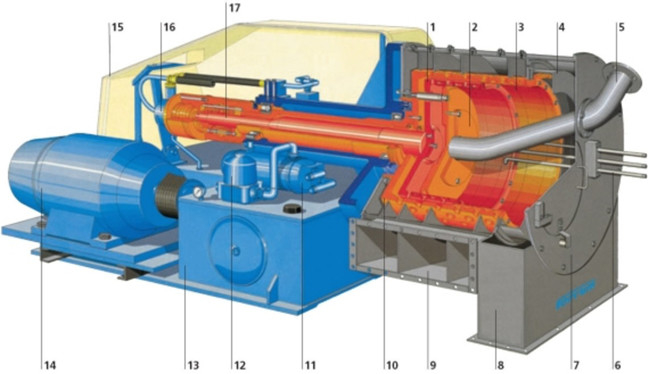

    The main motor drives the inner and outsider baskets to rotate at the full speed, material is fed into through a feed pipe. Under the centrifugal force, the liquid discharged out of the basket through filter screen and the holes of the basket, and then out of the machine through the tube for discharging liquid, while the solid deposits in the basket as a ring layer of cake. As a result, pusher plate pushes the cake layer in the inner basket to move out of it and then into the outside basket for further separation, a ring layer of cake being formed, while the outside section of the inner basket pushes the cake layer in the outside basket to move continuously out of the outside basket and then discharge it through the slot for scraper.


    Technical parameters of salt centrifuge machine

    ModelPP-40PP-50PP-60
    Basket Diameter(mm)290/360438/500560/630
    Main motor (kw)11-1537-4555
    Output (t/h)5-71220

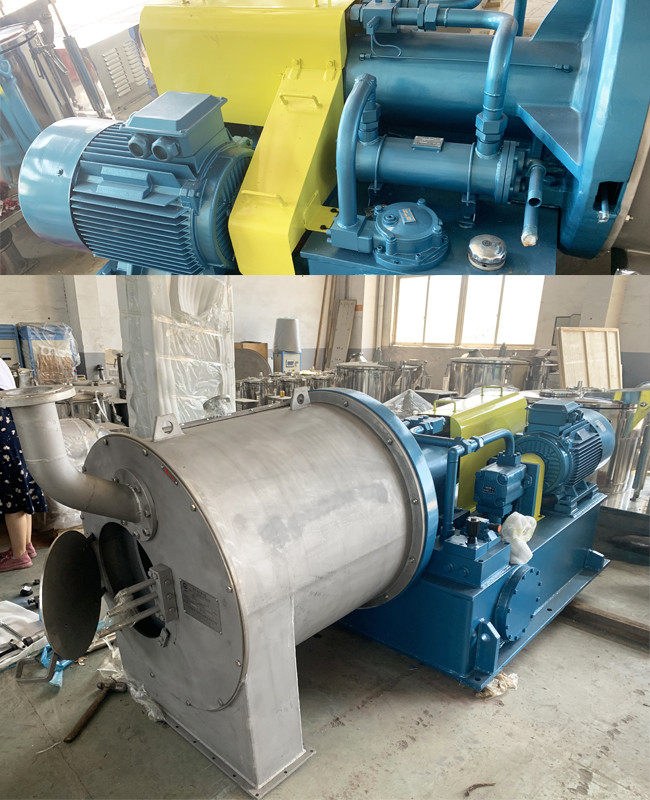

    Pictures of salt centrifuge machine

    PP Horizontal Double-Stage Pusher Centrifuge/Salt Filtration Centrifuge/Filter Centrifuge

    PP Horizontal Double-Stage Pusher Centrifuge/Salt Filtration Centrifuge/Filter CentrifugePP Horizontal Double-Stage Pusher Centrifuge/Salt Filtration Centrifuge/Filter Centrifuge


    Our Factory

    PP Horizontal Double-Stage Pusher Centrifuge/Salt Filtration Centrifuge/Filter Centrifuge

    PP Horizontal Double-Stage Pusher Centrifuge/Salt Filtration Centrifuge/Filter Centrifuge


    After sales

    *12 months guarantee period from machine arriving date.
    *Abundant spare parts in stock are availble to provide.
    *Our technicians could be dispatched for overseas service.
    *7*24 hours technical consultation.
    *Your workers could get trained both in our factory and yours.
    *Routine tracing till the machine work properly will be done timely.
    *We will remind you to do the normal maintenance.
    *Your suggestions or any comments & reflection would be treated in priority.
    *Marketing team will visit you during our visit to your country if you require.
