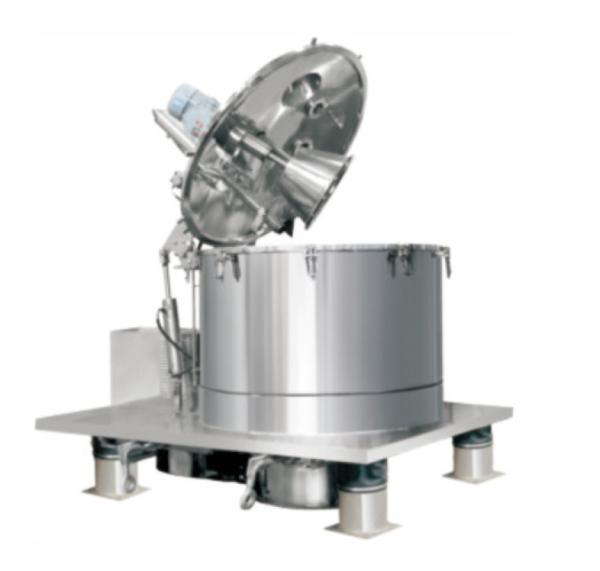

Shaking Bag Centrifuge As Stainless Steel Automatic Horizontal For
Drying Corn Starch
Intruduction
Shaking Bag Centrifuge As Stainless Steel Automatic Horizontal For
Drying Corn Starch,which is used in pharmaceutical products such as
antibiotics, vitamins and pharmaceutical intermediates, foods such
as salt, monosodium glutamate, food additives, starch, sugar making
and chemical flavoring agents, chemical raw materials such as
ammonium sulfate, gypsum, mirabilite, copper sulfate, potassium
chloride, borax, fuel, resin and pesticide, the ternary precursor
of lithium electricity, new energy industry, mining, metallurgy and
environmental protection
Technical Parameter
| Model | PPSBDF-800 | PPSBD-F-1000 | PPSBD-F-1200 | PPSBD-F-1250 |
| Loading capacity(Kg) | 135 | 180 | 320 | 400 |
| Max. Speed(r/min) | 1500 | 1080 | 970 | 1000 |
| Maximum Separating factor | 1007 | 652 | 631 | 698 |
| Motor power(Kw) | 7.5 | 15 | 18.5 | 18.5 |
1.The centrifuge adoptes whole enclosed structure with dependable
seal facility which is filled with nitrogen to meet the explosion
proof demand.
2. Adopted with quick open clamshell structure and the optional
swash plate distributor, products can be distributed evenly to
reduce vibration caused by unbalanced distribution. with additional
washing function, it has a better cleaning effect.
3. The motor is set on top of the machine and directly linked to
main shaft which will bring higher transmission efficiency and
reduce friction powders.
4. Pneumatic assisted scraper is adopted to remove the remnant
filter cake and CIP system is optional to secure clarity to be in
accordance with GMP Norm.
5. Frequency control system is adopted to assure a stable start-up.
PLC is adopted to ensure a complete automatic process including
feeding, filtering washing and discharging etc. lt adopts
dynamic(regenerative) breaking without fiction powder pollution and
friction heat so it is much safer
6. No need of human supervision. Following security systems are
adopted: self-monitoring and protecting system, speed inspection,
product level detection, over-vibration protection, over-heat
,protection for motor, mechanical and electric double interlock for
scraper rotary and movement, interlock for lid's open and machine's
running.
Main Characteristics
PPSBD centrifuges have a perfect automatic performance and a large
processing capacity. It is mainly used for solid-liquid separation
of various solid particles, and can also be used for solid-liquid
separation of fibrous materials.
Especially for the separation of high viscosity, fine particle
size, toxic, flammable and explosive materials. In accordance with
users’ demand,procedures such as feeding, separating washing,
dehydrating and discharging can all be automatically finished
followed by remote control. It's suitable for solid-liquid
separation of fibroid products as well as suspension which contains
fine grains and medium size grains solid. For example: chemical
industry products such as :gypsum,ammonium
sulphide,bluestone,potassium chloride, borax, dyestuff,
resin,pesticide and pharmaceutical products such as:salt,
monosodium glutamate, food additive, starch, sugar, flavoring,
antibiotic, vitamin and other industries such as mining and
environmental protection ect.
Properties and Uses
The centrifuge is a filter centrifuge with automatic clearance
operation for scraper unloading. In this machine I:, it can
automatically or manually carry out periodic cyclic operation of
material avoidance, separation, washing, unloading and screen
washing. All processes of the machine are carried out at full
speed.
The machine adopts electric hydraulic combined control system and
has independent electric control system and hydraulic system.
During automatic operation, the operation time of each process of
the machine is controlled by the electrical control system and can
be adjusted within a certain time range.
Automatic Centrifuge adopts platform structure,with out housing
welded with chassis.Adopting quick open structure,shell cover is
fixed to shell body with flange hydraulic pressure is applied to
open the lid,Shell cover is equipped with feeding pipe,washing
pipe,sight glass viewing-light,scraper device,and man hole and so
on,standard flanges are applied for the joints connected to
external pipe.
Features
1) PPSBD series centrifugal machine is a kind of filtering
equipment adopting peeler bottom-unloading and interval operation
2) The material enters the rotary drum from the upper
3) Under the function of centrifugal force, the liquid passes
through the filtering medium and discharges out of the machine and
the solid is left in the rotary drum
4) When the rotary speed reduces, the scraper scrapes the solid
material and the material is discharged from the bottom of the
machine
5) Advantages: steady operation, convenient operation
6) Can set operation program according to demands, auto finishes
feeding material, separating, dewatering, unloading, and other
processes
7) Can carry out the long-distance operation
8) High automation level, large handling capacity, and good
separation result
9) No base installation
This series of centrifuges has the following advantages:
1.The machine adopts hydraulic control, with high degree of
automation and stable and reliable operation.
2.The electrical system adopts advanced programmable controller
(PC), with accurate and reliable control action, small volume,
convenient adjustment and maintenance, high efficiency and long
service life.
3.The rubber damping pad is designed to greatly reduce the harm to
the plant and equipment when the machine vibrates.
4.This machine is driven by hydraulic coupling. It is not necessary
to replace the friction plate as frequently as the friction
centrifugal clutch.
5.The machine is equipped with a material layer controller, and the
user can arbitrarily adjust and control the thickness of separated
materials in the drum according to the use requirements.
Application
General requirements for the application scope of horizontal
scraper discharge centrifuge: separation of solid-liquid two phases
with particle size of 10 ~ 500um, solid concentration of 20 ~ 80%
(weight concentration) and liquid viscosity less than 10-2Pa. S. In
addition, it can also meet the requirements of washing the solid
phase. The machine has been widely used in chemical industry, light
industry, food, pharmaceutical and other industries. The separated
materials include sulfuric acid, sodium sulfate, sodium chloride,
boric acid, starch, pesticide, synthetic resin, potassium chloride,
light sodium carbonate, polyvinyl alcohol, polyformaldehyde,
polyethylene, sodium sulfate, caustic soda, salt, chemical
fertilizer, aluminum sail, synthetic rubber, etc.
1) Suitable for separating suspensions with solid grains larger
than 0.01mm
2) Widely used in chemical, pharmaceutical, food, light industry,
and other trades
3) Most commonly used for gypsum, ferric sulfate, nickel sulfate,
copper sulfate, potassium chloride, acetate, borax, soda, rubber
additives, dye, plastic raw material, soap, grease, resin, salt,
gourmet powder, food additives, vitamins, herbicides, insecticides
and dewatering of copper, zinc, aluminum, and other mineral powders
Photos at site
