Large Capacity Vertical Type Scraper Discharge Bag Pulling Centrifuge

Intruduction

This shaking bag centrifuge has a perfect automatic performance and a large processing capacity. In accordance with user's demand, procedures such as feeding, separating, washing, dehydrating and discharging can all be automatically finished followed by remote control.

It is suitable for solid-liquid separation of fibroid products as well as suspension which contains fine grains and medium size grains solids. For example: chemical industry products such as gypsum, ammonium sulphide, bulestone, potassium chloride, borax, dyestuff, resin, pesticide and pharmaceutical products such as salt, monosodium glutamate, food additive, starch, sugar, flavoring, antibiotic, vitamin and other industries such as mining and environmental protection, etc.

Structural diagram

Working principle

During the process of discharing, the scraper acts, under the impact of it most products are discharged through the blanking hole on the bottom of drum to the outside. The remnant product layer will be removed because of oscillation effect by the influence of automatic shaking-bag mechanism inside the drum.

Technical Parameter

Main Characteristics

1. Upper setting is adopted on motor design which connects directly with main shaft by coupling it will avoid powder pollution because of belt friction during common transmission.

2. Welded structure is adopted between housing and base. It has advantage of high intensity,simple and tight structure and so on.

3. Frequency speed regulation is adopted to ensure a stable start it can protect motor from over effectively.

4. PLC control is adopted to ensure automatic running.

5. Gas assisted scraper device is adopted to remove remnant filter cake. It can improve the effect of separation.

6. PPSBD is equipped with liquid state damp shock absorber which can ensure stable running and convenient operation

Centrifuge adopts no basis installation,which can make installation and maintenance conveniently.

Standard Configure

PLC plus frequency conversion control, dynamic braking,contact product level detection. Stand explosive-pr motor: Spot Explosive-proof operation case. Hydraulic combined scraper.

Standard Structure Form

PPSBD is platform structure and Welding are adopted between shell bucket and base plate or pedestal, bearing seat welded with lid together is connected with housing by flange and fixed by bolts. It is equipped with feeding pipe, washing pipe, sight glass, observation lamp,product level detector man hole etc.

Configuration

1. Explosive-proof frequency conversion or common motor(permanent torque).

2. Pneumatic assisted scrapper

3. Regenerative braking, common or explosive-proof touching screen

4. Vibration protection, nitrogen protection speed monitor

5. Oxygen-containing monitor or nitrogen pressure control

6. Liquid seal of mother liquid outlet

7. CIP device, gas auxiliary scrapper device

8. Non-contact product level detector

9. Automatic residual cakes removing device

10. Other requirements of configuration

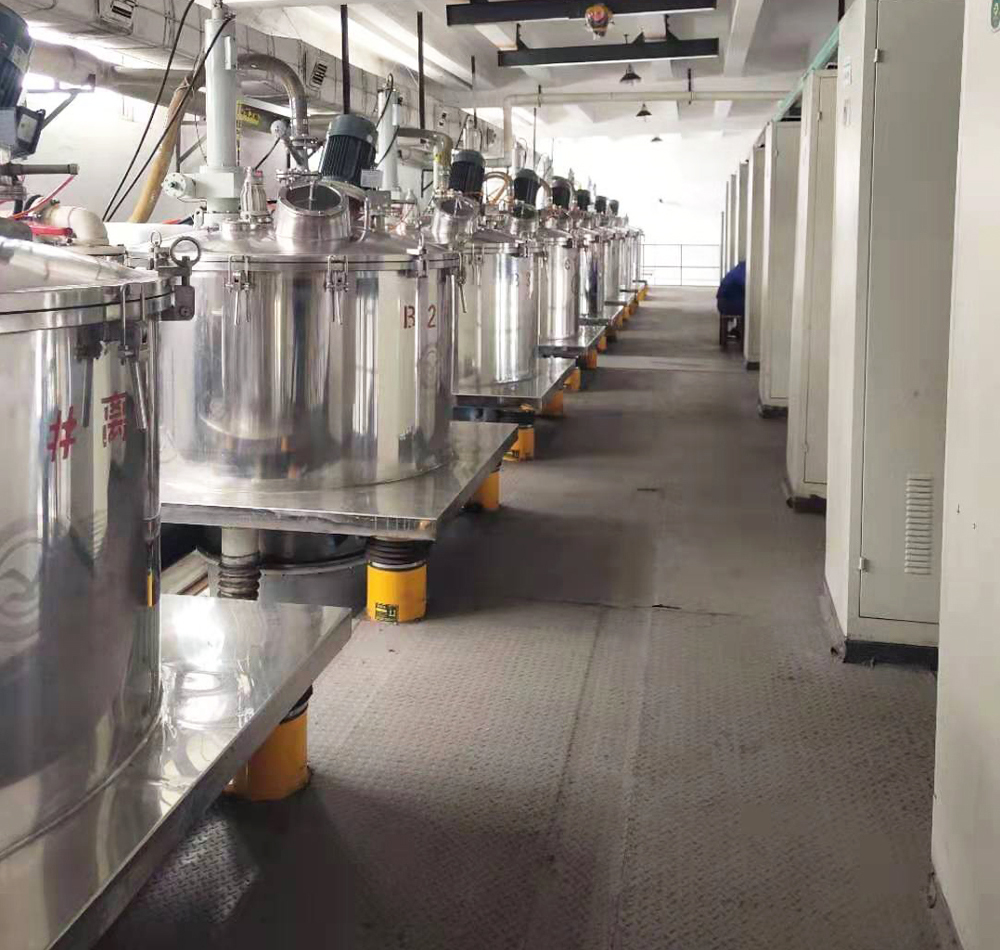

Site photo
