    SS316 Bottom Discharge Horizontal Peeler Basket Centrifuge With Oxygen Measuring Device

    Ask Lasest Price
    Brand Name : Peony
    Model Number : PPSBD
    Certification : ISO
    Price : USD20000-85000/set FOB Shanghai
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 sets/month
    Delivery Time : 60-75 days after deposit
    • Product Details
    • Company Profile

    SS316 Bottom Discharge Horizontal Peeler Basket Centrifuge With Oxygen Measuring Device

    Horizontal Peeler Bag Pullling Centrifuge Bottom Discharge With Oxygen Measuring Device

    Intruduction

    Horizontal Peeler Bag Pullling Centrifuge Bottom Discharge With Oxygen Measuring Device,fully conformed to GMP CGMP Norm and meet the requirements of asepsis raw medicine production.

    With absolute isolation between power area and process area.It is suitable for occasion when customer requires high quality cleaning to avoid the contamination to product.The out shell bucket can be opened, so the whole internal parts can be observed and easy for touch wiping and cleaning.Perfect CIP system can be carried out to wash the internal parts of centrifuge to avoid cross contamination which are not easy to clean.
    Unique pneumatic counter-pulse device is equipped, which can remove remnant filter cake as much as possible. Totally-enclosed structure equipped with inert gas protection is adopted to be used in ex-proof 1 section.The automatic residual cakes removing device is optional (have owned the national patent).

    Technical Parameter

    ModelPPSBDF-800PPSBD-F-1000PPSBD-F-1200PPSBD-F-1250
    Loading capacity(Kg)135180320400
    Max. Speed(r/min)150010809701000
    Maximum Separating factor1007652631698
    Motor power(Kw)7.51518.518.5

    Main Characteristics

    1.The centrifuge adoptes whole enclosed structure with dependable seal facility which is filled with nitrogen to meet the explosion proof demand.

    2. Adopted with quick open clamshell structure and the optional swash plate distributor, products can be distributed evenly to reduce vibration caused by unbalanced distribution. with additional washing function, it has a better cleaning effect.

    3. The motor is set on top of the machine and directly linked to main shaft which will bring higher transmission efficiency and reduce friction powders.

    4. Pneumatic assisted scraper is adopted to remove the remnant filter cake and CIP system is optional to secure clarity to be in accordance with GMP Norm.

    5. Frequency control system is adopted to assure a stable start-up. PLC is adopted to ensure a complete automatic process including feeding, filtering washing and discharging etc. lt adopts dynamic(regenerative) breaking without fiction powder pollution and friction heat so it is much safer

    6. No need of human supervision. Following security systems are adopted: self-monitoring and protecting system, speed inspection, product level detection, over-vibration protection, over-heat ,protection for motor, mechanical and electric double interlock for scraper rotary and movement, interlock for lid's open and machine's running.


    Properties and Uses

    PPSBD centrifuges have a perfect automatic performance and a large processing capacity. In accordance with users’ demand,procedures such as feeding, separating washing, dehydrating and discharging can all be automatically finished followed by remote control. It's suitable for solid-liquid separation of fibroid products as well as suspension which contains fine grains and medium size grains solid. For example: chemical industry products such as :gypsum,ammonium sulphide,bluestone,potassium chloride, borax, dyestuff, resin,pesticide and pharmaceutical products such as:salt, monosodium glutamate, food additive, starch, sugar, flavoring, antibiotic, vitamin and other industries such as mining and environmental protection ect.

    Automatic Centrifuge adopts platform structure,with out housing welded with chassis.Adopting quick open structure,shell cover is fixed to shell body with flange hydraulic pressure is applied to open the lid,Shell cover is equipped with feeding pipe,washing pipe,sight glass viewing-light,scraper device,and man hole and so on,standard flanges are applied for the joints connected to external pipe.

    SS316 Bottom Discharge Horizontal Peeler Basket Centrifuge With Oxygen Measuring Device


    Features

    1) PPSBD series centrifugal machine is a kind of filtering equipment adopting peeler bottom-unloading and interval operation
    2) The material enters the rotary drum from the upper
    3) Under the function of centrifugal force, the liquid passes through the filtering medium and discharges out of the machine and the solid is left in the rotary drum
    4) When the rotary speed reduces, the scraper scrapes the solid material and the material is discharged from the bottom of the machine
    5) Advantages: steady operation, convenient operation
    6) Can set operation program according to demands, auto finishes feeding material, separating, dewatering, unloading, and other processes
    7) Can carry out the long-distance operation
    8) High automation level, large handling capacity, and good separation result
    9) No base installation

    SS316 Bottom Discharge Horizontal Peeler Basket Centrifuge With Oxygen Measuring Device
    Application

    1) Suitable for separating suspensions with solid grains larger than 0.01mm
    2) Widely used in chemical, pharmaceutical, food, light industry, and other trades
    3) Most commonly used for gypsum, ferric sulfate, nickel sulfate, copper sulfate, potassium chloride, acetate, borax, soda, rubber additives, dye, plastic raw material, soap, grease, resin, salt, gourmet powder, food additives, vitamins, herbicides, insecticides and dewatering of copper, zinc, aluminum, and other mineral powders

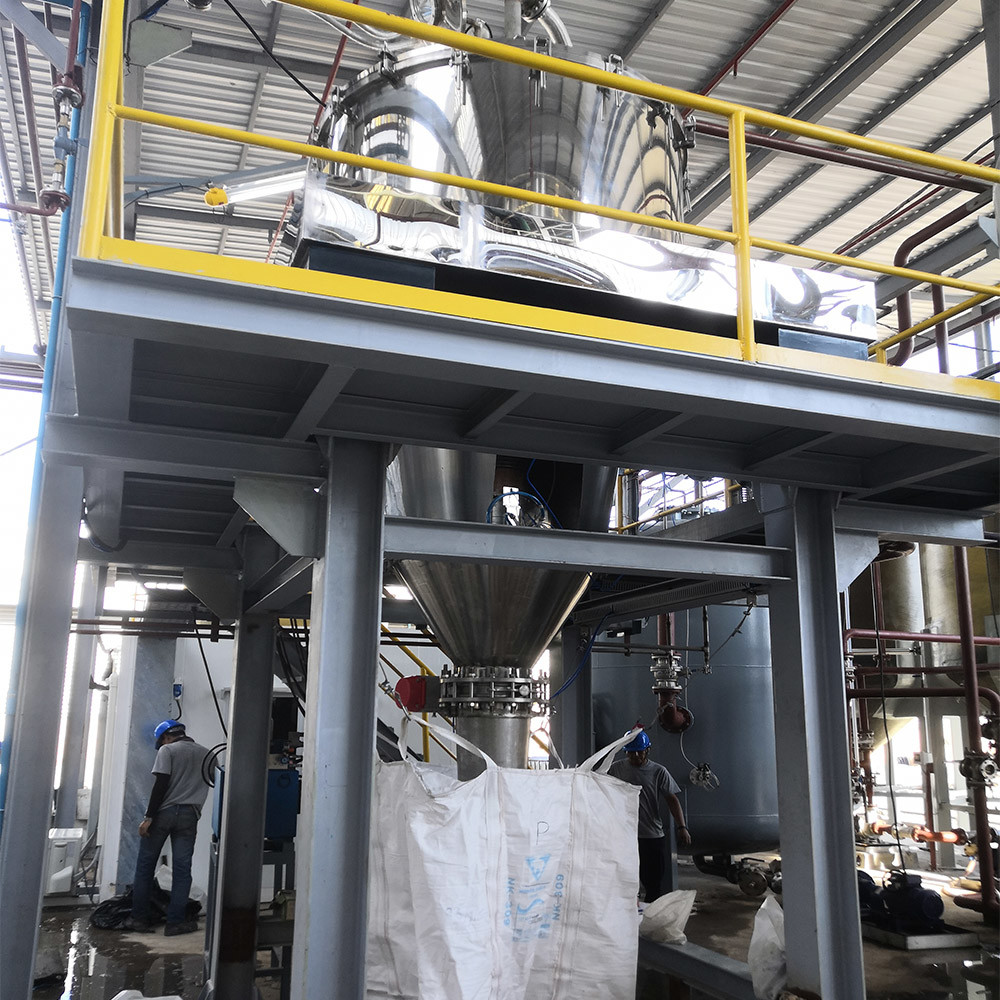

    Photos at site


    Guarantee
    Peony Centrifuge has been dedicated to producing machinery and equipment and carrying out facility construction, pursuing the best quality, and producing the best product at the same time.
    We are committed to rewarding you with better quality in return for our interest in and faith. We will do our utmost for one more stepping forward, based on our infinite services and trust in customers.


    Ceritification

    SS316 Bottom Discharge Horizontal Peeler Basket Centrifuge With Oxygen Measuring Device

    SS316 Bottom Discharge Horizontal Peeler Basket Centrifuge With Oxygen Measuring Device
