    20MW Self Cleaning Diesel Oil Separator Skid Module For Ship Marine Engine

    Ask Lasest Price
    Brand Name : Peony
    Model Number : PDSD
    Certification : ISO
    Price : USD30000-125000/set FOB Shanghai
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50 sets per month
    Delivery Time : 90-120 days
    • Product Details
    • Company Profile

    20MW Self Cleaning Diesel Oil Separator Skid Module For Ship Marine Engine

    Self-Cleaning Diesel Oil Separator Skid Module For Ship Marine Engine


    Product Overviews

    Module PDSD separator is mainly used to remove water and mechanical impurities from diesel oil, lubricating oil, and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machines, and prolong engine life. The model is also used to separate two unsolvable liquids with different specific gravity or remove a small number of solid particles from the liquid.

    The machine adopts automatic control and has the advantages of high efficiency, low oil consumption, convenient operation, and economic maintenance cost.

    The clear oil and dirty water are pumped out by a centripetal pump, the sludge is discharged automatically and fully.

    The machine is one kind of rotary machine with high speed. After accurate dynamic balancing, it can run for a long time with low vibration, safety, and security.

    The design, product, and acceptance are conformed to the standard of GB/T5745 “Marine Disc Separator”.


    Module PDSD14000 test running video for your checking: https://youtu.be/hYE3SY3hWJU

    Parameters

    ModelPDSD14000
    Rated capacity0# Diesel oilL/h14000
    180cst/50℃Fuel oil8400
    380cst/50℃7000
    SAE30/40 Lube oil7000
    Bowl rotating speedrpm7800
    The output pressure of clear oilMpa≤0.2
    The output pressure of sewageMpa≤0.3
    Motor powerkW11-15
    Weight(special tools included)kg730
    The full volume of the slag cavityL2
    Discharge TypeVariable discharge
    Type of outputCentripetal pump
    Dimension of a single machineL × W × H (mm)1200*810*1225

    Oil supply pump

    ModelACG045N7NTBP
    Flow rateL/h11000
    Bowl rotating speedrpm7800
    Output pressureMpa0.5
    Motor powerkW4kw

    Scope supply of each unit

    NO.NameQuantityRemark
    1Separator PDSD140001Ex-proof motor
    2Electric control box ASD-W1Two-in-one
    3Ex-proof junction box BF281581
    4Oil supply pump ACG045N7NTBP 4KW1Ex-proof motor
    5Steam heater1
    6Check valve DN32 1.6Mpa1
    7Temperature sensor B4011
    8Pneumatic Three-way valve BURKTER 2002 DN321
    9Slag pump 25YW-8-22 1.1Kw1Ex-proof motor
    10Liquid level switch UQK-01-C1
    11Vacuum gauge ZC-60N(-0.1-0MPa)1
    12Pressure gauge YC-60N (0-0.6MPa)1
    13Air pressure-reducing valve YSC YAW-201
    143/2 solenoid valve Germany Burkert 6014 24VDC1Ex-proof
    15Ball valve Q11F-20T DN152
    16Brass filter ball valve Q11F-20T DN251
    17Pressure-reducing valve Y12X-16T DN251
    182/2 solenoid valve Germany Burkert 5281 24VDC2Ex-proof
    19Moisture sensor1
    20Skid (slag box contained)1

    Condition for mineral oil separation and actual capacity (refer to the chart)

    Oil typesFuel oilLubrication oil
    Fuel oilHeavy fuel oilSAE30, 40Detergence oilSteam turbine oil
    Kinematical viscosity (mm²/s)1.9-5.55.5-24120180380100-12061.2-74.8
    40°C50°C40°C40°C

    Density

    (kg/m³)(20°C)

    < 900900-991880-900< 900
    Separating temperature (°C)Normal temperature, 40-60 best90-9880-95
    Recommended capacity (L/h)17500140007700~84006300~70004900~56007000~84003500~420011200~11900
    If you have special requirements, please connect with us.

    *Reserve the right to change specifications without prior notification.

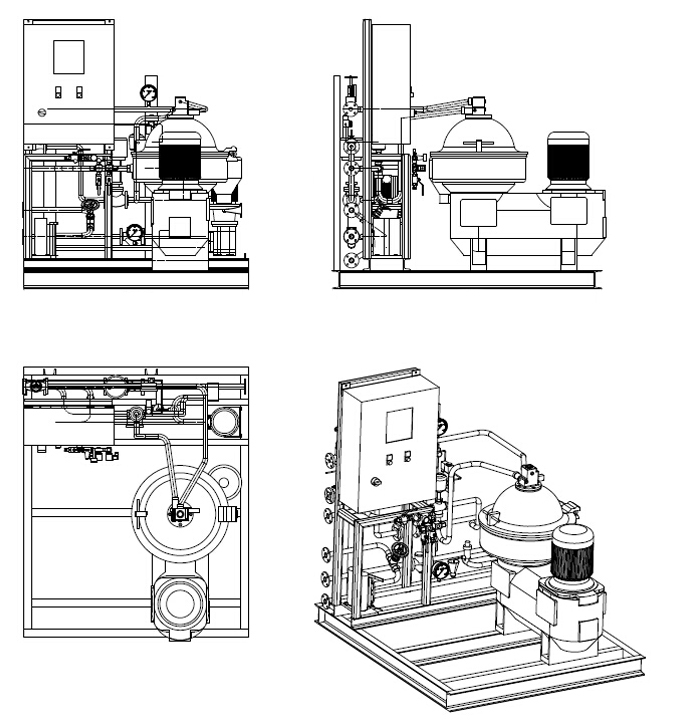

    Drawing

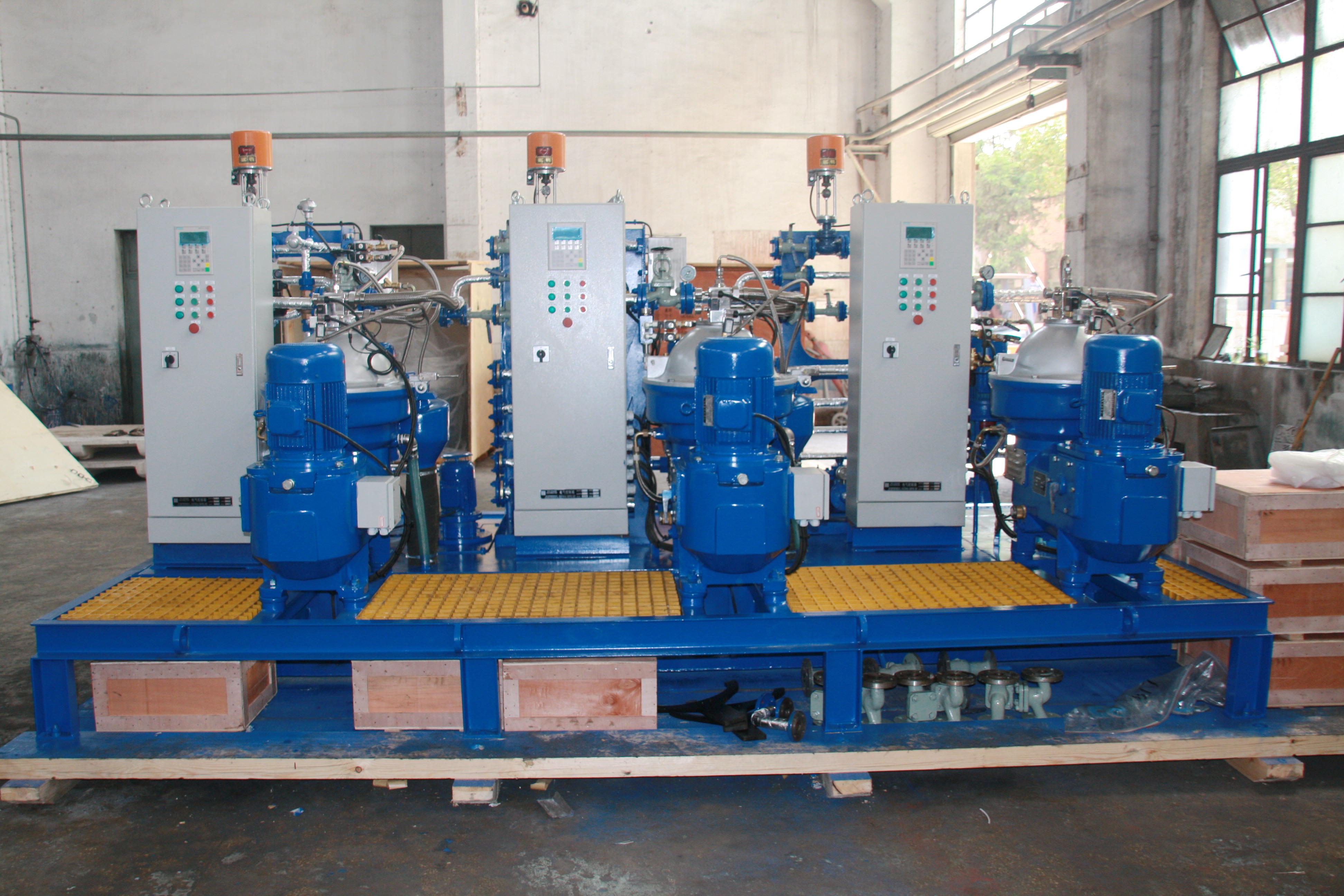

    More Pictures
