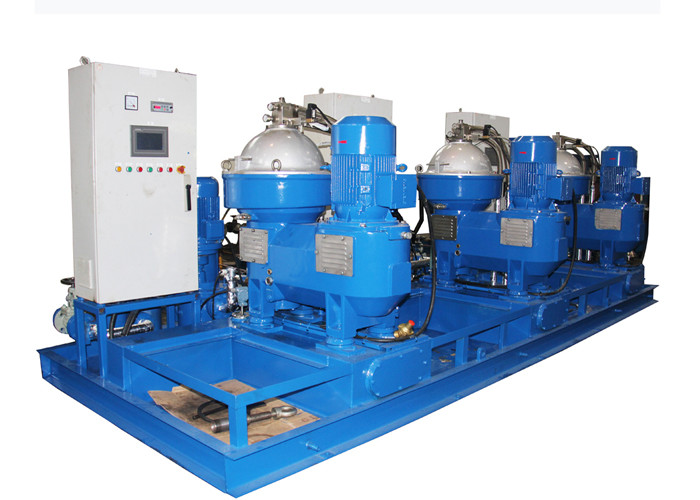

14000LPH 3-phase Oil Water Solid Centrifugal Oil Separator Full Hydraulic

Description:

Model PDSD14000 separator is mainly used to remove water and mechanical impurities from diesel oil, lubricating oil, and other mineral oil in marine diesel engine units and land-used diesel generator units of power stations so as to reduce wear of the diesel engine and other machines, and prolong engine life. The model is also used to separate two unsolvable liquids with different specific gravity or remove a small number of solid particles from the liquid.
The machine adopts automatic control and has the advantages of high efficiency, low oil consumption, convenient operation, and economic maintenance cost.
The clear oil and dirty water are pumped out by a centripetal pump, the sludge is discharged automatically and fully.
The machine is one kind of rotary machine with high speed. After accurate dynamic balancing, it can run for a long time with low vibration, safety, and security.
The design, product, and acceptance are conformed to the standard of GB/T5745 “Marine Disc Separator”.

Advantages:

1. Moisture sensor(No-gravity ring) technology is adopted to ensure the quality of the oil after separation.
2. Bowl with a full hydraulic structure brings more thorough stage discharge and more stable and reliable performance.
3. The new type of seamless belt drive(No second tensioning required) brings a more reliable structure and a more simplified mechanical structure.
4. High rotating speed ensures the best separation effect.
5. Our separator is low power consumption and is lightweight, which is in accordance with the requirements of the national industry.

Main Technical Specification:

Value Analysis:

1. According to the requirements of each classification society, all modules are equipped with oil leak alarms and high-temperature alarms.
2. Oil. hydraulic, pneumatic control part adopts the Brand Baode (Germany).

3. Heater adopts the brand SWEP (Germany).

4. Pressure control adopts Korean products or products

5. Screw pump is used instead of the gear pump.

6. All are equipped with automatic temperature control devices (Made by RTK production in Germany or made in China)
7. The main electrical components of the standard electrical control boxes are produced by Schneider company while PLC is produced by Siemens or Mitsubishi.
8. The complete sets referred to above are all Peony's production of automatic Standard Controls and we certainly can modify the configuration list according to customers’ specified requirements.

Peony organizes the model selection question as below:

1)How many kinds of oil can you separate?
This series separator is widely used for kinds of oils, especially for Marine diesel oil and the similar oil, such as light fuel oil, heavy fuel oil, lubrication oil, steam turbine oil, detergence oil, engine oil, etc

2)How can you select a suitable capacity?
Different oil has different capacity, our 1500L, 2000L, 3000L, 4000L, 5000L, 6000L, 8000L ,10000L capacity is for the Marine diesel oil 0# as sample. It also depends on the viscidity and temperature, and for all the capacity models, we have an oil characteristic sheet to help our customer to find out what their oil is, and what capacity their oil belongs to.

3) Is your separator self-cleaning?
We have 3 types of discharge means according to different materials and customer's requirements, we have a self-cleaning model and a manual cleaning model.
1. Manual discharge model for the oil with very less solid component
2. Full discharge model for the big capacity treatment and a little solid component
3. Partly discharge model for the bigger capacity treatment and more solid component

4). Variable discharge model

No.full discharge type and partial discharge type are both self-cleaning models.
4)Will you help us to select the model?
Yes, you can select the model by yourself, or as long as you provide your material characteristic, we have a professional engineering team to help you select the suitable machine

5)Do you only have a single machine or a unit?
Both we have.

Guarantee:

Peony has advantages in price, service, and quality. We have Military Product Quality System Certification,

CE certificate, Quality System Certification, many professional types of equipment, and advanced designs.

Overviews:

Basic Information

Zhangjiagang City Peony Machinery Co., Ltd., founded as a special producing enterprise of separating equipment in 2008, is the well-known manufacturer and service provider of separation and filtration in China. Peony dedicated to solving the solid-liquid, liquid-liquid separation problems for clients all over the world and providing separating and filtering mechanical products with convenient operation, high efficiency, reliable quality, and excellent service worldwide. Being a group corporation, Peony has 3 producing bases in China - Zhangjiagang, Nanjing, and Hangzhou city.

Products

As the professional supplier of separating and filtering equipment, we produce basket centrifuges, decanters, and disc separators starch product line, and sell the auxiliary equipment such as clarify equipment, filters, pumps, etc. These 25 series of more than 150 products are self-development of Peony and have attained national patent. Those products and relevant auxiliary equipment are widely used in chemical, petroleum, pharmacy, mining, food, beverage industry, and environmental protection.

We own various kinds of inspection and testing facilities with a value over USD10million, now,16 testing tables,6920 gear testing center, X-ray detecting machine, high-speed dynamic balancing machine, ultrasonic flaw detection machines, etc, we are equipped with complete testing, inspection, analysis control system, advanced testing machines and simulative working condition test table and automatic control testing system, which guarantees our new product research, processing validation, and quality.

We have strongly equipped the robust and precise processing machines from Germany, Italy, England, and our domestic famous brand, here, I'd like to list several of them for your reference.
200 Numerical Control Boring and Milling Machine TK6920
160 Numerical Control Boring and Milling Machine TK6916
Italian PAMA Numerical Control Boring and Milling Machine
80T CNC Lathe
40 T CNC Lathe
2.5m Merry Go Round Machine C525E
Z100 Radial Drill
Numerical Controlled Vertical Milling Machine
Underwater Plasma Cutting Center
CNC Machining Center


We harvested great achievement these years, and turnover reaches to 380million RMB in
the year 2013, and we expect to carry out 500million RMB in 2015.

Welcome all who are engaged in the separation and filtration to work with us, and we are also looking for qualified world wide agents to provide better service and deep marketing.

Worldwide Network

Our products have spread all over the world and are applied over 35 countries and regions, for example, America, Germany, Italy, Sweden, Canada, Singapore, Australia, Brazil, Russia, India, Middle East, and Southeast Asia, etc. To provide flexible and qualified technical service to resolve any maintenance issue in the shortest time possible, now we have established agents in many countries such as Brazil, Colombia, Latin America, Bangladesh, Southeast Asia, etc.

Society Reward

Peony is devoting into the charity activity, we are subsidizing some poor students to finish the school and are trying to set up some primary to feedback the society, hereby, we appeal to all people to enter into the charity activity, technical innovation changes the world, love embraces the world!
