Automatic 3000L/H 3 Phases Marine Oil Disc Stack Separator

    Buy cheap Automatic 3000L/H 3 Phases Marine Oil Disc Stack Separator from wholesalers

    Buy cheap Automatic 3000L/H 3 Phases Marine Oil Disc Stack Separator from wholesalers
    • Buy cheap Automatic 3000L/H 3 Phases Marine Oil Disc Stack Separator from wholesalers
    • Buy cheap Automatic 3000L/H 3 Phases Marine Oil Disc Stack Separator from wholesalers
    • Buy cheap Automatic 3000L/H 3 Phases Marine Oil Disc Stack Separator from wholesalers

    Automatic 3000L/H 3 Phases Marine Oil Disc Stack Separator

    Ask Lasest Price
    Brand Name : Peony
    Model Number : PDSD3000
    Certification : CCS,CE,ISO
    Price : USD 10000-80000
    Payment Terms : TT,.LC
    Supply Ability : 100sets per month
    Delivery Time : 45days
    • Product Details
    • Company Profile

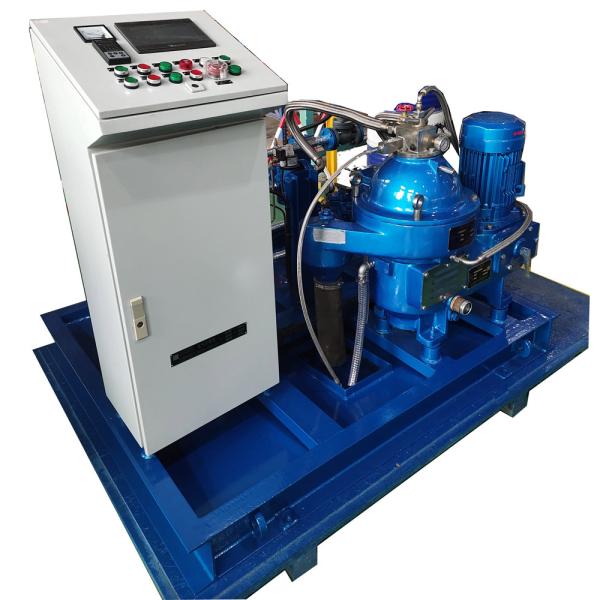

    Automatic 3000L/H 3 Phases Marine Oil Disc Stack Separator

    Disc Centrifuge Supplier Used Marine Oil Separation in Shipping Industry


    Description


    Model PDSD3000 separator is mainly used to remove water and mechanical impurities from diesel oil, lubricating oil and other mineral oil in marine diesel engine unit and landused diesel generator unit of power station so as to reduce wear of the diesel engine and other machine, and prolong engine life.


    The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.


    The machine adopts automatic control, and has the advantages of high efficiency, low oil consumption, convenient operation and economic maintenance cost.


    The clear oil and dirty water are pumped out by centripetal pump, the sludge is discharged automatically and fully.


    The machine is one kind of rotary machine with high speed. After accurate dynamic balancing, it can run for long time with low vibration, safety and security.


    The design, product and acceptance are conformed to the standard of GB/T5745 “Marine Disc Separator”.

    Main Technical Specification

    Discharging type

    Full discharging

    Max capacity

    L/h

    3000

    Motor Power

    Kw4(380V/50Hz/3P)

    G.W.

    Kg

    612

    N.W.

    kg

    512

    Dimension

    L × W × H (mm)

    851×766× 1300



    Advantages

    • The piston type slag removal separator
    • Gear transmission
    • Adopt gravity disc adjustment "oil-water interface



    Automatic Control System




    Condition for mineral oil separation and actual capacity (refer to the chart)

    oil typesfuel oillubrication oil
    fuel oilheavy fuel oilSAE30,40

    detergence

    oil

    steam

    turbine oil

    kinematical

    viscosity(mm2/s)

    1.9-5.55.5-24120180380100-12061.2-74.8
    40℃50℃40℃40℃
    density/(kg/m3)(20℃)<900900-991880-900<900

    separating

    temperature

    (℃)

    normal temperature

    40-60best

    90-98

    80-95

    recommended

    capacity

    (l/h)

    360030001650-18001350-15001050-12001500-1800750-9002400-2550
    If you have special requirement, Please connect with us.


    Overview

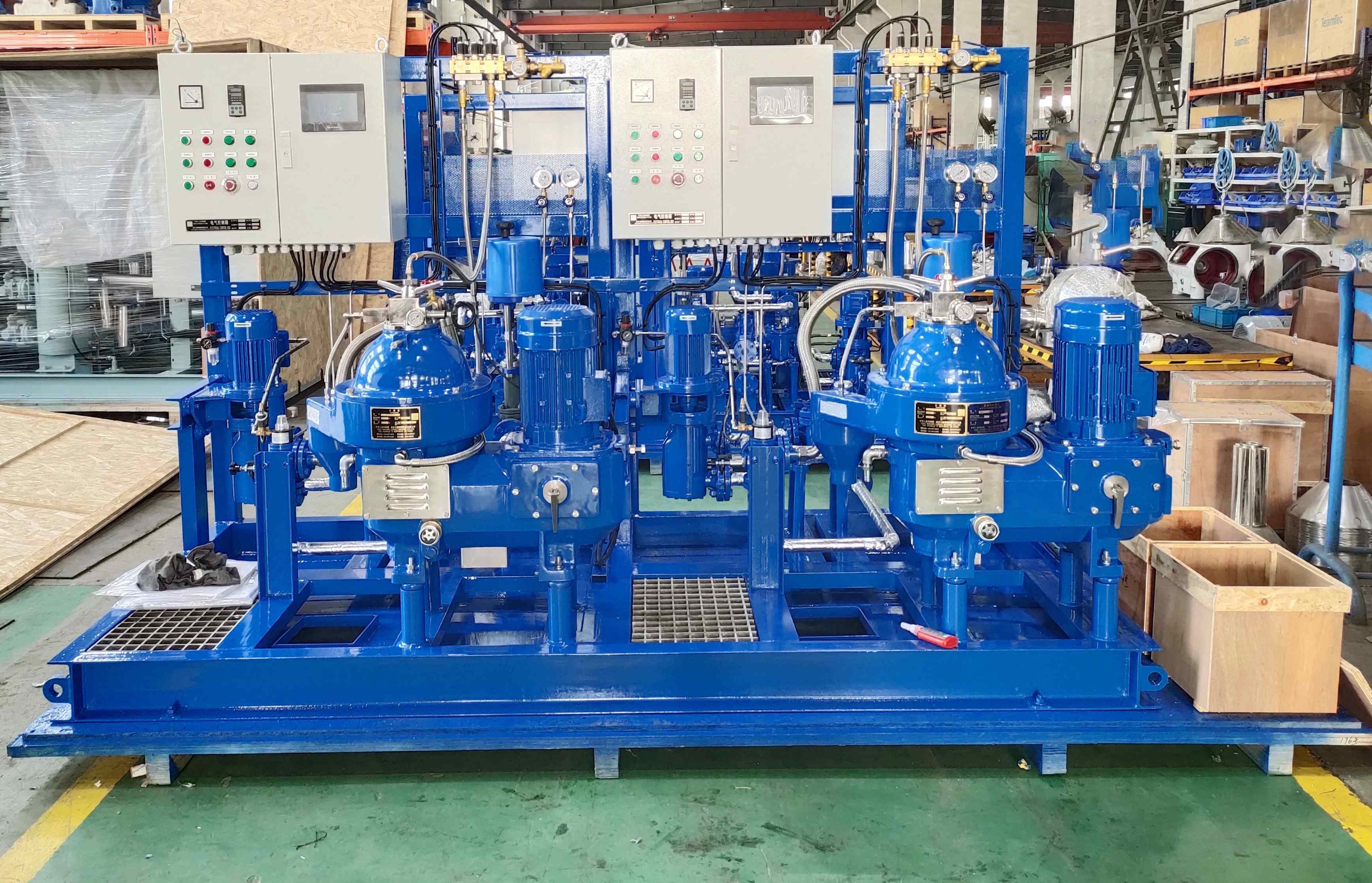

    (Testing table to test all the parameters before factory leaving)


    Guarantee


    Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time. We are committed to reward you with a better quality in return for our interest in and faith toward. We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
