    Stainless Steel Pusher Type Centrifuge Salt Making Machine

    Ask Lasest Price
    Brand Name : PEONY
    Certification : CE
    Price : 25800
    Delivery Time : 60-90 days after down payment
    Payment Terms : T/T D/A D/P L/C
    Supply Ability : 5 sets/month
    Model Number : HR
    • Product Details
    • Company Profile

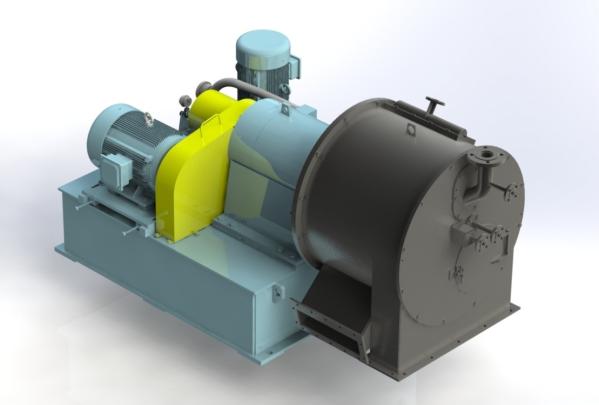

    Stainless Steel Pusher Type Centrifuge Salt Making Machine

    Stainless Steel Pusher Centrifuge and other Salt Making Machine

    Product Overviews

    PP Series Two-stage Pusher Centrifuge is a kind of perforated basket centrifuge, both continuous and effective.

    The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage

    basket.

    Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine.

    The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket.

    The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterwards, the cake is continuously discharged out of the basket. In case of high purity for the solid product, the effective washing can be carried out in the centrifuge.

    If necessary, the washing agent and the mother-liquor can be discharged separately.

    Stainless Steel Pusher Type Centrifuge Salt Making Machine

    Technical parameter

    Model

    Basket diameter

    (mm)

    Stroke

    (times/min)

    Speed

    (rpm)

    Pressure

    (Mpa)

    Pump motor

    (kw)

    Main motor

    (kw)

    Output

    (t/h)

    Weight

    (kg)

    Overall dimension

    (mm)

    PP-40 290/360 40-80 2500 2.5 5.5-7.5 11-15 5-7 2600 2346×1090×1006
    PP-50 438/500 40-80 2000 2 22 37-45 12 4400 3600×1420×2078
    PP-60 560/630 70-80 1360 8 13-30 55 20 4860 3127×1700×1955

    Pictures

    Stainless Steel Pusher Type Centrifuge Salt Making Machine

    Flow chart

    Stainless Steel Pusher Type Centrifuge Salt Making Machine

    Whole line

    Stainless Steel Pusher Type Centrifuge Salt Making Machine

    Site Pictures

    Stainless Steel Pusher Type Centrifuge Salt Making Machine
