    Widely Used Automatic Pressure Leaf Filter for Liquid - Solid Separation

    Ask Lasest Price
    Brand Name : Peony
    Model Number : NYB
    Certification : ISO
    Price : USD2000-45000
    Payment Terms : TT,.LC, Western Union
    Supply Ability : 60 sets per month
    Delivery Time : 45-60 days after down payment
    • Product Details
    • Company Profile

    Widely Used Automatic Pressure Leaf Filter for Liquid - Solid Separation

    Automatic Pressure Leaf Filter For Liquid - Solid Separation


    Description


    Model PNYB pressure leaf filter is a high-efficient, energy-saving, and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical, and many other industries.


    Since this equipment has many advantages such as unique structure, compact volume, high filter efficiency, fineness of filtered liquor, no material wastage, the quantity of filter aid. It can be conveniently maintained, cleaned, and operated at a very low cost.



    Applications


    Oil industry: crude oil, bleached soil, hydrided oil, radonized oil, stearin, fatty acid, etc.

    Petroleum chemical products: diesel oil, lubricating oil, paraffin wax, mineral oil, etc.

    Beverage: beer, juice, wine, milk, etc.

    Organic chemical products: various organic aid, alcohol, benzene, aldehyde, etc.

    Paint: resin, varnish, dye, lacquer, etc.

    Inorganic chemical products: bromine water, potassium cyanide, fluorite, etc.

    Foodstuff: gelatin, vinegar, starch, syrup, sugar Filter screen plate water, etc.

    Pharmaceutical products: hydrogen peroxide solution, vitamin, etc.

    Mineral products: fine coal, cinder, etc.

    Others: air, depuration of water, etc.


    Main technical parameters


    Model

    Filters

    area

    (m²)

    Filters cake

    volume

    (L)

    Capacity(T/h)

    Working pressure

    (MPa)

    Working

    temperature

    (℃)

    Volume of

    filtering jar

    (L)

    weight

    (Kg)

    Oil

    Resin

    Beverage

    Rated

    Pressure

    Max

    Pressure

    PNYB-2

    2

    30

    0.4-0.6

    1-1.5

    1-3

    0.1-0.4

    0.5

    ≤150

    120

    300

    PNYB-4

    4

    60

    0.5-1.2

    2-3

    2-5

    250

    400

    PNYB-7

    7

    105

    1-1.8

    3-6

    4-7

    420

    600

    PNYB-10

    10

    150

    1.6-3

    5-8

    6-9

    800

    900

    PNYB-12

    12

    240

    2-4

    6-9

    8-11

    1000

    1100

    PNYB-15

    15

    300

    3-5

    7-12

    10-13

    1300

    1300

    PNYB-20

    20

    400

    4-6

    9-15

    12-17

    1680

    1700

    PNYB-25

    25

    500

    5-7

    12-19

    16-21

    1900

    2000

    PNYB-30

    32

    600

    6-8

    14-23

    19-25

    2300

    2500

    PNYB-36

    36

    720

    7-9

    16-27

    13-31

    2650

    3000

    PNYB-40

    40

    800

    8-11

    21-34

    30-38

    2900

    3200

    PNYB-45

    45

    900

    9-13

    24-39

    36-44

    3200

    3500

    PNYB-52

    52

    1040

    10-15

    27-45

    42-51

    3800

    4000

    PNYB-60

    60

    1200

    11-17

    30-52

    48-60

    4500

    4500

    PNYB-70

    70

    1400

    12-19

    36-60

    56-68

    5800

    5500

    PNYB-80

    80

    1600

    13-21

    40-68

    64-78

    7200

    6000

    PNYB-90

    90

    1800

    14-23

    43-72

    68-82

    7700

    6500


    Installation size


    Model

    Tube diameter

    filters pieces spacing

    Inlet and out let

    Liquid discharge

    Solid discharge

    Height

    Area

    PNYB-2

    Φ400

    50

    DN25

    DN25

    DN150

    1550

    620×600

    PNYB-4

    Φ500

    50

    DN40

    DN25

    DN200

    1800

    770×740

    PNYB-7

    Φ600

    50

    DN40

    DN25

    DN250

    2200

    1310×1000

    PNYB-10

    Φ800

    70

    DN50

    DN25

    DN300

    2400

    1510×1060

    PNYB-12

    Φ900

    70

    DN50

    DN40

    DN400

    2500

    1610×1250

    PNYB-15

    Φ1000

    70

    DN50

    DN40

    DN500

    2650

    1710×1350

    PNYB-20

    Φ1000

    70

    DN50

    DN 40

    DN500

    2950

    1710×1350

    PNYB-25

    Φ1100

    70

    DN50

    DN40

    DN500

    3020

    1810×1430

    PNYB-30

    Φ1200

    70

    DN50

    DN40

    DN500

    3150

    2030×1550

    PNYB-36

    Φ1200

    70

    DN65

    DN50

    DN500

    3250

    2030×1550

    PNYB-40

    Φ1300

    70

    DN65

    DN50

    DN600

    3350

    2130×1560

    PNYB-45

    Φ1300

    70

    DN65

    DN50

    DN600

    3550

    2130×1560

    PNYB-52

    Φ1500

    75

    DN80

    DN50

    DN600

    3670

    2230×1650

    PNYB-60

    Φ1500

    75

    DN80

    DN50

    DN600

    3810

    2310×1750

    PNYB-70

    Φ1600

    80

    DN80

    DN50

    DN700

    4500

    3050×1950

    PNYB-80

    Φ1750

    80

    DN80

    DN50

    DN700

    4500

    3210×2100

    PNYB-90

    Φ1850

    80

    DN80

    DN50

    DN700

    4650

    3300×2200


    Note filtering capacity: when oil is treated, it means the filtered volume of oils containing 2-5% of whitish soil. When the resin is treated, it means the average filtered volume of alkyd resins fineness of 5-15μm. Filtering capability is in relation to the impurity content of the medium to be filtered.

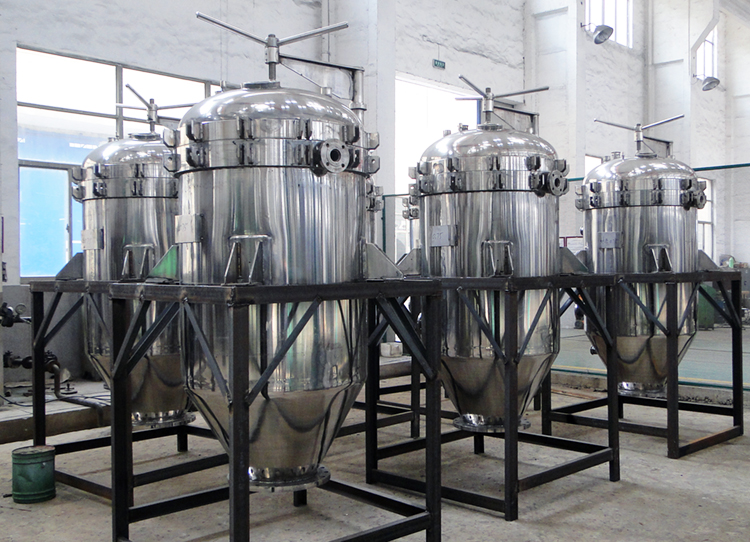

    More pictures



    Guarantee


    Peony Centrifuge has been dedicated to producing machinery and types of equipment and carrying out facility construction, pursuing the best quality, and producing the best product at the same time.
    We are committed to rewarding you with better quality in return for our interest in and faith toward.
    We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.



    PNYB Series Pressure Filter Plate Leaf filter.pdf
