    Large Volume Sodium Sulfate Dewatering Full Automatic Continuous Centrifuge Horizontal Type

    Ask Lasest Price
    Brand Name : Peony
    Model Number : PP
    Certification : ISO
    Price : USD25000~120000/SET FOB SHANGHAI
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 50 sets/month
    Delivery Time : 60-90 days after down payment
    • Product Details
    • Company Profile

    Large Volume Sodium Sulfate Dewatering Full Automatic Continuous Centrifuge Horizontal Type

    Large Volume Automatic Horizontal Type Sodium Sulfate Dewatering Chemical Centrifuge


    Description


    PP series centrifuge is a fully automatic and continuous filtering centrifuge used for solid-liquid separation in all kinds of industries. It has a unique design that minimizes moisture, impurity, and crystal breakage in discharged cake, and can perform feeding, filtration, washing, and discharging in sequence at full-speed running.


    Large Volume Sodium Sulfate Dewatering Full Automatic Continuous Centrifuge Horizontal Type


    Standards


    1. Technology is higher than TB/T447-92, and adopt international standard, German standard, and Swiss Sulzer EcherWyss standard. The design, manufacture, material, test, and inspection are in accordance with the standard JB/T4063, and JB/T447, and the effective latest version of national standards, industry standards, and enterprise standards.


    2. The quality of all the provided equipment and materials should be in accordance with the adopted rules and standards.


    3. The whole set of equipment is tested and inspected as per the following standards:

    - Choosing Rules for Welding Quality Grade N659

    - Quality Grade After Welding N658

    - Measuring and Calculating Vibration Strength ISO3954

    - Mechanical Balancing of Rotor ISO5406

    - Balance Status Evaluating of Rotating Steel DVI2060


    Technical parameters


    ModelPP-25PP-40PP-50PP-60PP-85PP-100
    Basket diameter (mm)200/251290/360438/500560/630738/820920/1000

    Stroke of the pusher mechanism

    (times/min)

    35-5240-8040-8070-8030-10830-80
    Machine speed (rpm)300025002000136015001300
    Operative oil pressure (Mpa)2.52.528812
    The motor of the oil pump (kW)45.5-7.52213-3022-4530-90
    Main motor (kW)7.511-1537-455545-10055-132
    Output (t/h)~1.55-7122025-6530-75
    Sieve slotTo be decided
    Operation temp. (°C)Below 105Below 105Below 105Below 105Below 105Below 105
    Overall dimension (mm)2155*1320*9502346*1090*10063660*1420*20783127*1700*19553990*2000*15304200*2400*2200
    Weight (kg)127526004400486062508900

    Features

    Continuous operation with large capacity

    Ideal washing effect

    The low moisture content of cake

    Less solid content loss and crystal-broken

    Suitable for abrasion filtering cake

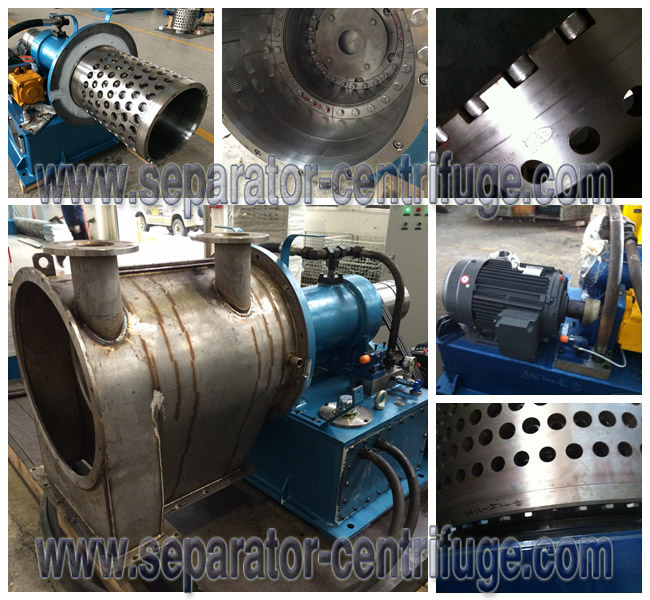

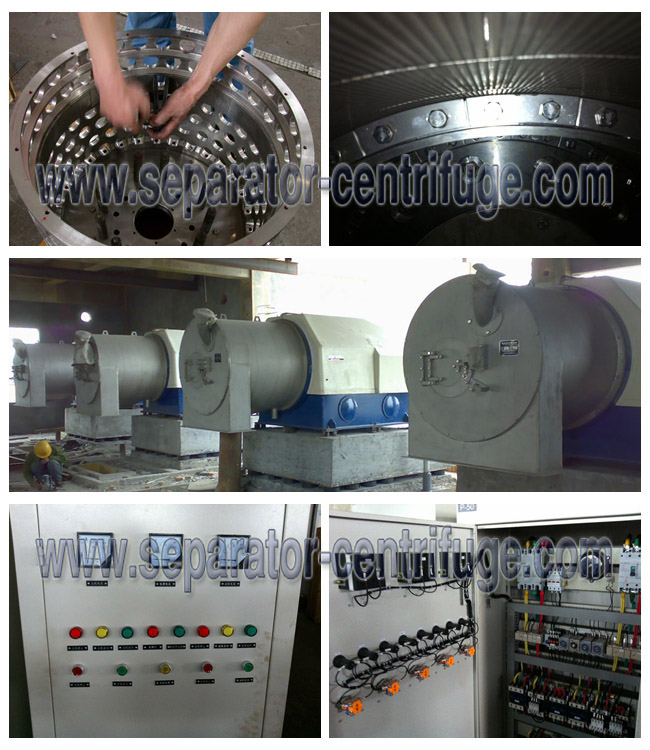

    More pictures



    Our services


    1. 12-month guarantee period from machine arrival date.

    2. Abundant spare parts in stock are available to provide.

    3. Our technicians could be dispatched for overseas service.

    4. 7*24 hours technical consultation.

    5. Your workers could get trained both in our factory and yours.

    6. Routine tracing till the machine work properly will be done timely.

    7. We will remind you to do normal maintenance.

    8. Your suggestions or any comments & reflections would be treated as a priority.

    9. The marketing team will visit you during our visit to your country if you require.
