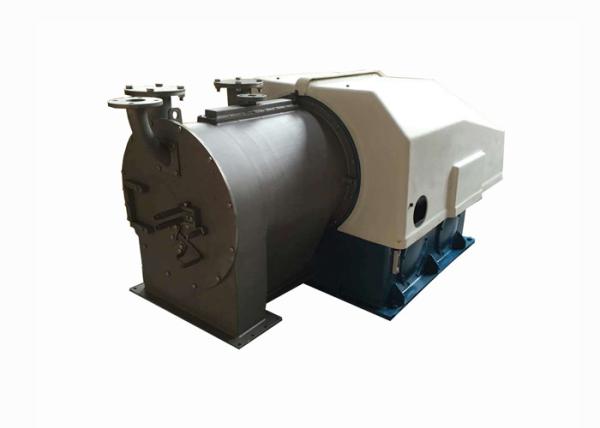

    Two Stage Pusher Perforated Basket Centrifuge For Potassium Chloride Separation

    Ask Lasest Price
    Brand Name : Peony
    Model Number : PP
    Certification : ISO,CE,ISO9001,SGS
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 20 sets/month
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    Two Stage Pusher Perforated Basket Centrifuge For Potassium Chloride Separation

    Description

    PP series Two-stage Pusher Centrifuge is a kind of perforated basket centrifuge, both continuous and effective. The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket.


    The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed.


    It is suitable for the material with solid content 40-60%,particle size larger than 0.15mm,widely used in the mineral salt ,sea salt and chemical field as CuSO4.5H2O,etc.


    Advantages
    1.Big capacity with full automatic operation
    2.Low moisture in the cake after separation
    3.Robster material to resit the corrosion,DSS material will be used as optional
    4.SKF bearing and strong collocation ,with over than 15years working life
    5.CE certificate

    Technical parameters

    Model

    PP-40

    PP-50

    PP-60

    Basket diameter (mm)

    290/360

    438/500

    560/630

    Stroke of pusher mechanism

    (times/min)

    40-80

    40-80

    70-80

    Machine speed (rpm)

    2500

    2000

    1360

    Operative oil pressure (Mpa)

    2.5

    2

    8

    Motor of oil pump (kw)

    5.5-7.5

    22

    13-30

    Main motor (kw)

    11-15

    37-45

    55

    Output (t/h)

    5-7

    12

    20

    Sieve slot

    To be decided

    Operation temp. (°C)

    Below 105

    Below 105

    Below 105

    Overall dimension (mm)

    2346*1090*1006

    3660*1420*2078

    3127*1700*1955

    Weight (kg)

    2600

    4400

    4860


    Pictures on site

    Two Stage Pusher Perforated Basket Centrifuge For Potassium Chloride SeparationTwo Stage Pusher Perforated Basket Centrifuge For Potassium Chloride Separation
