5000LPH Automatic Disc Stack Centrifuges for HFO LO Diesel Separation Purifying Machine

Brief Introduction

Model PDSD5000-F separator is mainly used to remove water and mechanical impurities from fuel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the dieselengine and other machine, and prolong engine life. The model is also used to separate two unsolvable liquids with different specificgravity or remove small amount of solid particle from liquid.

The machine adopts automatic control, it has the advantages of high efficiency, low oil consumption, convenient operation and economic maintenance cost.

The clear oil and dirty water are pumped out by centripetal pump, the sludge is discharged automatically and fully.

The machine is one kind of rotary machine with high speed, After accurate dynamic balancing, it can run for long time with low vibration, safety and security.

The design, product and acceptance are conformed to the standard of GB/T5745 “Marine Disc Separator”.

Dimensions

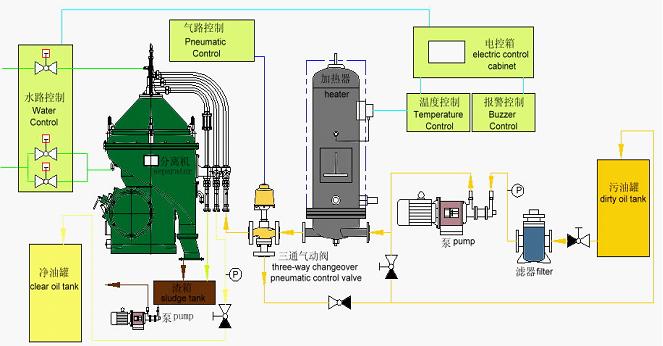

Automatic Control System

Water Control: Automatic control unlocking water, sealing water and water-seal/water switching.

Pneumatic Control: Filter and adjust compressed air, control three-way changeover pneumatic valve.

Temperature Control: Automatic control the temperature of the oil line, also control separately or with electric control cabinet at the same time.
Buzzer Control: Monitor oil temperature, pressure, over loading, non-discharging and leaking, and offer a group of passive contactor stretching out to control panel.

Description Of Supply

1. Supply scope and documents attached to the machine:one set of separator(including motor),one set of special tools,one set of spare parts,instruction manual,certificate of quality,packing list
2. If any customer option, the cost should be paid additionally:Oil feed pump,operation water tank,heater,electric control cabinet,unit module

3. Delivery Time:According to negotiation

Main Technical Specification

Condition for mineral oil separation and actual capacity (refer to the chart)

Technical analysis

Peony's Disc separator technology comparison with foreign companies

Value Analysis

1. Peony adopts SKF bearing , which is consistent with Alfa, Westfalia.

2. Alfa and Westfalia only provide clients with the bearing and the gear in the overhaul package (need to buy separately) while Peony has more sufficient attachment supply.

3. Peony never reduce the amount of spare parts and tools for users buying many sets of the same model machine. (unless the customer put forward in specially).

4. Regular spare parts are all in stock in Peony’s company.

Guarantee

Peony has advantages in price, service and quality.We have Military Product Quality System Certification, CE certificate,Quality System Certification,many professional equipments and advanced designs.

Principle and structure

Disc separator is vertical centrifuge. The drum is installed on the upper side of the vertical shaft. Driven by the motor, it will rotate at a high speed through the gearing. Inside the drum there is a group of dish parts overlaying each other – disc. There is very small gap between the disc. Suspension (or emulsion) is fed into the drum through the inlet in the middle of the drum. When the suspension (or emulsion) flows through the gap between the disc, under the action of the centrifuge, the solid particles (or droplets) go down to the disc in the formation of sediment (or liquid layer). Along the disc surface, the sediment slides out of the disc and accumulates at the part with the largest diameter inside the drum. After the separation, the liquid is discharge out of the drum from the drain outlet. The role of the disc is to reduce the sediment distance of solid particles (or droplets) and enlarge the sediment area of the drum. With the disc inside the drum, the capacity of the separator is improved greatly. The solid gathering inside the drum is manually removed by taking apart the drum after power off, or discharges from the drum through the slag-off part with the separator power on.
