6000 LPH Self Cleaning Disc Stack Centrifuges of Diesel Oil Separator Unit

Description

Model PDSD6000- B1317Z separator is mainly used to remove water and mechanical impurities from diesel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machine, and prolong engine life.

The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.

The machine adopts automatic control, and has the advantages of high efficiency, low oil consumption, convenient operation and economic maintenance cost.

The clear oil and dirty water are pumped out by centripetal pump, the sludge is discharged automatically and fully.

The machine is one kind of rotary machine with high speed. After accurate dynamic balancing, it can run for long time with low vibration, safety and security.

The design, product and acceptance are conformed to the standard of GB/T5745 “Marine Disc Separator”.

Advantages

1. The piston type slag removal and self cleaning automatically discharging

2. belt drive(No second tensioning required)

3. Full hydraulic discharge structure, quicker Respond and slag discharge more thoroughly

4. Internally installed with three sets of programs applied to the Separation of HFO, LO and DO

5. Automatically detection of water sealed water and slag discharge time

6. “No-gravity ring” automatically adjusts “oil water interface”

7. Suitable for the separation of high viscosity(380cSt/50℃)and high density(1010Kg/m3 ) HFO

Principle and structure

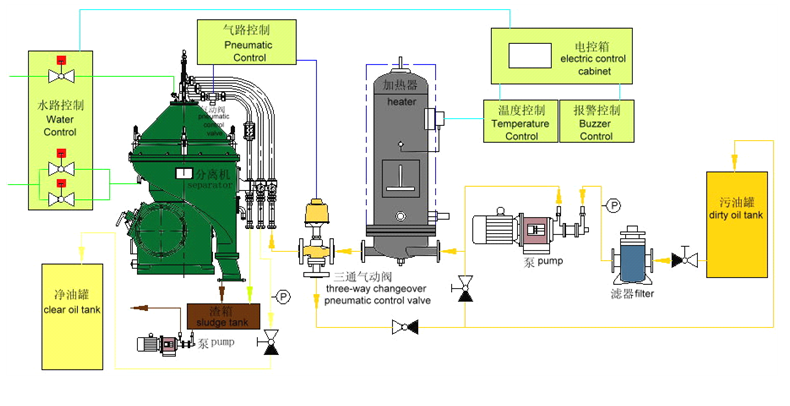

Principles of Operation

Automatic control system

Water Control: Automatic control unlocking water, sealing water and water-seal/water switching.

Pneumatic Control: Filter and adjust compressed air, control three-way changeover pneumatic valve.

Temperature Control: Automatic control the temperature of the oil line, also control separately or with electric control cabinet at the same time.
Buzzer Control: Monitor oil temperature, pressure, over loading, non-discharging and leaking, and Offer a group of passive contactor stretching out to control panel.

Condition for mineral oil separation and actual capacity (refer to the chart)

More pictures

Peony organizes the model selection question as below

1)How many kinds of the oil can you separate?
This series separator is widely used for kinds of oils, especially for the Marine diesel oil and the similar oil, such as light fuel oil, heavy fuel oil, lubrication oil, steam turbine oil, detergence oil, engine oil etc

2)How can you select the suitable capacity?
Different oil has different capacity, our 1500L, 2000L, 3000L, 4000L, 5000L, 6000L, 8000L ,10000L capacity is for the Marine diesel oil 0# as sample. It also depends on the viscidity, temperature, and for all the capacity model, we have an oil characteristic sheet to help our customer to find out what their oil is, and what capacity their oil belongs to.

3) Is your separator self cleaning?
We have 3 types discharge means according to different material and customer's requirements, we have self cleaning model and manual cleaning model.
1. Manual discharge model for the oil with very less solid component
2. Full discharge model for the big capacity treatment and a little solid component
3. Partly discharge model for the bigger capacity treatment and more solid component

4.Variable discharge model

No.full discharge type and partially discharge type are both self cleaning model.

4)Will you help us to select the model?
Yes,you can select the model by yourself, or as long as you provide your material characteristic, we have professional engineer team to help you select the suitable machine

5)Do you only have the single machine or the unit?
Both we have.

Processing equipment

Guarantee

Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.We are committed to reward you with a better quality in return for our interest in and faith toward.We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.

Contact us

Zhangjiagang City Peony Machinery Co., Ltd
Add: Leyu Developing Zone, Zhangjiagang City, Jiangsu Pro, China.
Web: www.peonyfns.com, www.peonycentrifuge.com, www.separator-centrifuge.com

Email: sale01@peonyfns.com
Mobile: 0086 19951199980 (WhatsApp/Wechat)

Skype: lucialcy

TAG: diesel oil separator, HFO separator, lube oil separator, oil purifier
