    High Speed Scroll Discharge Decanter Industrial Centrifuge Salt Chemical Titanium Centrifuge

    Ask Lasest Price
    Brand Name : Peony
    Model Number : PDC
    Certification : ISO9001&ISO14001,CE
    Payment Terms : TT. LC
    Supply Ability : 20 sets per month
    Delivery Time : 75 days after down payment
    Price : USD65000~72000/SET
    • Product Details
    • Company Profile

    High Speed Scroll Discharge Decanter Industrial Centrifuge Salt Chemical Titanium Centrifuge

    High Speed Scroll Discharge Decanter Industrial Centrifuge Salt Chemical Titanium Centrifuge



    Basic principles

    TA2 is an industrial titanium with excellent mechanical strength and hardness, as well as moderate corrosion resistance and comprehensive mechanical properties. Due to its stable chemical properties, good resistance to high and low temperatures, strong acids and alkalis, as well as high strength and low density, it is hailed as a "space metal".

    With the anti-corrosive property, this material is used on the decanter centrifuge, so it can be suitable for the materials with Chloride ion.


    High Speed Scroll Discharge Decanter Industrial Centrifuge Salt Chemical Titanium Centrifuge

    For the decanter centrifuge, the continuous feeding, separating and discharging can be realized as it rotates at its full speed. It is characterized by compact structure, easy obturation, smooth running, low noises, large handling capacity, low energy consumption, high automation, small working strength, simple operation and easy maintenance, and wide applications.


    Decanter design
    Type: 2-phase separation
    Material: titanium for all wet parts
    Bearing: SKF brand. A special selection and arrangement of bearings provides for long life and exceptional reliability
    Wear protection: welded hard facing or spray coating, ceramic technology

    Application
    1. Salt chemical industry
    2. Calcium hypochlorite
    3. Material with high content of Cl-

    Working principle

    The drum and the spiral feeder rotate in the same direction but with a certain speed difference; the material is led into the feeding spiral inner cylinder via the feeding pipe and, after speeding pipe and, after speeding up, enters the drum; under the action of the centrifugal force field, the relatively heavier solid-phase material deposits on the drum wall forming the residue layer; the solid-phase residue is continuously pushed by the spiral feeder to the conic end of the drum and, after dehydration in the drying area, is discharged out of the machine. The machine is capable of continuous feeding, separating, dehydrating and discharging under full-speed running.

    Technical parameters

    ModelDiameter
    (mm)
    Bowl Speed
    (rpm)
    G-forceCapacity
    (m3/h)
    Main Power
    (kw)
    Weight
    (kg)
    Overall Size

    (L × W × H)
    (mm)

    PDC-18-3-W450320026003~1530/1125003716 × 1080 × 1420

    PS: The above parameters will be subject to the final technical agreement.

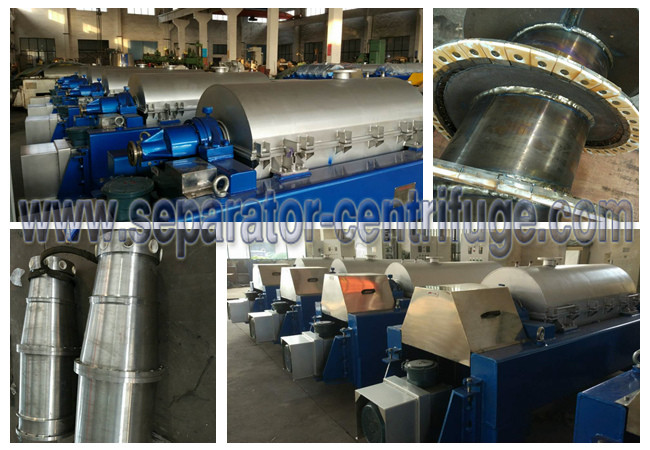

    More pictures


    High Speed Scroll Discharge Decanter Industrial Centrifuge Salt Chemical Titanium CentrifugeHigh Speed Scroll Discharge Decanter Industrial Centrifuge Salt Chemical Titanium CentrifugeHigh Speed Scroll Discharge Decanter Industrial Centrifuge Salt Chemical Titanium Centrifuge


    Wooden packing


    High Speed Scroll Discharge Decanter Industrial Centrifuge Salt Chemical Titanium Centrifuge


    Processing equipment


    Guarantee


    Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.We are committed to reward you with a better quality in return for our interest in and faith toward.We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
