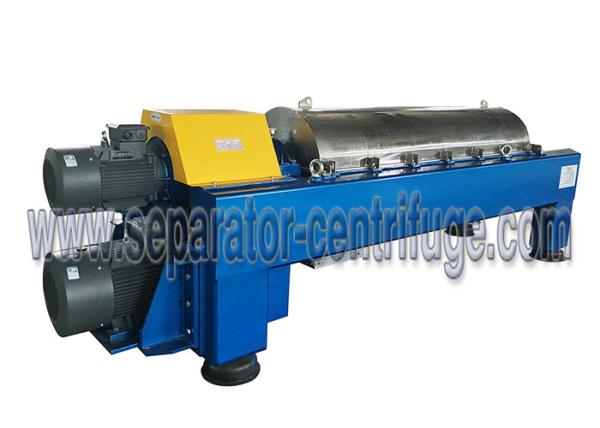

Liquid Liquid Solid Separator - Centrifuge Decanter With 3 Phase , Tricanter

ZHANGJIAGANG CITY PEONY MACHINERY CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Liquid Liquid Solid Separator - Centrifuge Decanter With 3 Phase , Tricanter from wholesalers

    Buy cheap Liquid Liquid Solid Separator - Centrifuge Decanter With 3 Phase , Tricanter from wholesalers
    • Buy cheap Liquid Liquid Solid Separator - Centrifuge Decanter With 3 Phase , Tricanter from wholesalers
    • Buy cheap Liquid Liquid Solid Separator - Centrifuge Decanter With 3 Phase , Tricanter from wholesalers
    • Buy cheap Liquid Liquid Solid Separator - Centrifuge Decanter With 3 Phase , Tricanter from wholesalers

    Liquid Liquid Solid Separator - Centrifuge Decanter With 3 Phase , Tricanter

    Ask Lasest Price
    Brand Name : Peony
    Certification : ISO9001&ISO14001,CE
    Model Number : PDCS
    Price : USD26500-65800/SET FOB SHANGHAI
    Delivery Time : 60-75 days
    Payment Terms : TT,.LC
    Supply Ability : 20sets per month
    • Product Details
    • Company Profile

    Liquid Liquid Solid Separator - Centrifuge Decanter With 3 Phase , Tricanter


    Description

    In the recent past, it was common to dump oily residuals from refineries, petrochemical plants, and other industries into large sedimentation
    ponds. Moreover, still and even today, huge lagoons and ponds can be found in many places across the globe where residuals have been settled at the bottom for years or even longer. Peony provides complete systems and necessary equipment to effectively process the residues
    and recover the valuable oil.


    An oil-suction unit that enables the extraction of oil sludge from a defined depth below the pond's surface is part of the Oil Recovery System. The suction pump is mounted on a pontoon that floats on the surface of the pond or lagoon. If the suctioned portion contains high contents of paraffins and asphaltum, the oil sludge is liquidized in the suction pipe using steam operated heater coils. The extracted oil sludge is then processed as follows: The slop oil is heated, emulsion breaker and flocculants are added, and finally, oil, water, and solids are separated with the tricanter.


    Competitive Advantages

    • 3 phase liquid-liquid-solid separation

    • Robust quality

    • Outstanding separation effect

    • Wide usage in the fish oil and fishmeal field

    • Corrosion resistant an resistant key parts

    • Flexible length-to-diameter model for customerized.

    • Famous and reliable electrical components


    Specifications


    Model

    Diameter

    (mm)

    Bowl Speed

    (rpm)

    G-force

    Capacity

    (m3/h)

    Main Power

    (kw)

    Weight

    (kg)

    Overall Size

    (L × W × H)

    (mm)

    PDCS-17

    420

    3300

    2550

    5~20

    30/11

    3610

    3331 × 990 × 1066

    PDCS-18

    450

    3300

    2739

    4~50

    30/11

    3655

    4000 × 1120 × 1239

    PDCS-20

    500

    3200

    2860

    5~45

    55/11

    4213

    4489 × 1160 × 1350

    PDCS-21

    540

    2800

    2366

    5~50

    45/15

    5290

    4587 × 1285 × 1368


    Product description

    Decanters with slow rotation speeds are normally based on horizontal separation technology. Decanter

    eusure optimum separation efficiency in the case of suspensions with a very high proportion of solid. They are also used for the extraction constituents from liquids and for concentrating, dewatering and classfying solids.


    Decanter design:

    Type: 3- phase separation

    Materials: use high-quality stainless steel for all product wetted areas.

    Bearings: SKF brand. A special selection and arrangement of bearings provides for long life and

    exceptional reliability.

    Wear protection: welded hard facing or spray coating, ceramic technology.

    Structure

    Liquid Liquid Solid Separator - Centrifuge Decanter With 3 Phase , Tricanter
    1. Back drive motor 2. Gear box 3. Hood 4. Bowl and bearing block 5. base 6. Feed pipe 7. Main motor

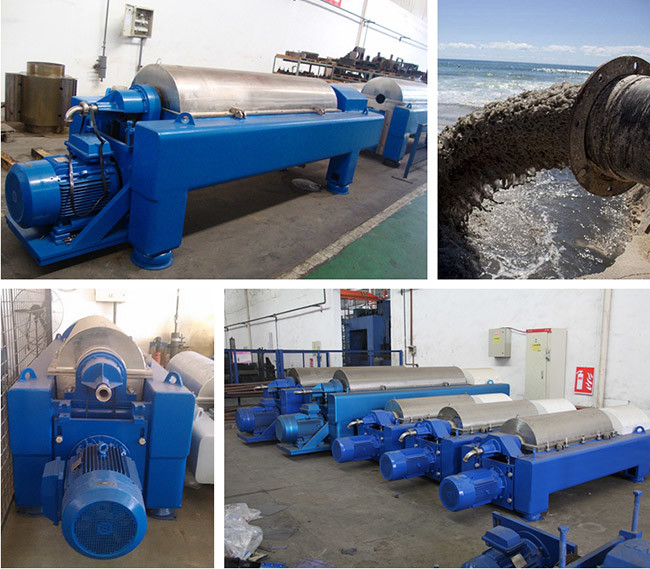

    Detailed Images


    Liquid Liquid Solid Separator - Centrifuge Decanter With 3 Phase , Tricanter


    Liquid Liquid Solid Separator - Centrifuge Decanter With 3 Phase , TricanterLiquid Liquid Solid Separator - Centrifuge Decanter With 3 Phase , TricanterLiquid Liquid Solid Separator - Centrifuge Decanter With 3 Phase , Tricanter


    Guarantee


    Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time. We are committed to reward you with a better quality in return for our interest in and faith toward. We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.

    Liquid Liquid Solid Separator - Centrifuge Decanter With 3 Phase , Tricanter


    Contact us


    Zhangjiagang City Peony Machinery Co., Ltd
    Add: Leyu Developing Zone, Zhangjiagang City, Jiangsu Pro, China.
    Web: www.peonyfns.com, www.peonycentrifuge.com, www.separator-centrifuge.com

    Email: sale01@peonyfns.com
    Mobile: 0086 19951199980 (WhatsApp/Wechat)

    Skype: lucialcy
