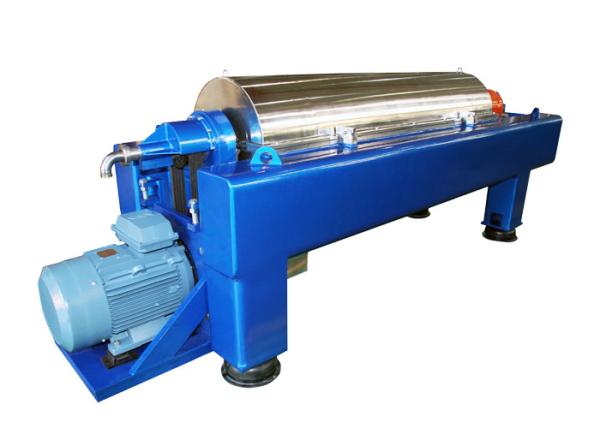

When developing the range of PDCS three-phase decanters for processing crude palm oil Peony focused on efficient, reliable separation of liquid, dry solids (cake) and oil for maximum oil recovery with minimum oil losses. The PDC range includes decanters suitable for every size of oil mill, from 30 to approximately 90 tons of fresh fruit bunches (FFB) per hour, and for a variety of crude palm oil applications including:

• Combined clarification and purification of pressed oil as part of the Peony all-in-one process (no need for settling tanks and dilution water), providing high oil recovery with low water consumption and effluent level.

• Sludge treatment after separation of diluted palm oil in settling tanks, using the three-phase decanter as an alternative to a nozzle separator. The decanter efficiently separates the slurry into oil, water and solid cake phases.

• Oil recovery from empty fruit bunch liquor (EFBL) immediately after pressing. After separation and removal of impurities with a decenter, the recovered high quality palm oil can be mixed with the freshly pressed oil.

Application

Peony Decanter Centrifuge Systems machines can: Remove particles as small as 2 microns,separating bean seed oil,sunflower oil,fish oil,fish meat,sobean protein ,peanut protein,juice,beverage.waste oil purification,washing water purification,orange juice,benzonic acid ,coconut milk,edible oil,palm oil,olive oil,etc.

Materials

Main parts (e.g the bowl and conveyor) are made of corrosion-resistant stainless steel

Gear box of planetary differential and cycloidal needle wheel structure both available for choose,with import brand hydraulic gear box .Screw conveyor flights tiled or lined with ceramic, tungsten carbide, or other hard alloys.for vegetable oil and animal oil,commonly,TC sprayed is more economical and more suitable.

Safety protection

Bowl speed and differential speed detection, over-vibration protection,overload and overheat protection, bearing temperature monitoring, conveyor torque protection and gas-tight explosion-proof protection.

Specifications

Separation principle

In the gravity force field or centrifugal force field, the liquid phase and the solid phase with different density and mutually insoluble in the mixed liquid, respectively gain different sedimentation speed, and thus separate and stratify. In the gravity force field it is called gravity separation, while in the centrifugal force field it is called centrifugal separation.

The machine could deal with the material which range of concentration is large, small size which widely distributing. Solid particles are less 0.5mm as rigid particles, and less than 10mm as non-rigid particles, the machine can be effectively treated.The decanter centrifuge is applicable to the separating of suspension containing solid-phase granules with diameter greater than 0.005 mm and with the concentration being 2~40%.

Overview

Basic Information

Zhangjiagang City Peony Machinery Co., Ltd., founded as a special producing enterprise of separating equipment in 2008, is the well-known manufacturer and service provider of separation and filtration in China. Peony dedicated to solving the solid-liquid, liquid-liquid separation problems for clients all over the world and providing separating and filtering mechanical products with convenient operation, high efficiency, reliable quality, and excellent service worldwide. Being a group corporation, Peony has 3 producing bases in China - Zhangjiagang, Nanjing, and Hangzhou city.

Products

As the professional supplier of separating and filtering equipment, we produce basket centrifuges, decanters, and disc separators starch product line, and sell the auxiliary equipment such as clarify equipment, filters, pumps, etc. These 25 series of more than 150 products are self-development of Peony and have attained national patent. Those products and relevant auxiliary equipment are widely used in chemical, petroleum, pharmacy, mining, food, beverage industry, and environmental protection.

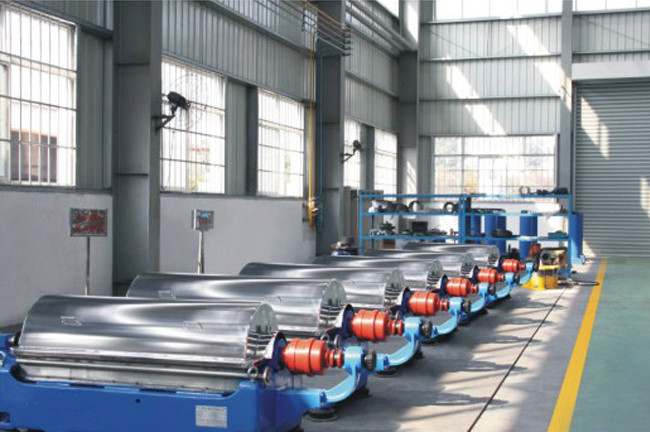

We own various kinds of inspection and testing facilities with a value over USD10million, now,16 testing tables,6920 gear testing center, X-ray detecting machine, high-speed dynamic balancing machine, ultrasonic flaw detection machines, etc, we are equipped with complete testing, inspection, analysis control system, advanced testing machines and simulative working condition test table and automatic control testing system, which guarantees our new product research, processing validation, and quality.

We have strongly equipped the robust and precise processing machines from Germany, Italy, England, and our domestic famous brand, here, I'd like to list several of them for your reference.
200 Numerical Control Boring and Milling Machine TK6920
160 Numerical Control Boring and Milling Machine TK6916
Italian PAMA Numerical Control Boring and Milling Machine
80T CNC Lathe
40 T CNC Lathe
2.5m Merry Go Round Machine C525E
Z100 Radial Drill
Numerical Controlled Vertical Milling Machine
Underwater Plasma Cutting Center
CNC Machining Center


We harvested great achievement these years, and turnover reaches to 380million RMB in
the year 2013, and we expect to carry out 500million RMB in 2015.

Welcome all who are engaged in the separation and filtration to work with us, and we are also looking for qualified world wide agents to provide better service and deep marketing.

Worldwide Network

Our products have spread all over the world and are applied over 35 countries and regions, for example, America, Germany, Italy, Sweden, Canada, Singapore, Australia, Brazil, Russia, India, Middle East, and Southeast Asia, etc. To provide flexible and qualified technical service to resolve any maintenance issue in the shortest time possible, now we have established agents in many countries such as Brazil, Colombia, Latin America, Bangladesh, Southeast Asia, etc.

Society Reward

Peony is devoting into the charity activity, we are subsidizing some poor students to finish the school and are trying to set up some primary to feedback the society, hereby, we appeal to all people to enter into the charity activity, technical innovation changes the world, love embraces the world!
