    Automatic Disc Stack Centrifuge 3 Phase Marine Oil Separator Unit

    Ask Lasest Price
    Brand Name : Peony
    Certification : CCS
    Model Number : BS/BZ
    Delivery Time : 75-90days
    Payment Terms : TT,.LC, Western Union
    Supply Ability : 100sets per month
    Price : USD20000-120000 / SET FOB Shanghai
    • Product Details
    • Company Profile

    Automatic Disc Stack Centrifuge 3 Phase Marine Oil Separator Unit

    Automatic Disc Stack Centrifuge 3 Phase Marine Oil Separator Unit


    Description:

    The marine oil separator is mainly used to remove water and mechanical impurities from fuel oil, lubricating oil, and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machines, and prolong engine life.

    The model is also used to separate two unsolvable liquids with different specific gravity or remove a small number of solid particles from the liquid. It is divided into a 2phase solid-liquid separator and an oi-water-impurity 3phase separator. They are workable inland and ship, we have the CCS certificate to certify its function and usage. There are different discharge types of the oils, manually, partial, fully discharged, variable discharge, etc which depends on the different materials. commonly, we define the capacity as a density of 0# diesel oil, and we have a chart to help you find out the exact processing capacity of your needs. We do not only provide the single oil separator, but also the whole unit containing the pumps, valves, heats, pipes, and so on.

    You can select the single or whole unit oil separator according to your requirements. Peony owns a different model with a variable-capacity machine to provide

    Heater, valve, pipes, skid, control system are all available as per the spot needs.


    Specification:


    Condition for mineral oil separation and actual capacity (refer to the chart)

    Model

    Size

    (mm)

    L × W × H

    Diesel oil

    capacity

    (L/h)

    180CST fuel

    oil capacity

    (L/h)

    380CST fuel

    oil capacity

    (L/h)

    SAE30/40

    lubrication

    oil

    capacity

    (L/h)

    Heating

    type

    Opera-

    ting type

    Discharge-

    ging type

    Standard collocation

    of control

    B1207S

    1050 × 1000

    × 1550

    1600


    800

    Steam

    Manual

    Manual

    High temperature, low pressure,

    auto temperature adjust,

    including the comprehensive

    alarm

    B1104S

    1250 × 900

    × 1600

    4000



    2000

    B1103Z

    1250 × 900

    × 1600

    1700

    800

    600

    800

    Automatic

    Automatic

    PLC (English and

    Chinese optional),

    touch screen (optional),

    auto adjust the temperature

    and low pressure,

    auto switch on the

    oil line after alarming,

    recordable alarm

    information,

    Comprehensive

    alarm

    B1205Z

    1250 × 1000

    × 1700

    2200

    1000

    800

    1000

    B1215Z

    1510 × 1100

    × 1700

    3000

    1500

    1200

    1500

    B1105Z

    1450 × 1200

    × 1600

    3500

    2000

    1500

    2000

    B1315Z

    1520 × 1200

    × 1700

    4200

    2300

    1800

    2300

    B1217Z

    1450 × 1200

    × 1600

    5500

    3000

    2300

    3000

    B1317Z

    1650 × 1500

    × 1800

    8000

    4500

    3000

    4000

    B1417Z

    1650 × 1500

    × 1800

    12000

    6000

    4000

    5000


    Oil types

    Fuel oil

    Lubrication oil

    Fuel oil

    Heavy fuel oil

    SAE30, 40

    Detergence

    oil

    Steam

    turbine oil

    Kinematical

    viscosity(mm2/s)

    1.9-5.5

    5.5-24

    120

    180

    380

    100-120

    61.2-74.8

    40℃

    50℃

    40℃

    40℃

    Density

    (kg/m³)(20℃)

    <900

    900-991

    880-900

    <900

    Separating

    temperature

    (℃)

    normal temperature,

    40-60 best

    90-98

    80-95

    Recommended

    capacity

    (L/h)

    5000

    4000

    2200-2400

    1800-2000

    1400-1600

    2000-2400

    1000-1200

    3200-3400

    Reserve the right to change specifications without prior notification.

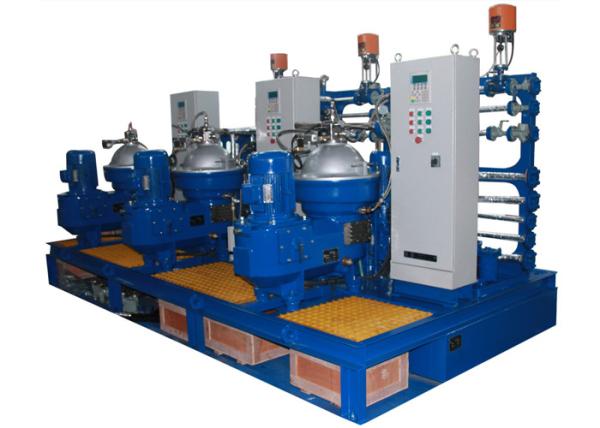

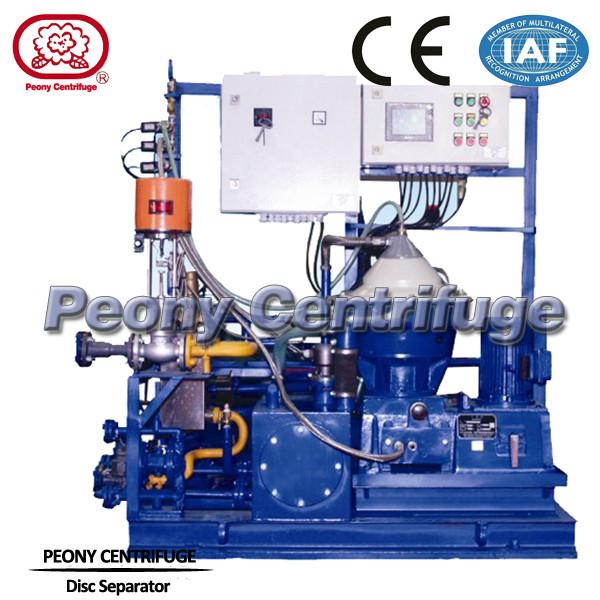

    Machine Pictures:



    Condition for mineral oil separation and actual capacity (refer to the chart)



    oil types

    heavy diesel oil

    lubrication oil

    SAE30,40

    detergence oil

    steam turbine oil

    kinematical viscosity(mm2/s)

    13

    20.5

    36.2

    80

    100-120

    61.2-74.8

    50℃

    40℃

    40℃

    density/(kg/m3)(20℃)

    <900

    900-991

    880-900

    <900

    separating temperature

    (℃)

    40

    60

    80

    80-95

    recommended capacity

    (L/h)

    900-10000

    300-7000

    oil types

    Fuel oil

    Fuel oil

    Heavy fuel oil

    kinematical viscosity(mm2/s)

    1.9-5.5

    5.5-24

    120

    180

    380

    40℃

    50℃

    density/(kg/m3)(20℃)

    <900

    900-991

    separating temperature

    (℃)

    Normal temperature,40-60degree best

    90-98

    recommended capacity

    (L/h)

    From 650L/H to 10000L/H depends on different oil and working temperature.



    PS: Testing table to test all the parameters before factory leaving
