    PDSD Series Disc Centrifugal Separator Mineral Oil Centrifuge

    Ask Lasest Price
    Brand Name : Peony
    Certification : ISO9001&ISO14001,CE
    Model Number : PDSD
    Delivery Time : 75 days after down payment
    Payment Terms : TT, LC
    Supply Ability : 60sets per month
    • Product Details
    • Company Profile

    PDSD Series Disc Centrifugal Separator Mineral Oil Centrifuge

    PDSD Series Disc Centrifugal Separator Mineral Oil Centrifuge


    PDSD Series Disc Centrifugal Separator Mineral Oil Centrifuge


    Main Technical Specification


    Condition for mineral oil separation and actual capacity (refer to the chart)

    oil types

    heavy diesel oil

    lubrication oil

    SAE30, 40

    detergence oil

    steam turbine oil

    kinematical viscosity(mm2/s)

    13

    20.5

    36.2

    80

    100-120

    61.2-74.8

    50°C

    40°C

    40°C

    density/(kg/m3)(20°C)

    less than 900

    900-991

    880-900

    less than900

    separating temperature

    (°C)

    40

    60

    80

    80-95

    recommended capcity

    (L/h)

    900-5000

    300-4500


    oil types

    Fuel oil

    Fuel oil

    Heavy fuel oil

    kinematical viscosity(mm2/s)

    1.9-5.5

    5.5-24

    120

    180

    380

    40°C

    50°C

    density/(kg/m3)(20°C)

    less than 900

    900-991

    separating temperature

    (°C)

    Normal temperature,40-60degree best

    90-98

    recommended capacity

    (L/h)

    From 650L/H to 5000L/H depends on different oil and working temperature.

    Note: Refer to the aboved chart ,we will provide suitable capacity separator.


    Description


    Model PDSD Oil Purifier Centrifuge Separator separator is mainly used to remove water and mechanical impurities from fuel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machine, and prolong engine life. The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.


    The machine adopts automatic control, it has the advantages of high efficiency, low oil consumption, convenient operation and economic maintenance cost.


    The clear oil and dirty water are pumped out by centripetal pump, the sludge is discharged automatically and fully.


    The machine is one kind of rotary machine with high speed, After accurate dynamic balancing, it can run for long time with low vibration, safety and security.

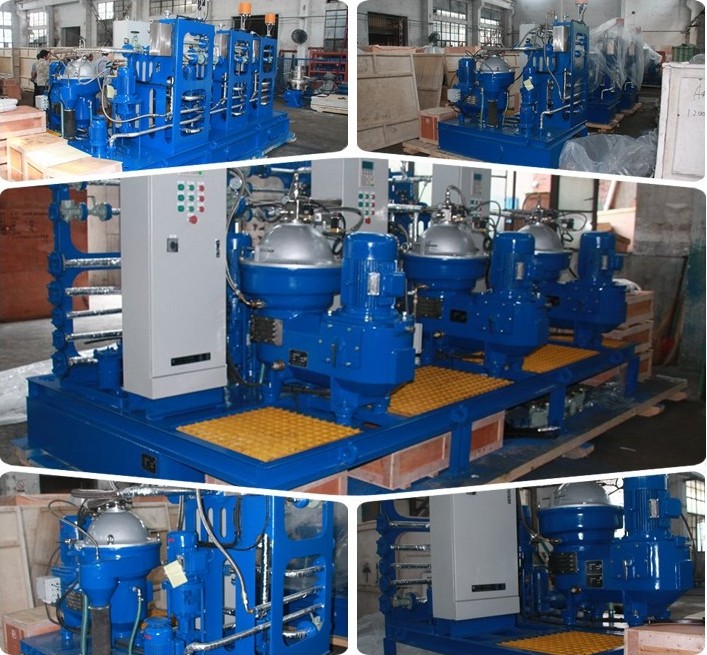

    More pictures


    PDSD Series Disc Centrifugal Separator Mineral Oil Centrifuge

    PDSD Series Disc Centrifugal Separator Mineral Oil Centrifuge

    PDSD Series Disc Centrifugal Separator Mineral Oil Centrifuge

    PDSD Series Disc Centrifugal Separator Mineral Oil Centrifuge

    PDSD Series Disc Centrifugal Separator Mineral Oil Centrifuge


    Workshop

    PDSD Series Disc Centrifugal Separator Mineral Oil Centrifuge


    Processing equipment


    PDSD Series Disc Centrifugal Separator Mineral Oil Centrifuge


    Guarantee


    Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction,pursuing the best quality and producing the best product at the same time. We are committed to reward you with a better quality in return for our interest in and faith toward. We will do our utmost for one more stepping forward,based on our infinite services and trust to customers.
