    PP Series Sulzer Separator - Centrifuge Two Stage Pusher CE ISO

    Ask Lasest Price
    Brand Name : Peony
    Certification : ISO9001&ISO14001,CE
    Model Number : PP
    Delivery Time : 90 days
    Payment Terms : T/T
    Supply Ability : 20 sets/month
    Price : USD20000-100000/SET
    • Product Details
    • Company Profile

    PP Series Sulzer Separator - Centrifuge Two Stage Pusher CE ISO

    PP Series Sulzer Separator - Centrifuge Two Stage Pusher CE ISO


    Description


    Our PP series 2-stage pusher centrifuge, is a kind of continuous dewatering equipment with large capacity. With the perforated basket and sieve inside, it works effectively.


    The working process is as follows: the mixture is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket. Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine.


    The 1st stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket. The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterwards, the cake is continuously discharged out of the basket. In case of high purity for the solid product, the effective washing can be carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.



    Application for typical products:
    Chemicals : glaubers salt,salt, boric acid, ascorbic acid, adipic acid, sodium chloride, iron sulphate, sodium sulphate, copper sulphate, sodium bichromate.
    Fertilisers : ammonium sulphate, potash, urea, calcium nitrate, potassium sulphate.
    Food stuff animal feeds : extraction residues, meat pulp.
    Benefication : rock phosphate, gypsum, ores, coal.
    Special designs, e.g. gas tight pusher centrifuge, explosion proof, etc.


    PP Series Sulzer Separator - Centrifuge Two Stage Pusher CE ISO



    Specification


    Model

    PP-40

    PP-50

    PP-60

    Basket diameter (mm)

    290/360

    438/500

    560/630

    Stroke of pusher mechanism

    (times/min)

    40-80

    40-80

    70-80

    Machine speed (rpm)

    2500

    2000

    1360

    Operative oil pressure (Mpa)

    2.5

    2

    8

    Motor of oil pump (kw)

    5.5-7.5

    22

    13-30

    Main motor (kw)

    11-15

    37-45

    55

    Output (t/h)

    5-7

    12

    20

    Sieve slot

    To be decided

    Operation temp. (°C)

    Below 105

    Below 105

    Below 105

    Overall dimension (mm)

    2346*1090*1006

    3660*1420*2078

    3127*1700*1955

    Weight (kg)

    2600

    4400

    4860


    More pictures


    PP Series Sulzer Separator - Centrifuge Two Stage Pusher CE ISO

    PP Series Sulzer Separator - Centrifuge Two Stage Pusher CE ISOPP Series Sulzer Separator - Centrifuge Two Stage Pusher CE ISO


    Package


    PP Series Sulzer Separator - Centrifuge Two Stage Pusher CE ISO

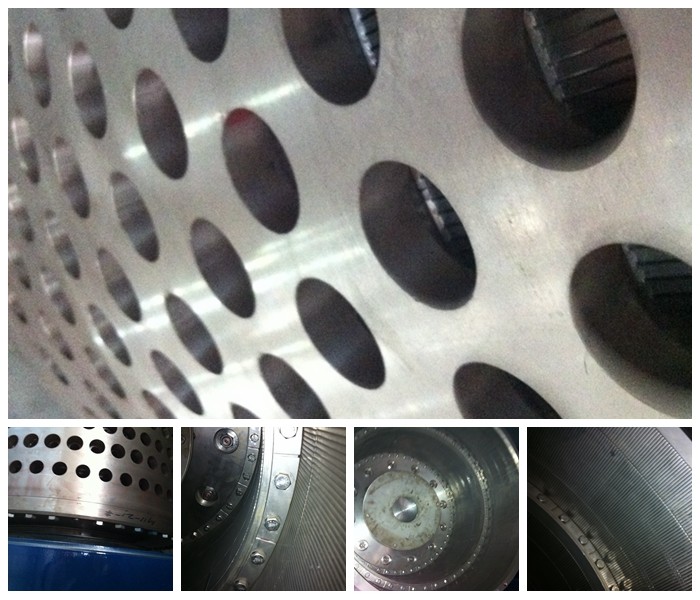

    Processing equipment


    PP Series Sulzer Separator - Centrifuge Two Stage Pusher CE ISO


    Guarantee


    Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time. We are committed to reward you with a better quality in return for our interest in and faith toward. We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
