2 Stage Pusher Salt Basket Centrifuge For Nitrate Of Potassium

    Buy cheap 2 Stage Pusher Salt Basket Centrifuge For Nitrate Of Potassium from wholesalers

    Buy cheap 2 Stage Pusher Salt Basket Centrifuge For Nitrate Of Potassium from wholesalers
    • Buy cheap 2 Stage Pusher Salt Basket Centrifuge For Nitrate Of Potassium from wholesalers

    2 Stage Pusher Salt Basket Centrifuge For Nitrate Of Potassium

    Ask Lasest Price
    Brand Name : Peony
    Certification : ISO
    Model Number : PP
    Delivery Time : 75-90 days after down payment if without stock
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 50 sets/month
    Price : USD36800-82500/SET FOB Shanghai
    • Product Details
    • Company Profile

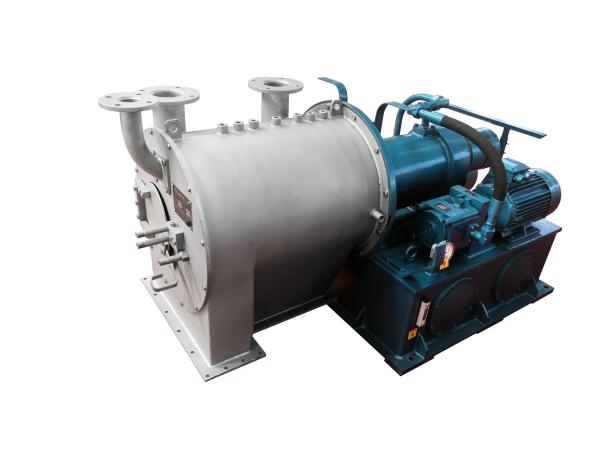

    2 Stage Pusher Salt Basket Centrifuge For Nitrate Of Potassium


    2 Stage Pusher Salt Basket Centrifuge For Nitrate Of Potassium


    Quick skimming


    Application: Salt Dewatering Centrifuge

    Bearing: SKF

    MOC: SS304, SS316, DUPLEX SS

    Motor defends degree: IP54/F1

    Electrical elements: Famous brand

    Advanced technology: Sulzer

    Separation effection: Moisture in the cake less than 4%


    Description


    Model PP Sulzer Double Stage Salt Centrifuge is a kind of perforated basket centrifuge, both continuous and effective. The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket. Most of the mother liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocates, pushing the formed product cake into the second stage basket. The cake can have sufficient retardation in the centrifuge by being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterward, the cake is continuously discharged out of the basket. In case of high purity for the solid product, effective washing can be carried out in the centrifuge. If necessary, the washing agent and the mother liquor can be discharged separately.



    Technical Parameters of PP-40

    Equipment

    2 stage pusher centrifuge

    Spec.

    PP-40

    Qty

    set

    Technical parameters

    1

    Basket diameter

    290/360 mm

    2

    Basket Rotate Speed (Max)

    2500r/min

    3

    Stroke of Pusher Mechanism

    40-80times/min

    4

    First, second stage mesh aperture (as per the material)

    mm, mm

    5

    Separation Factor

    586-728

    6

    Main motor

    Spec/Power

    11-15KW



    Installation type

    Horizontal



    Protection class

    IP54/F1



    Electrical power

    3 phase 380V/50Hz AC

    7

    Oil pump motor

    Spec/Power

    5.5-7.5KW



    Installation type

    Horizontal



    Protection class

    IP54/F1



    Electrical power

    3 phase 380V/50Hz AC

    8

    Oil pump

    Spec.

    NB4C100F



    outflow

    100ml/turn



    Maximum pressure

    2.5Mpa

    9

    Overall size

    2346mm×1090mm×1006mm

    10

    Weight

    2600kg

    11

    Shell type

    open

    12

    Output

    3T-5T/h(sea salt)

    13

    Moisture content after separation:

    3-4%(sea salt)

    14

    Object processed

    Mineral salt/Sea salt


    Technical Parameters of PP-50

    Equipment

    2 stage pusher centrifuge

    Spec.

    PP-50

    Qty

    set

    Technical parameters

    1

    Basket diameter

    438/500 mm

    2

    Basket Rotate Speed (Max)

    2000rpm

    3

    Stroke of Pusher Mechanism

    40-80times/min(can be adjusted)

    4

    First, second stage mesh aperture (as per the material)

    mm, mm

    5

    Separation Factor

    1119

    6

    Main motor


    Spec/Power

    45KW

    Installation type

    Horizontal

    Protection class

    IP54/F1

    Electrical power

    3 phase 380V/50Hz AC

    7

    Oil pump motor


    Spec/Power

    22KW

    Installation type

    Horizontal

    Protection class

    IP54/F1

    Electrical power

    3 phase 380V/50Hz AC

    8

    Oil pump

    Spec.

    SNE/A280

    outflow

    480ml/turn

    Maximum pressure

    2Mpa

    9

    Overall size

    3660mm×1420mm×2078mm

    10

    Weight

    4400kg

    11

    Shell type

    open/seal(can be selected)

    12

    Output

    ≥12T/h(sea salt)

    13

    Moisture content after separation:

    4%(sea salt)

    2 Stage Pusher Salt Basket Centrifuge For Nitrate Of Potassium


    Technical Parameters of PP-60

    Equipment

    2 stage pusher centrifuge

    Spec.

    PP-60

    Qty

    set

    Technical parameters

    1

    Basket diameter

    560/630 mm

    2

    Basket Rotate Speed (Max)

    1360 r/min

    3

    Stroke of Pusher Mechanism

    70-80 times/min

    4

    First, second stage mesh aperture (as per the material)

    mm, mm

    5

    G-force

    570-642

    6

    Main motor


    Spec/Power

    55KW

    Installation type

    Horizontal

    Protection class

    IP54/F1

    Electrical power

    3 phase 380V/50Hz AC

    7

    Oil pump motor


    Spec/Power

    30KW

    Installation type

    Horizontal

    Protection class

    IP54/F1

    Electrical power

    3 phase 380V/50Hz AC

    8

    Oil pump

    Spec.

    NB5D140F

    outflow

    140ml/turn

    Maximum pressure

    8Mpa

    9

    Overall size

    3127mm × 1700mm × 1955mm

    10

    Weight

    4860kg

    11

    Shell type

    open

    12

    Output

    ≥15T/h (Mineral salt)

    13

    Moisture content after separation:

    ≤3%

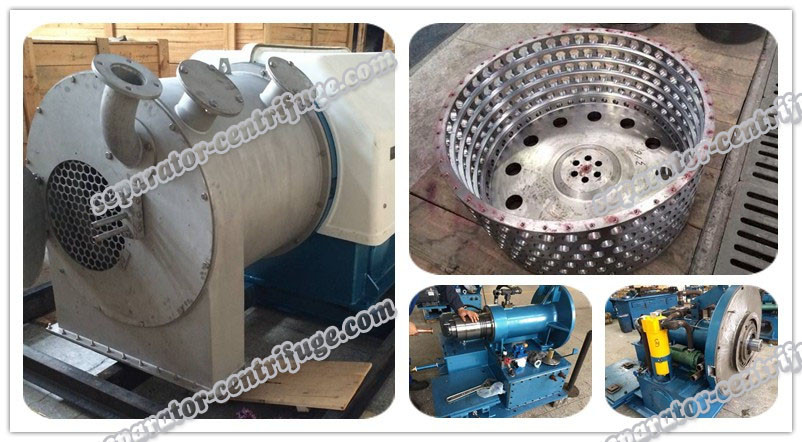

    More Pictures



    Guarantee


    Peony Centrifuge has been dedicated to producing machinery and types of equipment and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
    We are committed to rewarding you with better quality in return for our interest in and faith in you.
    We will do our utmost for one more stepping forward, based on our infinite services and trust in customers.
