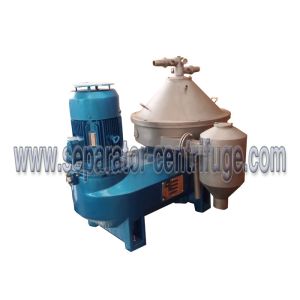

    Vertical Rotary Bowl Separator - Centrifuge For Biodiesel Separation

    Ask Lasest Price
    Brand Name : Peony
    Certification : CE, ISO
    Model Number : PDSV
    Delivery Time : 45-60 days after deposit
    Payment Terms : TT, LC, west union
    Supply Ability : 100 sets per month
    • Product Details
    • Company Profile

    Vertical Rotary Bowl Separator - Centrifuge For Biodiesel Separation

    Vertical Rotary Bowl Separator - Centrifuge For Biodiesel Separation


    Advantages


    1. High speed
    2. Stable operation
    3. Fully closed of inlet and outlet system,
    4. Low noise
    5. Fully automatic control.
    6. CE, ISO


    Description


    Bio-diesel oil is green reborn energy, which achieved by the reaction between alcohol (methanol, ethanol) and fat crop like soy and rapeseed, fat forest fruit like oil palm and yellow wood, fat water vegetable like algae, and also animal fat, wasted edible oil.Bio-diesel oil is used as fuel, being excellent replacement for petroleum diesel oil.Bio-diesel oil is typical "green energy". Which good for the economy continuously developing, and has important strategic meaning at improving energy replacement, reducing environment pressure, controlling the atmospheric pollution


    Application


    This separator can be used in the following process stages in virtually all of the following:

    1.Separation of methyl ester and glycerine/catalyst/sap/methanol

    2.Washing of methyl ester

    3.Separation of fatty acids from glycerine.

    4.Separation of salts from glycerine.


    Process flow diagram



    Specification


    Model

    PDSV-1500

    PDSV-2500

    PDSV-5000

    Capacity (L/h)

    1000-1500(30TPD)

    2500 (60TPD)

    5000(100TPD)

    Motor power (Kw)

    7.5

    11

    15

    Discharging type

    Part discharging

    Part discharging /Manual discharging

    Part discharging

    Net weigh (Kgs)

    1200

    1030

    1077

    Overall dimension

    L × W × H (mm)

    1660 × 1440 × 1900

    1800 × 1500 × 1750

    1269 × 1187 × 1495


    Working principle


    Fig. 1 shows disc separator.

    The product flows through feed pipe (1) into the bowl and is separated into light and heavy liquid phases in the disc stack (11). The light liquid phase flows to the centre of the bowl from where it is discharged by centripetal pump (6). The heavy liquid phase is conveyed under pressure to centripetal pump (7).

    The separated solids are collected in the sediment holding space (8) from where they are instantly ejected at periodic intervals through ports (10) by means of the hydraulically operated sliding piston (9), whereby the closing liquid is feed through valve. The ejection cycles are initiated via the control unit.


    More pictures


    Vertical Rotary Bowl Separator - Centrifuge For Biodiesel SeparationVertical Rotary Bowl Separator - Centrifuge For Biodiesel Separation


    Guarantee


    Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.We are committed to reward you with a better quality in return for our interest in and faith toward.We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
