Scroll Discharge Centrifuge Decanter Centrifuge 3 Phase Decanting Machine

Description

The Tricanter performs a three-phase separation, i.e. the simultaneous separation of two immiscible liquids with different densities and one solid phase, provided that the solid phase is the heaviest phase. The main difference from a decanter is the separate discharge of the two liquid phases. It is the popular machine throughout the world and widely used in the fish oil, palm oil, kitchen waste oil separation etc.

Advantages

• 3phase liquid-liquid-solid separation
• Robust quality
• Outstanding separation effect
• Wide usage in the fish oil and fishmeal field
• Corrosion resistant an resistant key parts
• Flexible length-to-diameter model for customerized.
• Famous and reliable electrical components

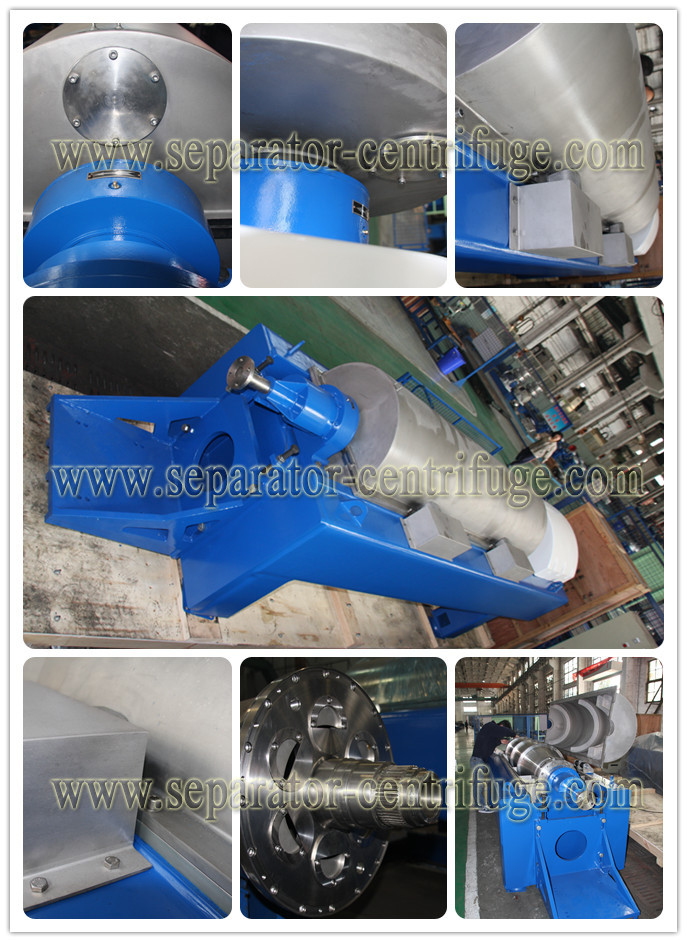

Structure

Specifications

PS: The above parameters will be subject to the final technical agreement.

Separation principle

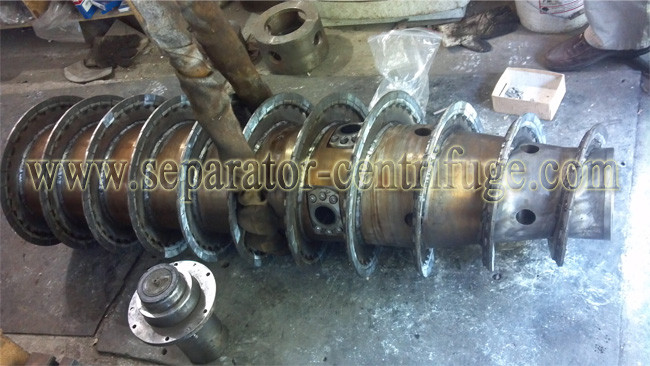

The decanter is driven by two motors. The main motor drives the bowl and the housing of differential mechanism to rotate through belt, while the auxiliary motor drives through the belt pulley the input shaft of the differential mechanism to rotate, which, after speed change, drives the helical to rotate. In this way the bowl and helical rotate in the same direction but with certain differential speed.

When the material to be processed (blended liquid consisting of solid phase and liquid phase) enters the inner cavity of the helical propeller through feeding pipe, after being accelerated by the two-way conical accelerator, it flows out of the material outlet, and flows into the bowl wall through inner cloth cylinder. The light, heavy and residue phases that make up the suspending liquid, under the action of different centrifugal force, the residue phase quickly subsides onto the inner wall of the bowl, and the heavy phase adheres close to the surface of the residue phase rather slowly.

While the light phase adheres close to the surface of the heavy phase rather slowly, forming a dividing plane between the two phases. As the sedimentation of heavy phase increases, the top end of helical blade enters into the sedimentation layer of heavy phase. At this time the bowl and helical propeller are rotating in the same direction at high speed and with a certain difference in speed. This relative difference in rotation speed enables the helical to propel heavy phase particles to move toward the material outlet at the small end, whereas the light phase, through the helical passage, flows toward the liquid phase outlet at the large end, and flows out through the overflow plate with different R values.

Basic Information

Zhangjiagang City Peony Machinery Co., Ltd., founded as a special producing enterprise of separating equipment in 2008, is the well-known manufacturer and service provider of separation and filtration in China. Peony dedicated to solving the solid-liquid, liquid-liquid separation problems for clients all over the world and providing separating and filtering mechanical products with convenient operation, high efficiency, reliable quality, and excellent service worldwide. Being a group corporation, Peony has 3 producing bases in China - Zhangjiagang, Nanjing, and Hangzhou city.

Products

As the professional supplier of separating and filtering equipment, we produce basket centrifuges, decanters, and disc separators starch product line, and sell the auxiliary equipment such as clarify equipment, filters, pumps, etc. These 25 series of more than 150 products are self-development of Peony and have attained national patent. Those products and relevant auxiliary equipment are widely used in chemical, petroleum, pharmacy, mining, food, beverage industry, and environmental protection.

We own various kinds of inspection and testing facilities with a value over USD10million, now,16 testing tables,6920 gear testing center, X-ray detecting machine, high-speed dynamic balancing machine, ultrasonic flaw detection machines, etc, we are equipped with complete testing, inspection, analysis control system, advanced testing machines and simulative working condition test table and automatic control testing system, which guarantees our new product research, processing validation, and quality.

We have strongly equipped the robust and precise processing machines from Germany, Italy, England, and our domestic famous brand, here, I'd like to list several of them for your reference.
200 Numerical Control Boring and Milling Machine TK6920
160 Numerical Control Boring and Milling Machine TK6916
Italian PAMA Numerical Control Boring and Milling Machine
80T CNC Lathe
40 T CNC Lathe
2.5m Merry Go Round Machine C525E
Z100 Radial Drill
Numerical Controlled Vertical Milling Machine
Underwater Plasma Cutting Center
CNC Machining Center


We harvested great achievement these years, and turnover reaches to 380million RMB in
the year 2013, and we expect to carry out 500million RMB in 2015.

Welcome all who are engaged in the separation and filtration to work with us, and we are also looking for qualified world wide agents to provide better service and deep marketing.

Worldwide Network

Our products have spread all over the world and are applied over 35 countries and regions, for example, America, Germany, Italy, Sweden, Canada, Singapore, Australia, Brazil, Russia, India, Middle East, and Southeast Asia, etc. To provide flexible and qualified technical service to resolve any maintenance issue in the shortest time possible, now we have established agents in many countries such as Brazil, Colombia, Latin America, Bangladesh, Southeast Asia, etc.
