    Peony Starch Separator Centrifuge With High Speed And Continuous Nozzle Discharge

    Peony Starch Separator With High Speed And Continuous Nozzle Discharge


    Description:


    The starch separators are disc separators with high speed and continuous nozzle discharge. They are mainly used for protein separation in the starch industry, like corn starch, sweet potato starch, cassava starch, potato starch, etc. for purifying starch, previous concentration, separating protein and recovering starch in starch production, and also separating two-phase liquid-solid, recovering concentration or purifying, such as bleaching earth, recovering pulp, wastewater, etc.

    All the parts of the separator contacting the materials are made of stainless steel, therefore it meets the requirement of food hygiene.

    The design production and acceptance check have complied with JB/T6419 "Disc Starch Separator.

    Peony Starch Separator Centrifuge With High Speed And Continuous Nozzle Discharge


    Technical Parameters:
    ModelPDSS20-30
    Capacity (m3/h)20-30
    Motor power (KW)30
    DischargeNozzle continuous slagging
    Output pressure≤0.2
    Weight (KG)2150
    L(mm) × W(mm) × H(mm) Overall dim1720 × 1520 × 1760
    Note: The rated capacity is the capacity when starch paste concentration is 5-7°Be’
    Principle

    PDSS type separator mainly consists of the feed device, rotating drum, cover, the body, horizontal shaft, vertical shaft, groundwater pump, machine base, motor, and other components.

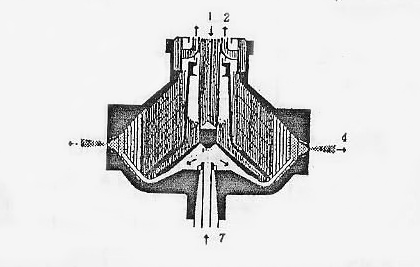

    When the rotating drum running at a high speed, when the material enters the disc separation area through the feeding pump (1), under the action of the centrifugal force field, the starch particles slip to the inside wall of the drum, discharge from the nozzle(4), and the light phase like protein and others will collect to the drum center, discharged out of the machine via centripetal pump(2).

    The machine has a washing bottom pump, the washing water into the drum from the vertical center hole(7), it is used for washing the yellow paste of the starch material, and effectively improves the quality of starch.


    Working Diagram
    Overall size and workflow diagram
    Installation drawing
    H*HB*BAKLabcd
    GB799-86
    n*m
    900*900740*740510460120-550-300+100+2504-M20*500

    Installation note:


    1. Need sufficient space to install and maintenance

    2. The installation foundation should be smooth and fixed.

    3. Between the foundation and frame, you have to install the vibration reducer gasket

    4. All pipes connected with the machine should be the hose.

    Guarantee:


    Peony Centrifuge has been dedicated to producing machinery and types of equipment and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
    We are committed to rewarding you with better quality in return for our interest in and faith in you.
    We will do our utmost for one more stepping forward, based on our infinite services and trust in customers.
