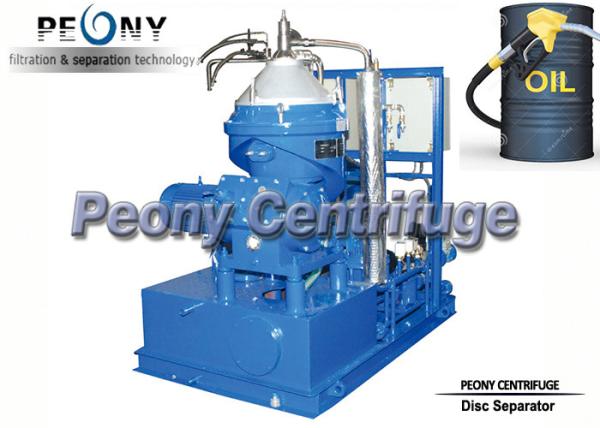

Peony Automatic Full Discharging 3 Phase Centrifugal Fuel Oil Separator

Description

Model PDSD3000-B1215Z Separator is mainly used to remove water and mechanical impurities from diesel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machine, and prolong engine life. The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.

The machine adopts automatic control, it has the advantages of high efficiency, low oil consumption, convenient operation and economic maintenance cost.

The clear oil and dirty water are pumped out by centripetal pump, the sludge is discharged automatically and fully.

Advantages

1. Automatic piston type slag removal

2. Modular design

3. Automatic operation

Automatic Control System

Water Control: Automatic control unlocking water, sealing water and water-seal/water switching.

Pneumatic Control: Filter and adjust compressed air, control three-way changeover pneumatic valve.

Temperature Control: Automatic control the temperature of the oil line, also control separately or with electric control cabinet at the same time.
Buzzer Control: Monitor oil temperature, pressure, over loading, non-discharging and leaking, and offer a group of passive contactor stretching out to control panel.

Main Technical Specification

Other oil capacity reference chart

Note: Reserve the right to change specifications without prior notification.

The Whole Unit Consists of

1. Separator 2. Screw pump 3.Electric control box 4. Steam heater 5. Temperature adjusting valve
6. High temperature ball valve 7. Steam trap 8. Temperature sensor 9. Pneumatic Three-way valve

10. Stop-check valve 11. Oil filter 12. Vacuum gauge 13. Pressure gauge

14. Air pressure reducing valve 15. 3/2 Solenoid valve 16. Ball valve 17. Brass filter ball valve

18. Water pressure reducing valve 19. 2/2 Solenoid valve 20. 2/2 Solenoid valve

21. Pressure switch 22Skid

More pictures

Principle and structure

Disc separator is vertical centrifuge. The drum is installed on the upper side of the vertical shaft. Driven by the motor, it will rotate at a high speed through the gearing. Inside the drum there is a group of dish parts overlaying each other – disc. There is very small gap between the disc. Suspension (or emulsion) is fed into the drum through the inlet in the middle of the drum. When the suspension (or emulsion) flows through the gap between the disc, under the action of the centrifuge, the solid particles (or droplets) go down to the disc in the formation of sediment (or liquid layer). Along the disc surface, the sediment slides out of the disc and accumulates at the part with the largest diameter inside the drum. After the separation, the liquid is discharge out of the drum from the drain outlet. The role of the disc is to reduce the sediment distance of solid particles (or droplets) and enlarge the sediment area of the drum. With the disc inside the drum, the capacity of the separator is improved greatly. The solid gathering inside the drum is manually removed by taking apart the drum after power off, or discharges from the drum through the slag-off part with the separator power on.
