    Pharmaceutical Scraper Bottom Discharge Centrifuge, Top Discharge Filter System

    Ask Lasest Price
    Brand Name : Peony
    Certification : ISO9001&ISO14001,CE
    Model Number : PPTD
    Delivery Time : 45 days
    Payment Terms : T/T
    Supply Ability : 30 sets/month
    • Product Details
    • Company Profile

    Pharmaceutical Scraper Bottom Discharge Centrifuge, Top Discharge Filter System


    Pharmaceutical Scraper Bottom Discharge Centrifuge

    Bag Lifting Top Discharge Filter System

    Model PPTD dewatering and drying centrifuge are Plate top discharge, intermittent operation filtrating equipment.


    The material is fed into the drum at the top; under the action of the centrifugal force field., the liquid-phase passes through the filter medium and the discharged out of the machine, while the solid phase material is retained inside the drum and, after the machine is stopped, the material is discharged

    from the top. The centrifuge has such features as simple structure, easy operation, no easy breakage

    of material as well as good versatility.


    The surface of the parts contacting the material is smooth, flat, easy to clean (or sterilize), corrosion-resistant. Non-reactive with medication and non-adsorptive.


    The centrifuge’s drum, class liner bag and exterior and interior of the casing have all

    undergone polishing treatment.The open hinged cover facilitates the discharging and maintenance.

    With the cover equipped with feed pipe, washing pipe, explosion proof lamp, wide angle vision glass, etc.

    (depends on client's needs) It is possible to monitor the whole process of feeding, separating and washing.


    Features

    • No-base installation
    • Reasonable design and new and simple structure
    • Basic platform is the work operation platform
    • Reduced labor and high efficiency
    • Simple operations and easy cleaning
    • Outside and inside surface of rotary drum is polished
    • All of fasteners are made of stainless steel
    • Transmission section is sealed with stainless steel
    • The whole machine meets GMP hygienic standards(Customerized)


    Main Technical Parameters

    Type

    Drum

    Power

    (kw)

    Weight

    (kg)

    Overall size

    (L × W × H)

    (mm)

    Diameter

    (mm)

    Volume

    (L)

    Capacity

    (kg)

    Speed

    (rpm)

    G-force

    PPTD-10

    300

    5

    10

    2500

    1050

    1.1

    180

    890 × 600 × 500

    PPTD-25

    450

    20

    25

    1900

    910

    1.5

    250

    980 × 650 × 870

    PPTD-50

    600

    40

    50

    1500

    756

    3

    800

    1300 × 880 × 900

    PPTD-135

    800

    100

    135

    1200

    645

    5.5

    1300

    1800 × 1200 × 1140

    PPTD-135-NA

    800

    100

    135

    1500

    1008

    7.5

    1300

    1800 × 1200 × 1140

    PPTD-200

    1000

    150

    200

    1000

    560

    7.5

    2000

    2050 × 1500 × 1220

    PPTD-200-NA

    1000

    150

    200

    1200

    806

    11

    2000

    2050 × 1500 × 1220

    PPTD-300

    1200

    250

    300

    800

    431

    11

    2500

    2350 × 1650 × 1370



    Product details



    Pharmaceutical Scraper Bottom Discharge Centrifuge, Top Discharge Filter System

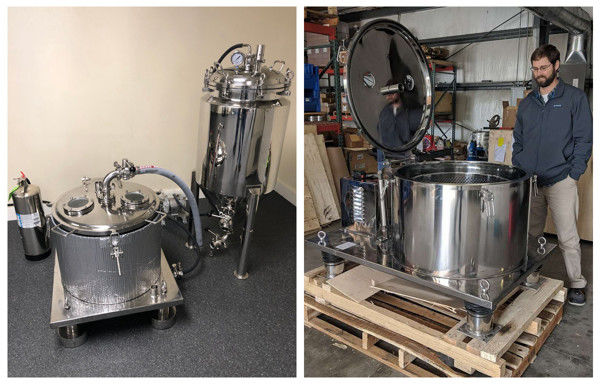

    Customer Site

    Pharmaceutical Scraper Bottom Discharge Centrifuge, Top Discharge Filter System


    Processing Equipment

    Pharmaceutical Scraper Bottom Discharge Centrifuge, Top Discharge Filter System


    Packing

    Pharmaceutical Scraper Bottom Discharge Centrifuge, Top Discharge Filter System
