    Large Volume Anti-abrasive Drilling Mud Centrifuge with Tiled Conveyor

    Ask Lasest Price
    Brand Name : Peony
    Certification : ISO
    Model Number : PDC, PNX
    Delivery Time : 60-75 days after down payment
    Payment Terms : TT,.LC, Western Union
    Supply Ability : 60 sets per month
    Price : USD20000-12000/SET FOB SHANGHAI
    • Product Details
    • Company Profile

    Large Volume Anti-abrasive Drilling Mud Centrifuge with Tiled Conveyor

    Large Volume Anti-abrasive Drilling Mud Centrifuge with Tiled Conveyor



    Competitive Advantages

    • Automatic continuous operation
    • Large capacity
    • Water level adjustable
    • Highest efficiency and lowest power consumption
    • PLC control
    • Screw conveyor: tiled.

    Specifications


    Model

    Diameter

    (mm)

    Speed (rpm)

    Length

    (mm)

    G-force

    Capacity

    (m3/h)

    Main motor Power

    (kW)

    Assistant

    motor power

    (kW)

    Weight

    (kg)

    Overall Size

    (L × W × H)

    (mm)

    PNX-414

    355

    4000

    860

    3175

    1~10

    18.5

    7.5

    2035

    2765 × 920 × 1060

    PDC-14

    355

    4000

    1160

    3175

    1~15

    22

    7.5

    2122

    3065 × 920 × 1060

    PNX-418

    355

    4000

    1460

    3175

    1~25

    22

    7.5

    2222

    3365 × 920 × 1060

    PDC-17-3

    420

    3600

    1290

    3042

    1~20

    22

    7.5

    2100

    2931 × 990 × 1066

    PDC-17-4

    420

    3600

    1680

    3042

    2~35

    22

    7.5

    2230

    3331 × 990 × 1066

    PDC-18-3.8

    450

    3500

    1720

    3080

    4~40

    37

    11

    3560

    4100 × 1120 × 1239

    PDC-18-4.4

    450

    3300

    2000

    2739

    4~50

    45

    Hydraulic

    3655

    4000 × 1120 × 1239

    PDC-20

    500

    3200

    2000

    2860

    5~45

    55

    11

    4213

    4489 × 1160 × 1350

    PDC-21

    540

    2800

    2000

    2366

    5~50

    55

    15

    5290

    4587 × 1285 × 1368



    Applications


    Drilling mud is an integral part of most drilling operations, it is also called drilling fluid, there are some solids suspended in the fluid


    Peony Decanter Centrifuge can provide solid-liquid separation technology to your drilling mud application, enabling reuse of the material and more efficient and cost-effective disposal. We have our special design and collocation decanter centrifuge for oilfield and industrial solids control, drilling fluid/mud cleaning, and process water treatment.


    Peony Decanter centrifuges are used to process water-based and oil-based drilling fluids. Oilfield Decanter centrifuges mechanically increase the gravitational force exerted on the liquid and solids mixture present in the mud system. We can apply over 3,000 G-forces machines to separate the particles in the fluid


    Peony Decanter centrifuges have a wide process capacity to meet all ranges as per the drilling program. It is commonly and widely used for oilfield and gas well operations providing efficient solids control while significantly reducing the operator's total mud cost and minimizing waste disposal volumes.

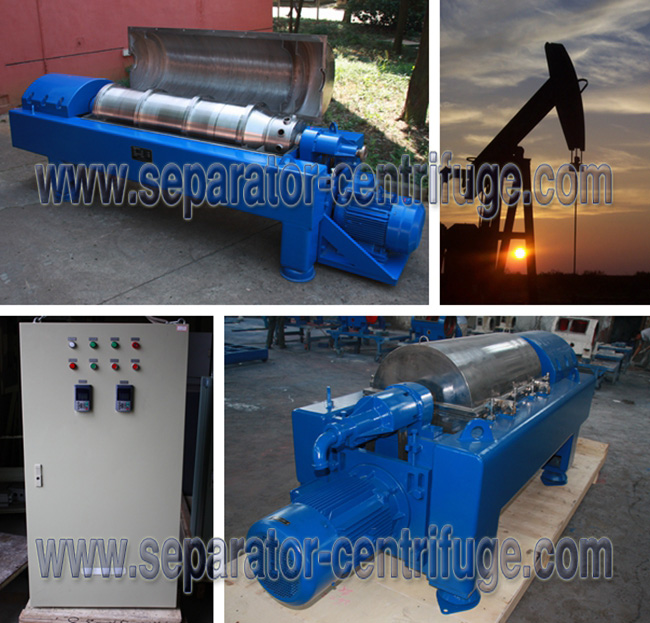

    More pictures



    Guarantee


    Peony Centrifuge has been dedicated to producing machinery and types of equipment and carrying out facility construction, pursuing the best quality and producing the best product at the same time. We are committed to rewarding you with better quality in return for our interest in and faith in you. We will do our utmost for one more step forward, based on our infinite services and trust in customers.
