    Oil Field 3phase Continuous Horizontal Decanter Centrifuges for Solid Liquid Separation Made in China

    Ask Lasest Price
    Brand Name : Peony
    Certification : ISO9001&ISO14001,CE
    Model Number : PDC-W&PDC
    Delivery Time : 60-75days
    Payment Terms : T/T, L/C
    Supply Ability : 60sets per month
    • Product Details
    • Company Profile

    Oil Field 3phase Continuous Horizontal Decanter Centrifuges for Solid Liquid Separation Made in China

    Description

    Palm oil is popular in demand throughout the world. It plays a very important role in the food industry The valuable oil has also adopted in the production of soap,candles, cosmetics,biodiesel etc.Palm oil is obtained from the fruit of the palm fruits.the main producer countries are Malaysia,Indonesia,Columbia and Africa countries with tropical climate.The oil is processed whole the year and they are in non stop operations.


    Competitive Advantages

    • High rotation speed,high G force,big length -diameter ratio.
    • Big capacity
    • Low vibration,low noises strong afford capacity
    • Single operation and control
    • Corrosion resistant an resistant key parts
    • Max product yield
    • Famous and reliable electrical components

    Specification

    Model

    Drum

    G-force

    Capacity

    (m3/h)

    Max solid

    discharge

    (m3/h)

    Power

    (kw)

    Weight

    (kg)

    Overall size

    (L×W×H)

    (mm)

    Diameter

    (mm)

    Speed

    (rpm)

    Length

    (mm)

    Length-to-diameter

    rate

    PDC-10-W

    250

    5400

    1000

    4

    4080

    0.5~5

    0.4

    11/4

    1000

    2410 × 800 × 1080

    PDC-12-4-W

    300

    4200

    1200

    4

    3500

    1~5

    0.6

    11/4

    1200

    2610 × 800 × 1080

    PDC-12-4.5-W

    300

    4200

    1350

    4.5

    3000

    1~10

    0.8

    11/4

    1400

    2760 × 800 × 1080

    PDC-14-W

    355

    4000

    1600

    4.5

    3180

    1~20

    1.2

    18.5/7.5

    1800

    3495 × 840 × 1180

    PDC-16-W

    400

    3650

    1800

    4.5

    3000

    2~25

    2

    22/7.5

    2500

    3890 × 1020 × 1205

    PDC-18-4.4-W

    450

    3200

    2000

    4.4

    2600

    3~35

    2.8

    30/11

    3000

    4297 × 1080 × 1385

    PDC-18-4.8-W

    450

    3200

    2150

    4.8

    2600

    4~40

    3

    37/11

    3200

    4447 × 1080 × 1385

    PDC-20-4-W

    500

    3000

    2000

    4

    2500

    5~45

    3.2

    37/11

    3800

    4330 × 1140 × 1470

    PDC-20-4.5-W

    500

    3000

    2250

    4.5

    2500

    8~50

    3.5

    45/15

    4000

    4580 × 1140 × 1470

    PDC-21-W

    530

    2900

    2280

    4.3

    2500

    15~65

    5

    55/15

    5000

    4924 × 1170 × 1540

    PDC-23-W

    580

    2780

    2500

    4.3

    2500

    20~80

    6.5

    75/18.5

    6500

    5205 × 1270 × 1540

    PDC-26-W

    650

    2500

    2800

    4.3

    2270

    25~110

    8

    75/18.5

    7000

    4300 × 1900 × 1350


    Separation principle

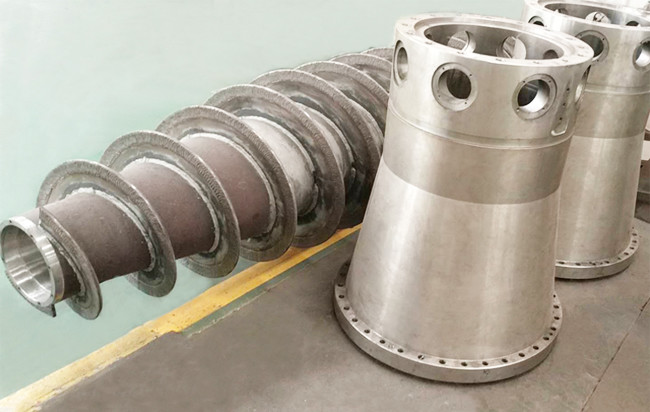

    Palm oil decanter centrifuge is a horizontal separating decanter with a cylindrical-conical solid wall bowl for the continuous separation of solid and liquid.


    The solid-wall bowl has a cylindrical section for efficient separation and clarification of the liquid. The product enters the decanter through the feed tube and passes through the distributor into the centrifugation space. The liquid level in the bowl is adjustable via regulating plates.


    Due to the centrifugal forces, the solid particles are forced to the bowl wall and are transported by the decanter scroll to the solids outlet.The liquids are separated in the separation zone And discharge


    Applications

    • Beverage technology
    • Dairy technology
    • Oil and facts processing
    • Chemicals,pharmaceuticals biotechnology and mineral processing
    • Oils and fats recovery
    • Starch technology
    • Environmental waste water treatment
